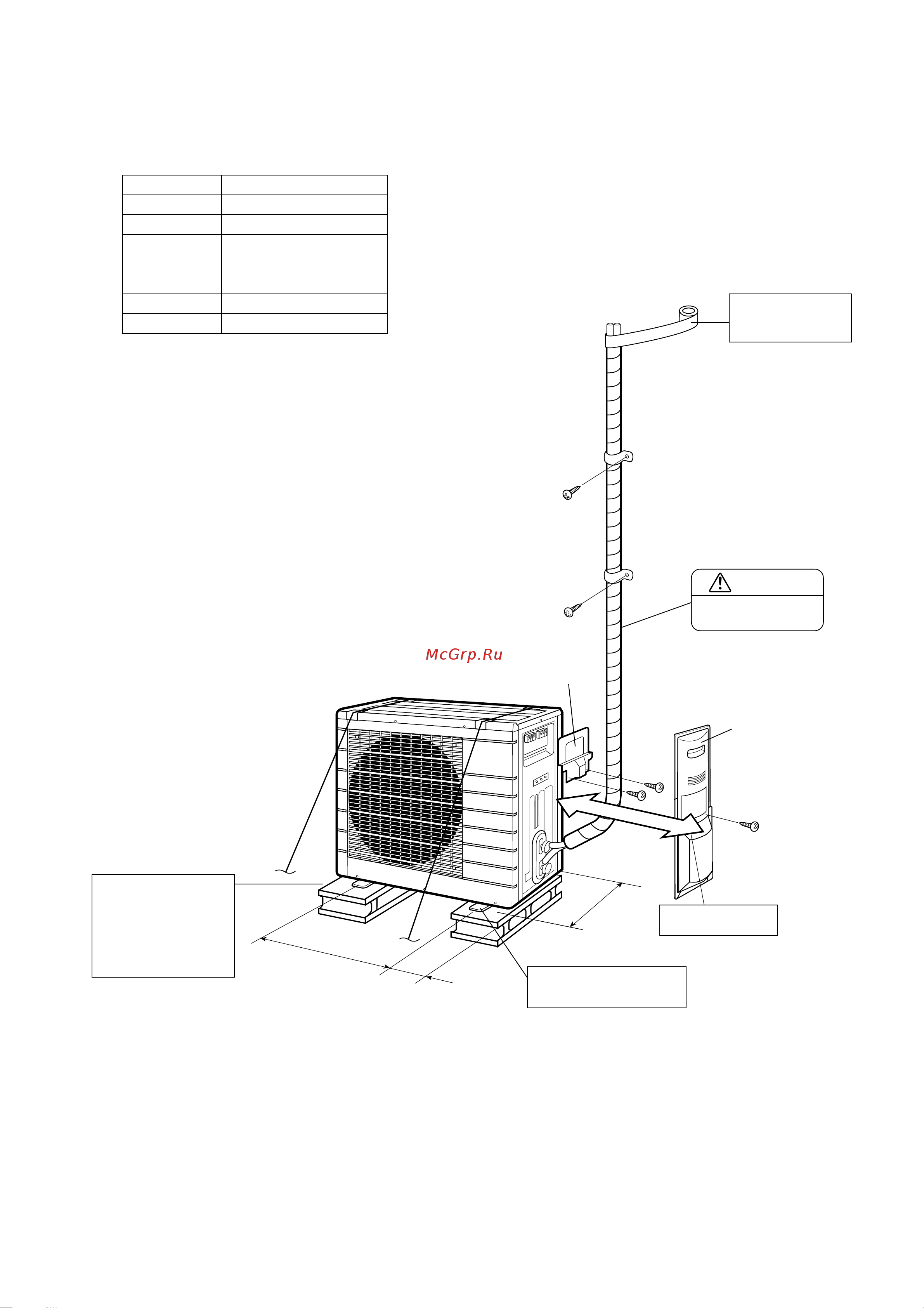

nEnglish 3
English
Outdoor Unit
Installation Drawings
(Foot bolt-hole
centres)
330mm
Allow space for piping
and electrical servicing.
250mm from wall
CAUTION
**Set the piping length
from 1.5m to 20m.
Wrap the insulation
pipe with the finishing
tape from bottom to top.
Stop valve cover
Service lid
Where there is a danger of
the unit falling, use foot bolts,
or wires.
In sites with poor drainage,
use block bases for outdoor
unit.
Adjust foot height until the
unit is leveled. Otherwise,
water leakage or pooling of
water may occur.
(Foot bolt-hole centres)
580mm
120mm
(From unit’s side)
Max. allowable height
Min. allowable length
Max. allowable length
20m
1.5m
15m
Liquid pipe
Gas pipe
O.D. 6.4mm
O.D. 12.7mm
20g/m
Additional refrigerant
required for refrigerant
pipe exceeding 10m
in length.
**
*
*
Be sure to add the proper amount of additional refrigerant.
Failure to do so may result in reduced performance.
**
The suggested shortest pipe length is 1.5 m, in order to avoid
noise from the outdoor unit and vibration.
(Mechanical noise and vibration may occur depending on how
the unit is installed and the environment in which it is used.)
