Installation Guidelines

• Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airflow, follow the installation guidelines below.

• For any of the below installation patterns, the wall height on the exhaust side should be 1200mm or less.

Precautions on Installation

• Check the strength and level of the installation ground so that the unit will not cause any operating vibration or noise after installed.

• In accordance with the foundation drawing, fix the unit securely by means of the foundation bolts. (Prepare four sets of M8 or M10

foundation bolts, nuts and washers each which are available on the market.)

• It is best to screw in the foundation bolts until their length are 20mm from the foundation surface.

Outdoor Unit Installation

1. Installing outdoor unit.

1) When installing the outdoor unit, refer to “Precautions for Selecting the Location” and the “Outdoor Unit Installation Draw-

ings.”

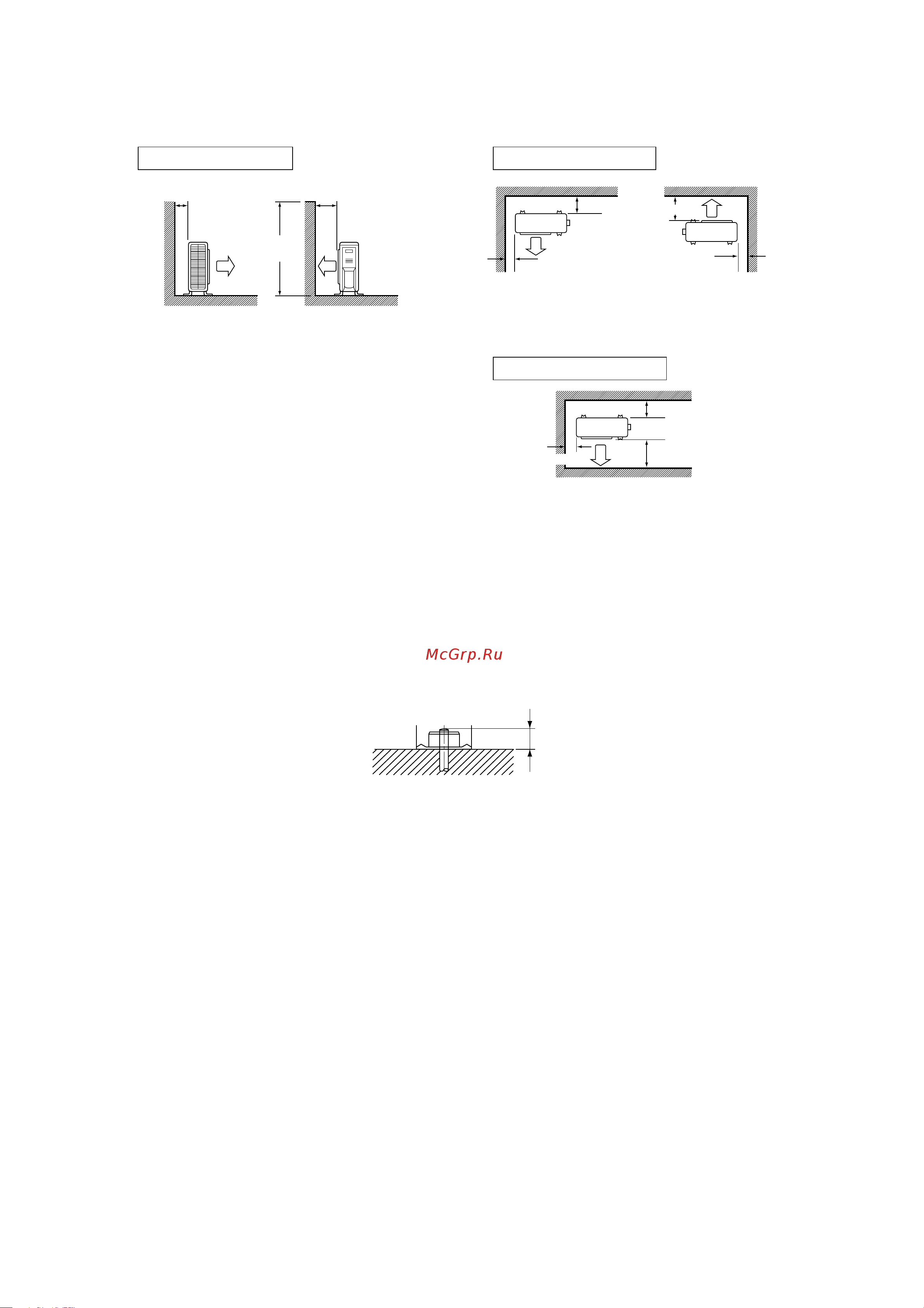

Wall facing one side

More than 100 More than 350

Side view

1200

or less

More than 50 More than 50

Top view

than 100

Walls facing two sides

More than 350

Top view

Unit: mm

More than 100

More than 350

More than 50

Walls facing three sides
