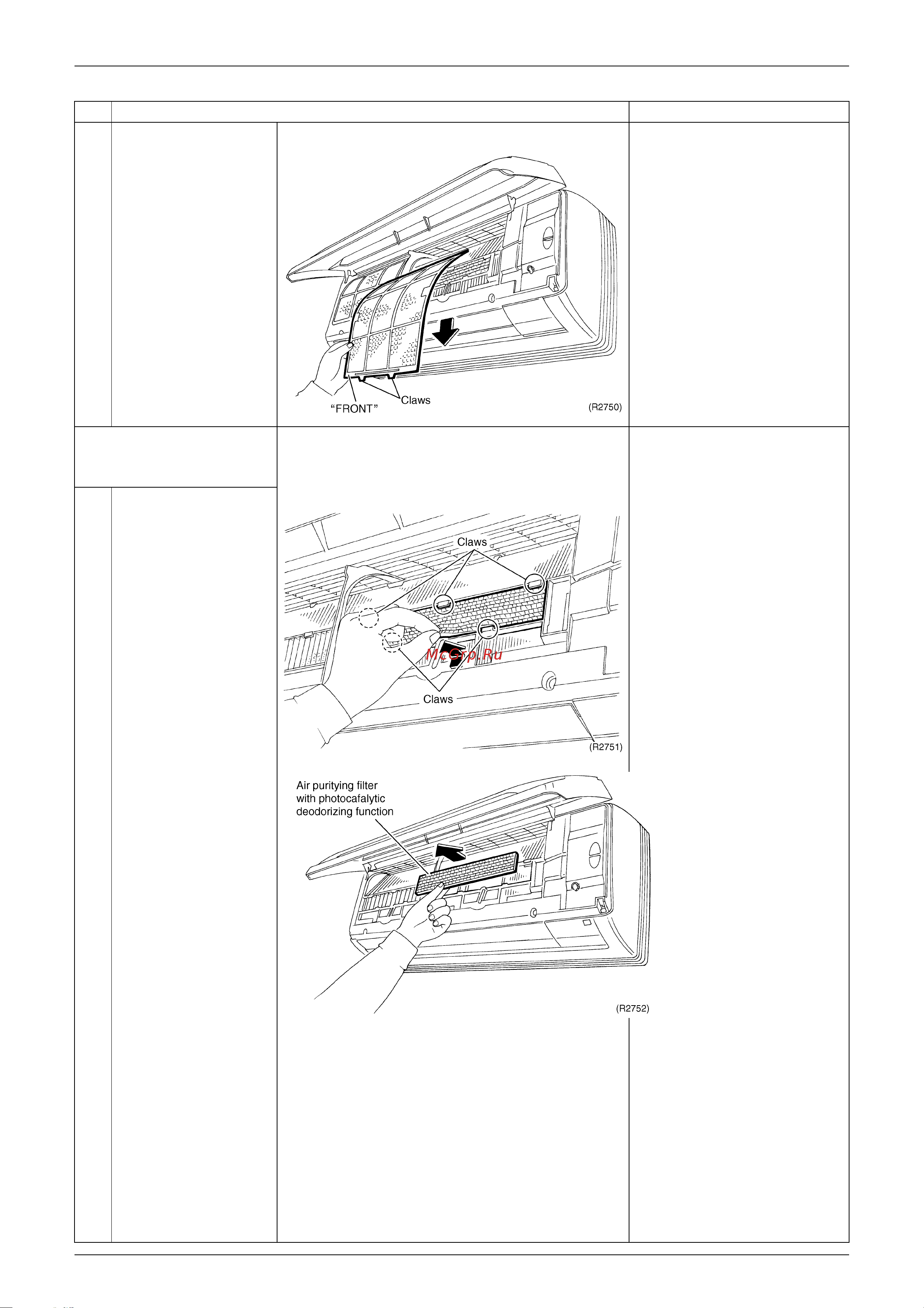

Si04-306 Indoor Unit
Removal Procedure 137
The right and left filters are
interchangeable.
Insert the air filters along
grooves when installing.
Set the air filters with
displaying “FRONT” on the
front side.
Insert two claws of the air
filter completely.
3. Remove an “air purifying
filter with photocatalytic
deodorizing function”.
1
Push up the bottom of
an air purifying filter to
undo the claws (2 on
lower, 3 on upper) and
take the filter out.
The right and left filters are
interchangeable.
Step
Procedure Points
