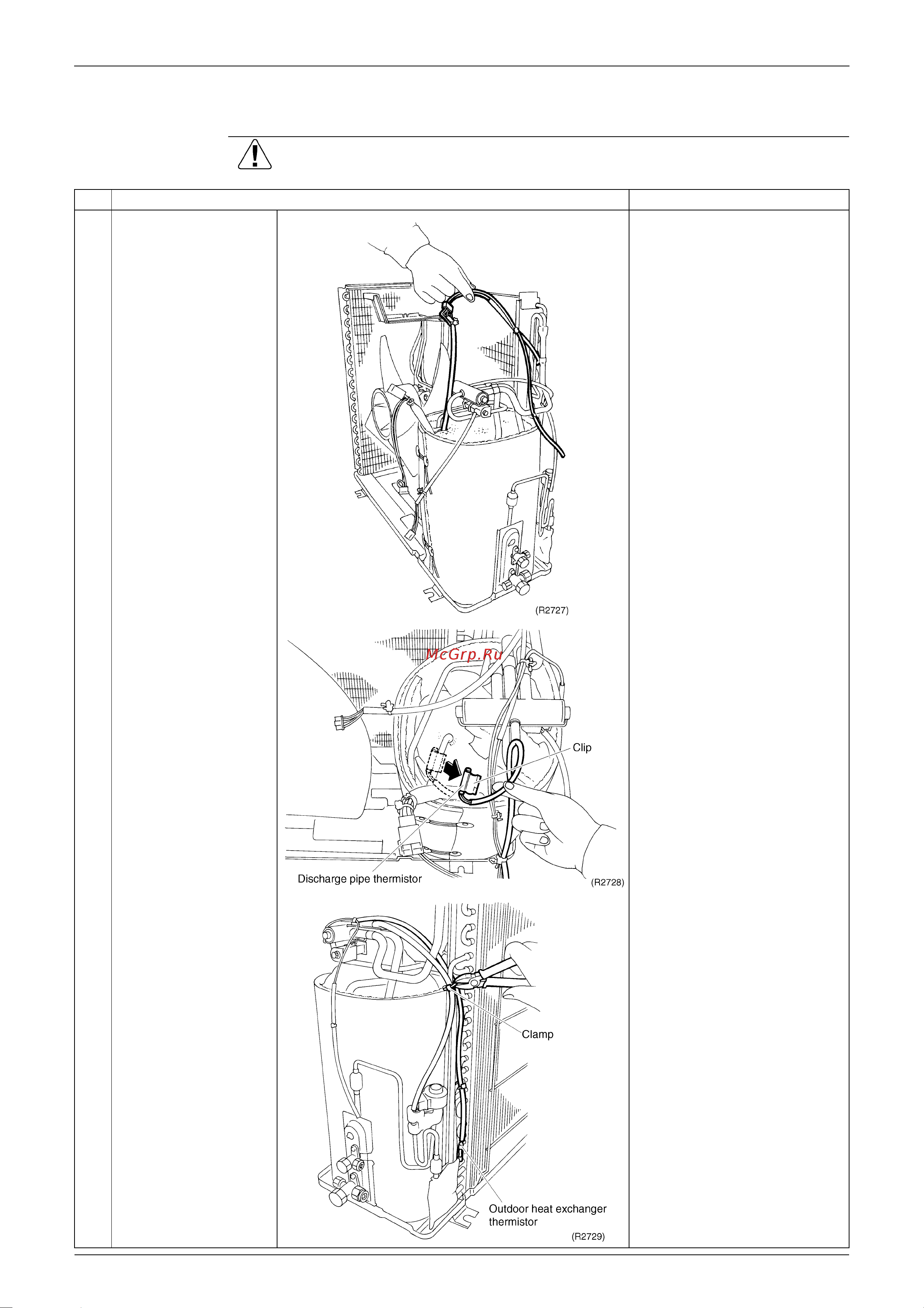

Outdoor Unit Si04-306
172 Removal Procedure
2.5 Removal of the Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Disconnect the harness
of each thermistor.
2
Release the discharge
pipe thermistor.
Pay attention to the direction
of the clip so as not to touch
the lead wire of the
thermistor when
reassembling.
3
Cut the clamp by
nippers.
Disconnect the outdoor
heat exchanger
thermistor.
Clamps should be always
available.
Fix it as it was before.
