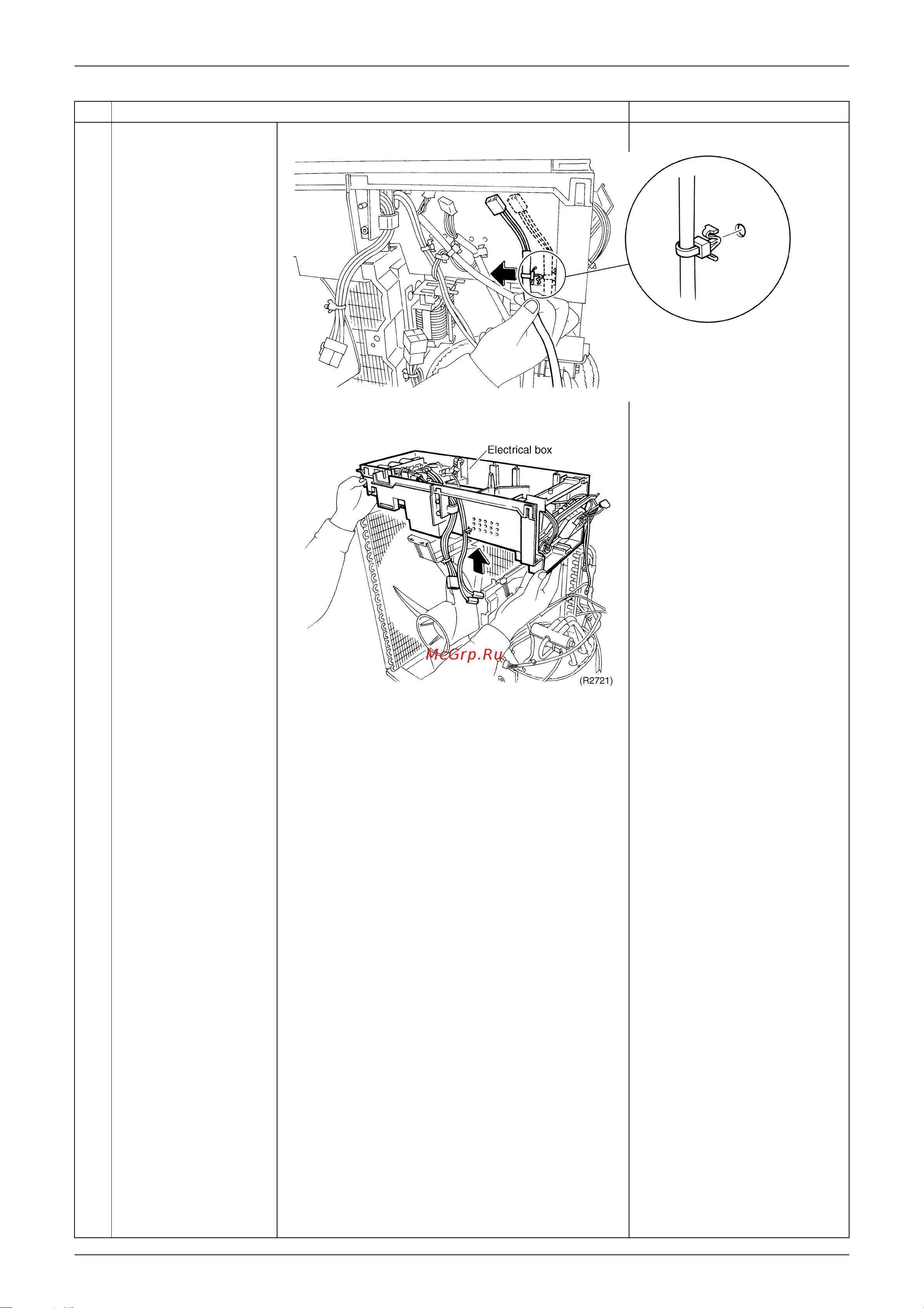

Daikin FTKD18BVMS [178/210] Lift the electrical box and remove it
![Daikin RKD60BVM [178/210] Lift the electrical box and remove it](/views2/1773524/page178/bgb2.png)
Si04-306 Outdoor Unit
Removal Procedure 169
16
Release the clamp of
the four way valve
harness.
17
Lift the electrical box
and remove it.
Step
Procedure Points
(R2720)
