Si04-306 Instruction
System Configuration 71

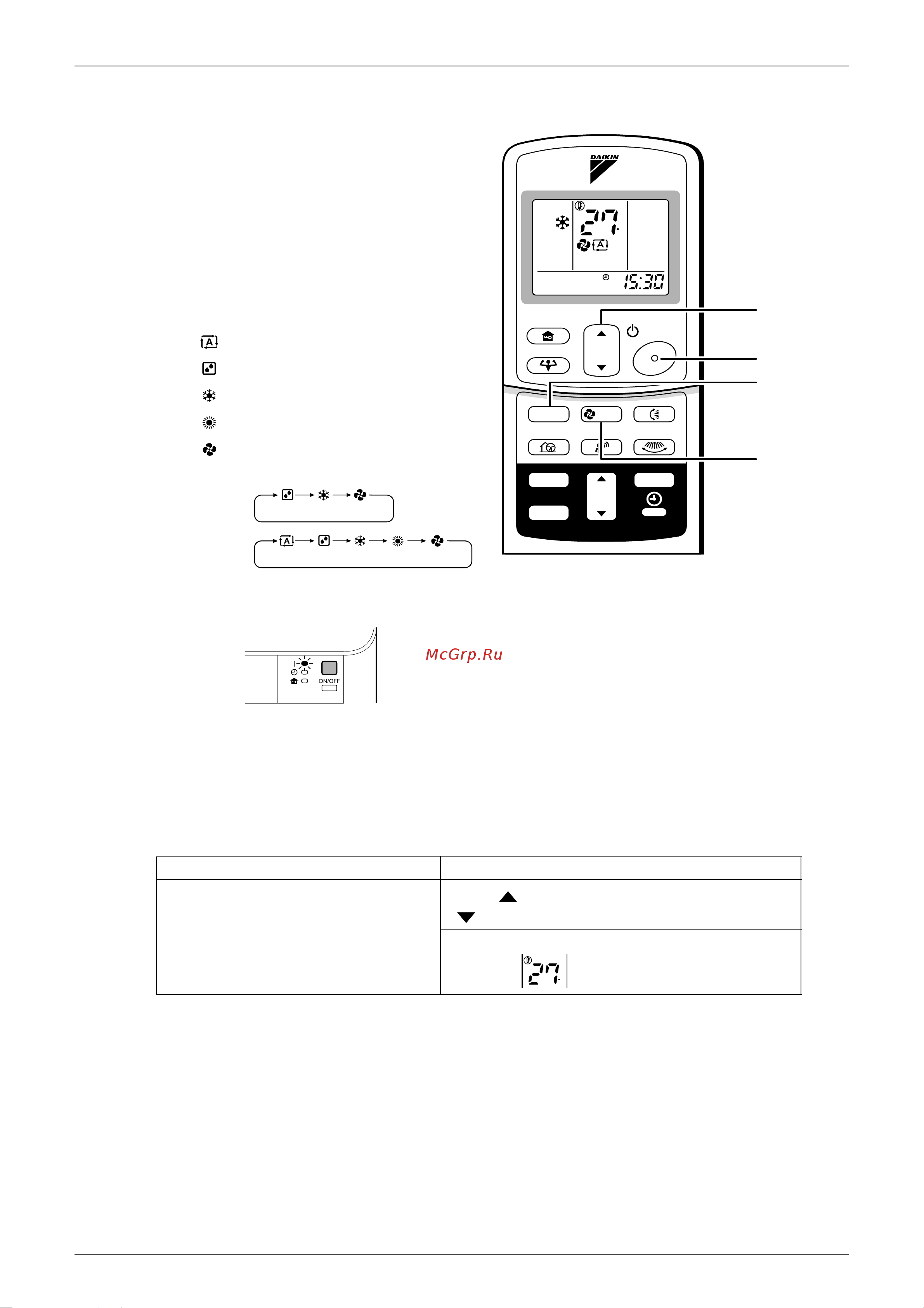

2.4 AUTO · DRY · COOL · HEAT · FAN Operation
10
The air conditioner operates with the operation mode of your
choice.
From the next time on, the air conditioner will operate with the
same operation mode.
■
To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances the
mode setting in sequence.
:AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button”.
• The OPERATION lamp lights up.
■
To stop operation
3. Press “ON/OFF button” again.
•
Then OPERATION lamp goes off.
■
To change the temperature setting
4. Press “TEMPERATURE adjustment button”
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Press “
” to raise the temperature and press
“
” to lower the temperature.
Set to the temperature you like.
C
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SILENT
SWING
ON
CANCEL
OFF
SENSOR
2, 3
1
4
5
<FTKD>
<FTXD>
C
