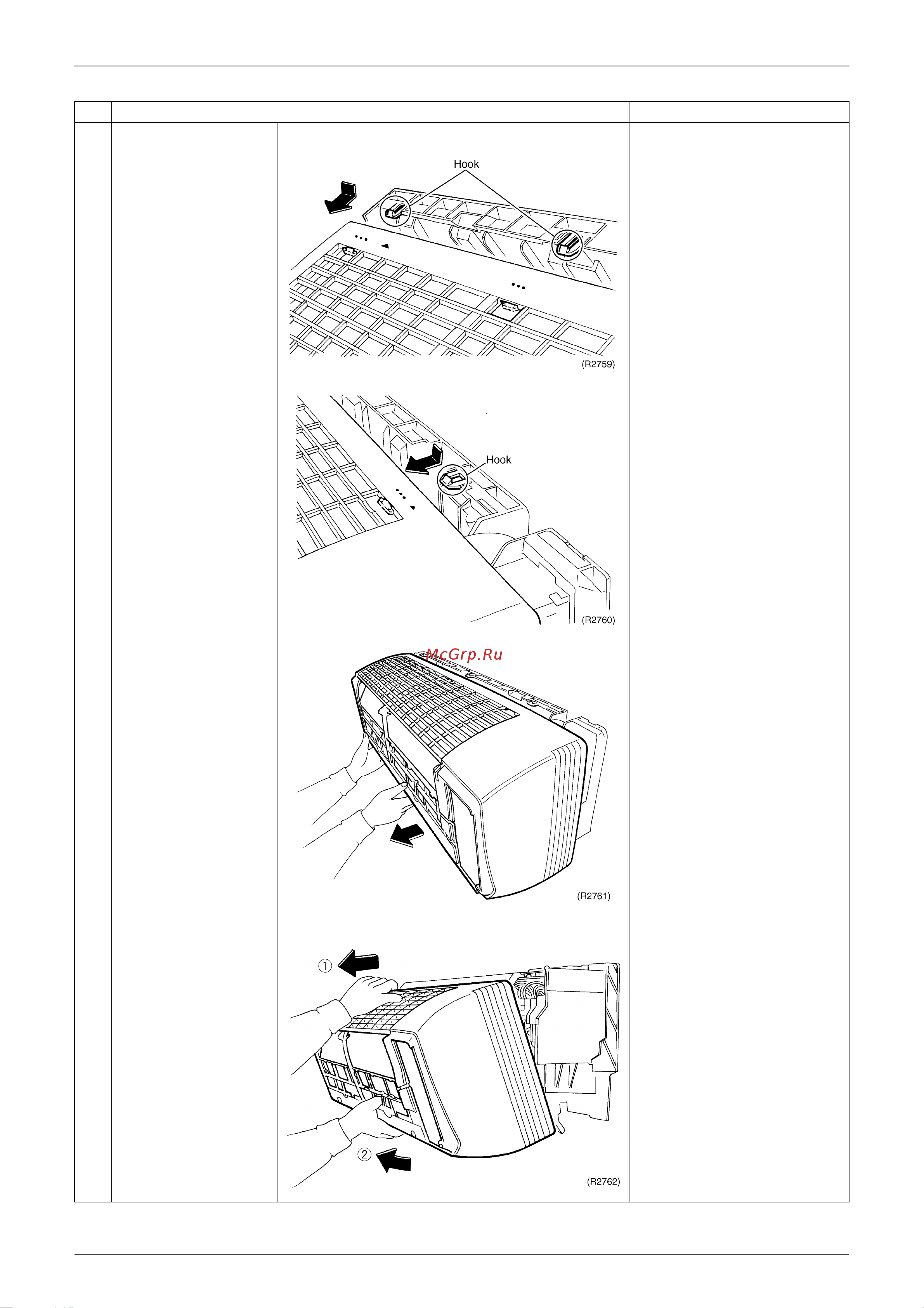

Indoor Unit Si04-306
140 Removal Procedure
2
Undo the three hooks
on the top of the front
grille.
The front grille has three
hooks on the center and the
both sides of the upper part.
Refer to the removal
procedure in a reverse way
when reassembling.
3
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.
Make sure that all the hooks
are placed securely when
reassembling.
Step
Procedure Points
