Outdoor Unit Si04-306
166 Removal Procedure
9

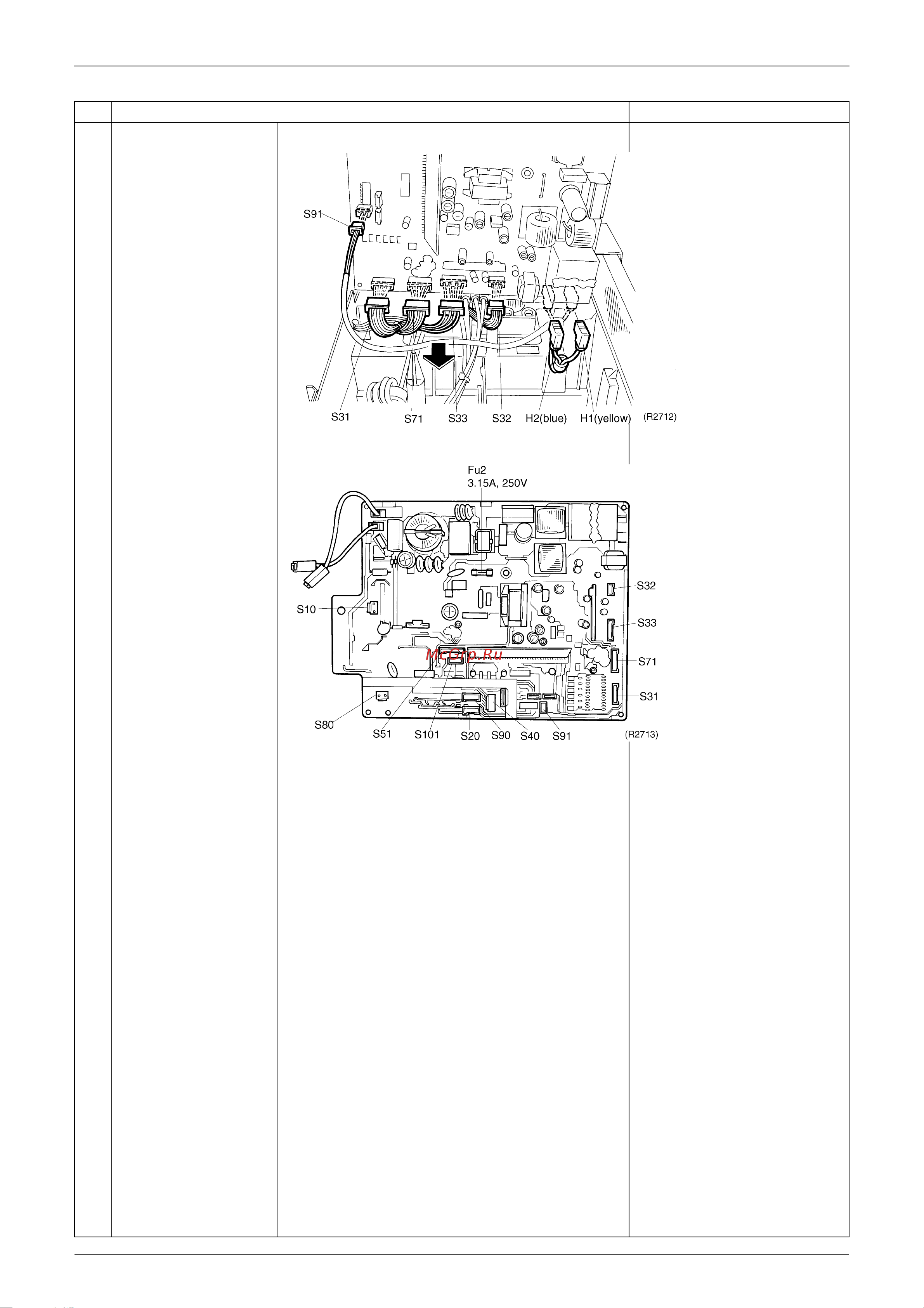

Disconnect the
connectors.
S31: to the SPM
S32: to the SPM
S33: to the MID
S71: to the MID
S91: fin thermistor
10
Control PCB (outdoor
unit)
S10: to the terminal
strip
S20: electronic
expansion valve
S31: to CN14 of the
SPM
S32: to CN11 of the
SPM
S33: to S34 of the MID
S40: overload protector
S51: to S52 of the
service monitor PCB
S71: to S72 of the MID
S80: four way valve
S90: thermistors
(discharge pipe,
outdoor air,
heat exchanger)
S91: fin thermistor
S101: to S102 of the
service monitor PCB
Step
Procedure Points
