• Split Sky Air • Outdoor Units 12
• Outdoor Units • R-410A • RKH-CAVMB

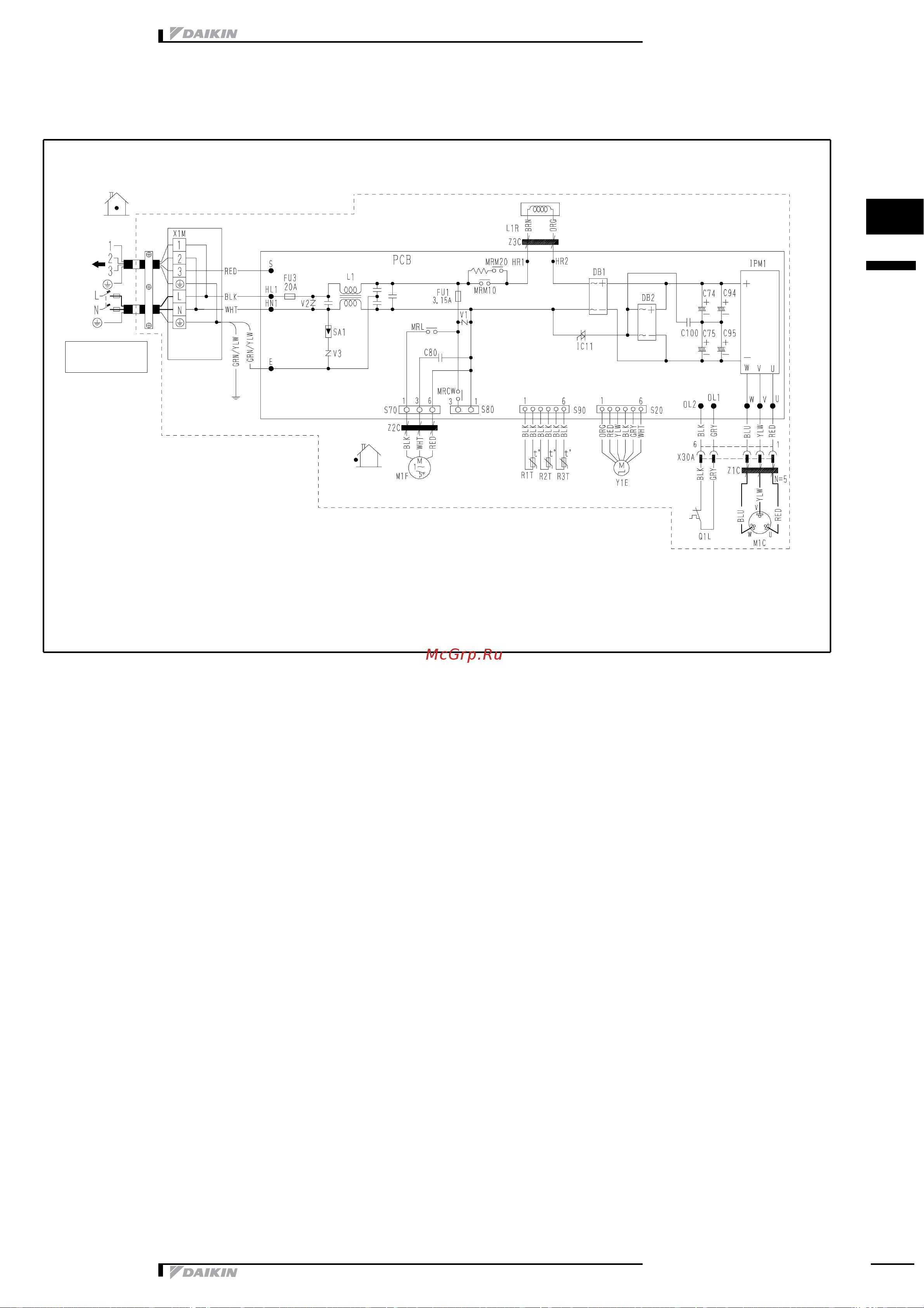

8Wiring diagram
8 - 1 Wiring diagram
3D042577A
RKH20,25,35C
NOTE
1. Refer to the name plate for the power requirements.
R
: Protective earth
X1M : Terminal strip
C74, C75, C80
C94, C95, C100 : Capacitor
DB1, DB2 : Diode bridge
FU1, FU3 : Fuse
L : Live
L1 : Coil
L1R : Reactor
M1C : Compressor motor
M1F : Fan motor
PCB : Printed circuit board
MRCW, MRL,
MRM10, MRM20 : Magnetic relay
N : Neutral
Q1L : Overload protector
R1T, R2T, R3T, : Thermistor
S20, S75, S80, S90 : Connector
SA1 : Surge arrester
Z1C, Z2C, Z3C : Ferrite core
IC11 : Solid state relay
IMP1 : Intelligent power module
V1, V2, V3 : Varistor
Y1E : Electronic expansion valve coil
g
Field wiring
Indoor
Outdoor
(outdoor)
(Condenser)
(discharge)
