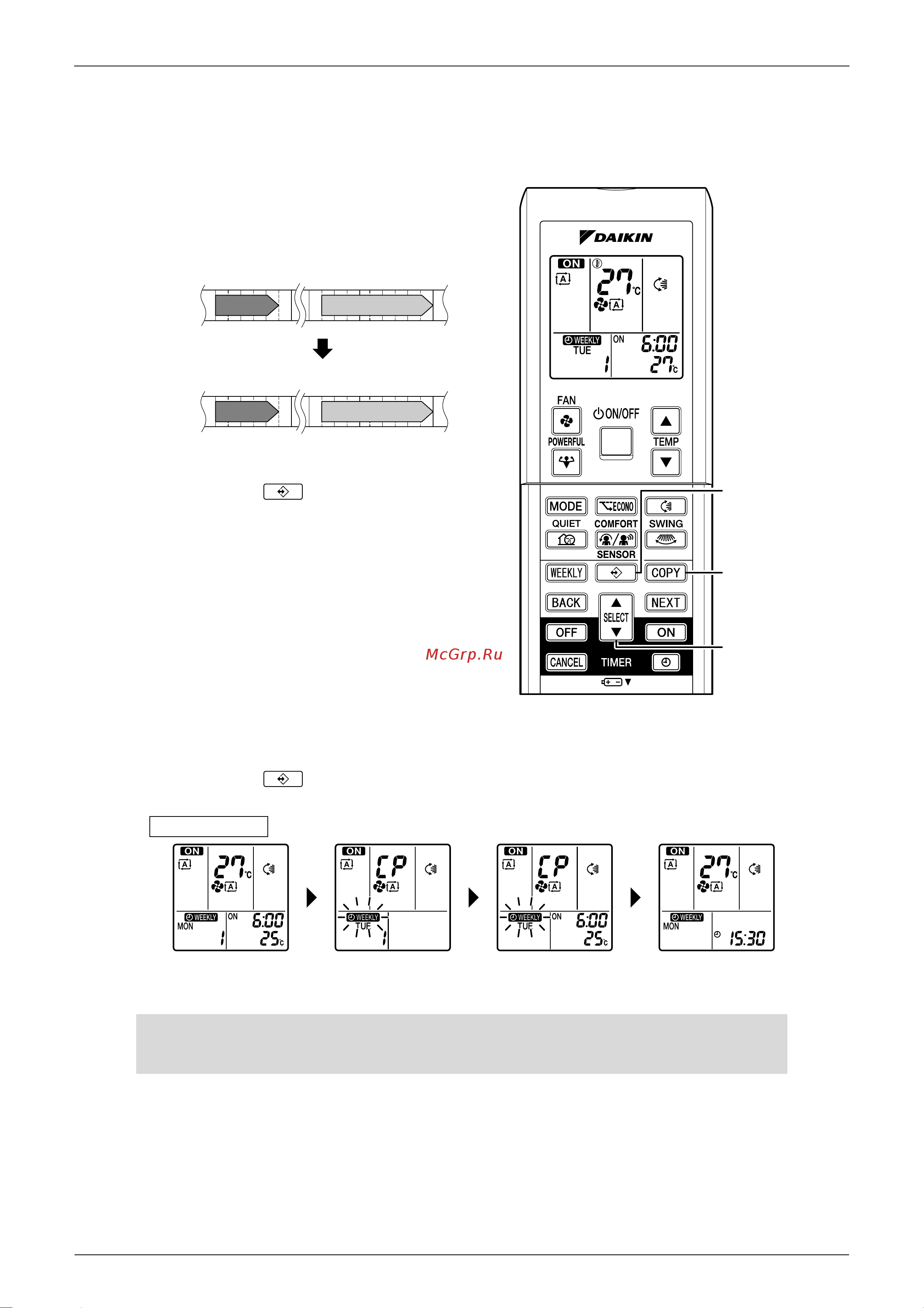

Instruction SiBE12-933_A
148 Operation Manual
Using copy mode
• A reservation made once can be easily copied
and the same settings used for another day of the
week.
1. Press “ button”.
2. Press “SELECT button” to
confirm the day of the week to be
copied.
3. Press “COPY button”.
• This activates copy mode.
• Copy whole reservation of the selected day of
the week.
4. Press “SELECT button” to select
the destination day of the week.
5. Press “COPY button”.
• The reservation will be copied to the selected day of the week. The whole reservation of the
selected day of the week will be copied.
• To continue copying the settings to other days of the week, repeat STEP 4 and STEP 5.
6. Press “ button”.
• Exit copy mode.
NOTE
COPY MODE
• The entire reservation of the source day of the week is copied in the copy mode.
Detailed settings can be made after the copy is completed.
[Monday]
Program 1
ON
Program 2
OFF
Program 3
ON
Program 4
OFF
6:00 8:30 17:30 22:00
25°C 27°C
Program 1
ON
Program 2
OFF
Program 3
ON
Program 4
OFF
6:00 8:30 17:30 22:00
25°C 27°C
[Tuseday]
to
[Friday]
COPY
1, 6
3, 5
2, 4
Setting Screens
Confirmation screen Copy screen Paste screen Normal screen
