Daikin ATX20GV1B [61/289] Pcb detail pcb 1 control pcb a1p
![Daikin ATX35GV1B [61/289] Pcb detail pcb 1 control pcb a1p](/views2/1770002/page61/bg3d.png)
SiBE12-933_A Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 51

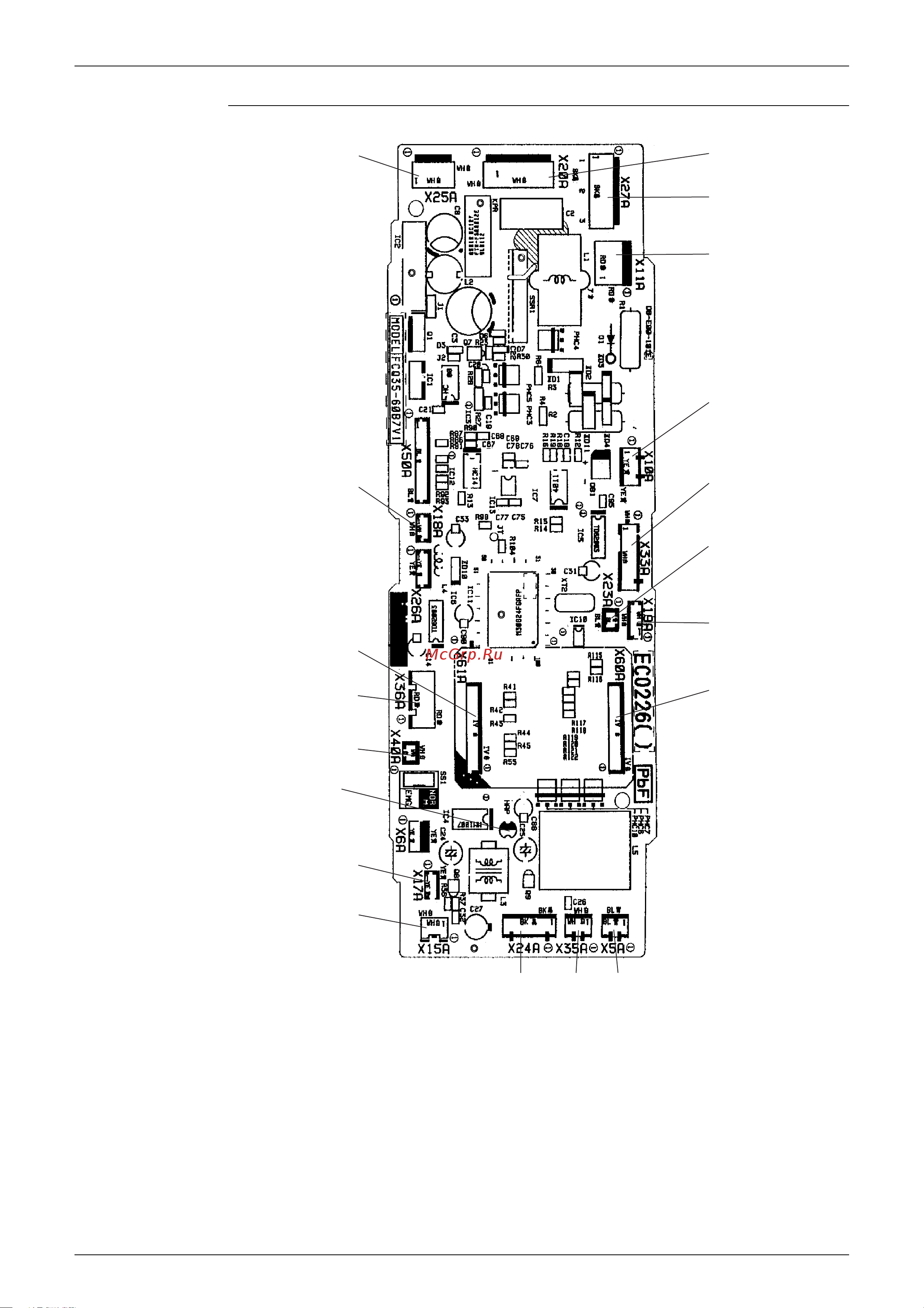

PCB Detail PCB (1): Control PCB (A1P)
2P095006
X25A
X20A
X18A
X27A
X11A
X10A
X33A
Capacity
setting
adaptor
X19A
X60A
X61A
X36A
X40A
HAP
(Service
monitor LED)
X17A
X15A
X24A X35A X5A
