Outdoor Unit SiBE12-933_A
238 Removal Procedure

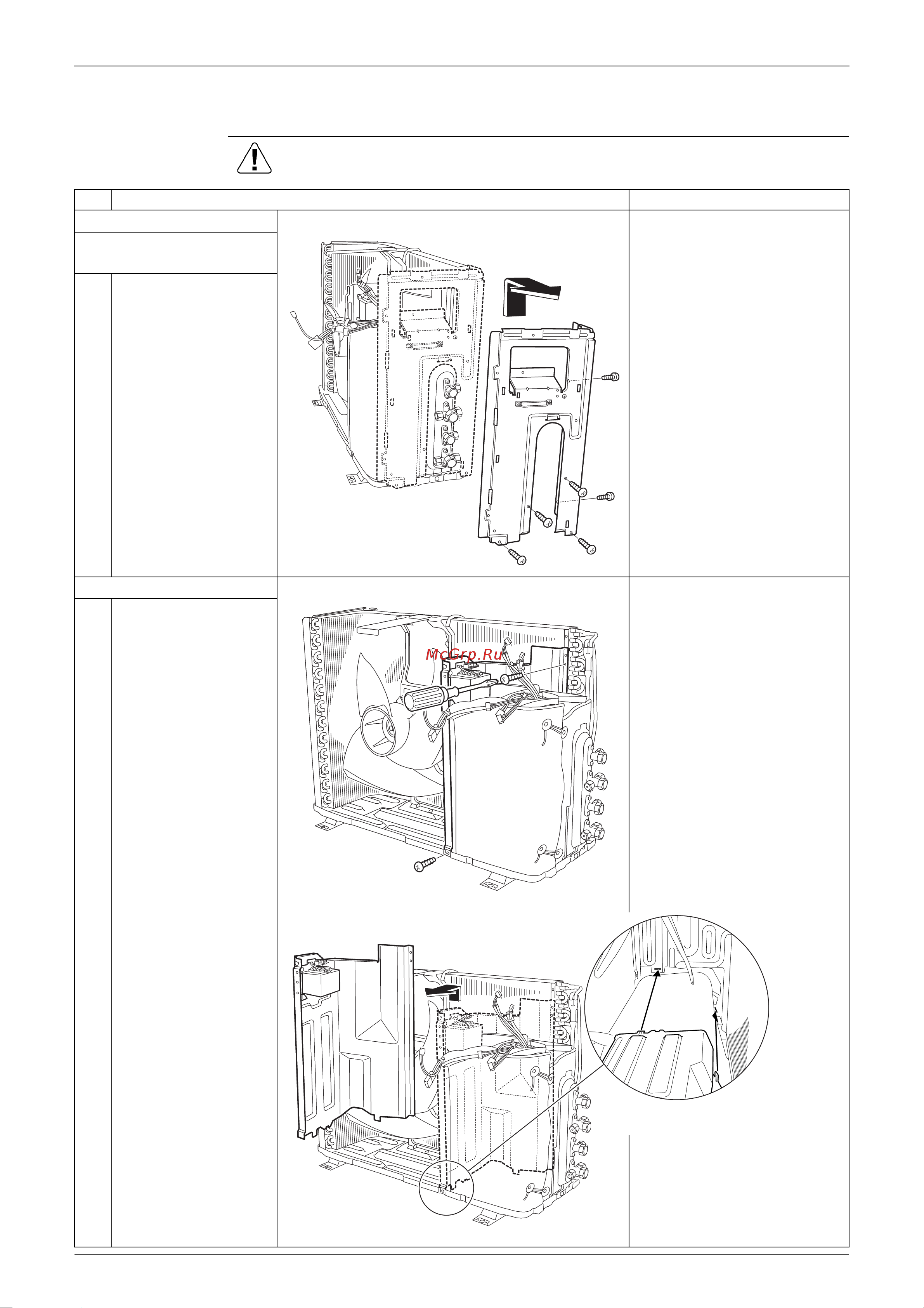

1.4 Removal of the Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the electrical box
1. Remove the right side
panel
1
Remove the 6 screws
to remove the right side
panel.
2. Remove the partition plate
When assembling, make
sure to catch the lower hook
of the partition plate.
1
Remove the 2 screws
to remove the partition
plate.
2
Since there are hooks
on the partition plate, lift
up once and pull out
toward yourself to
remove it.
(R7610)
(R7611)
(R7612)
Remove the screw of the
reactor and remove it.
