3 ■English

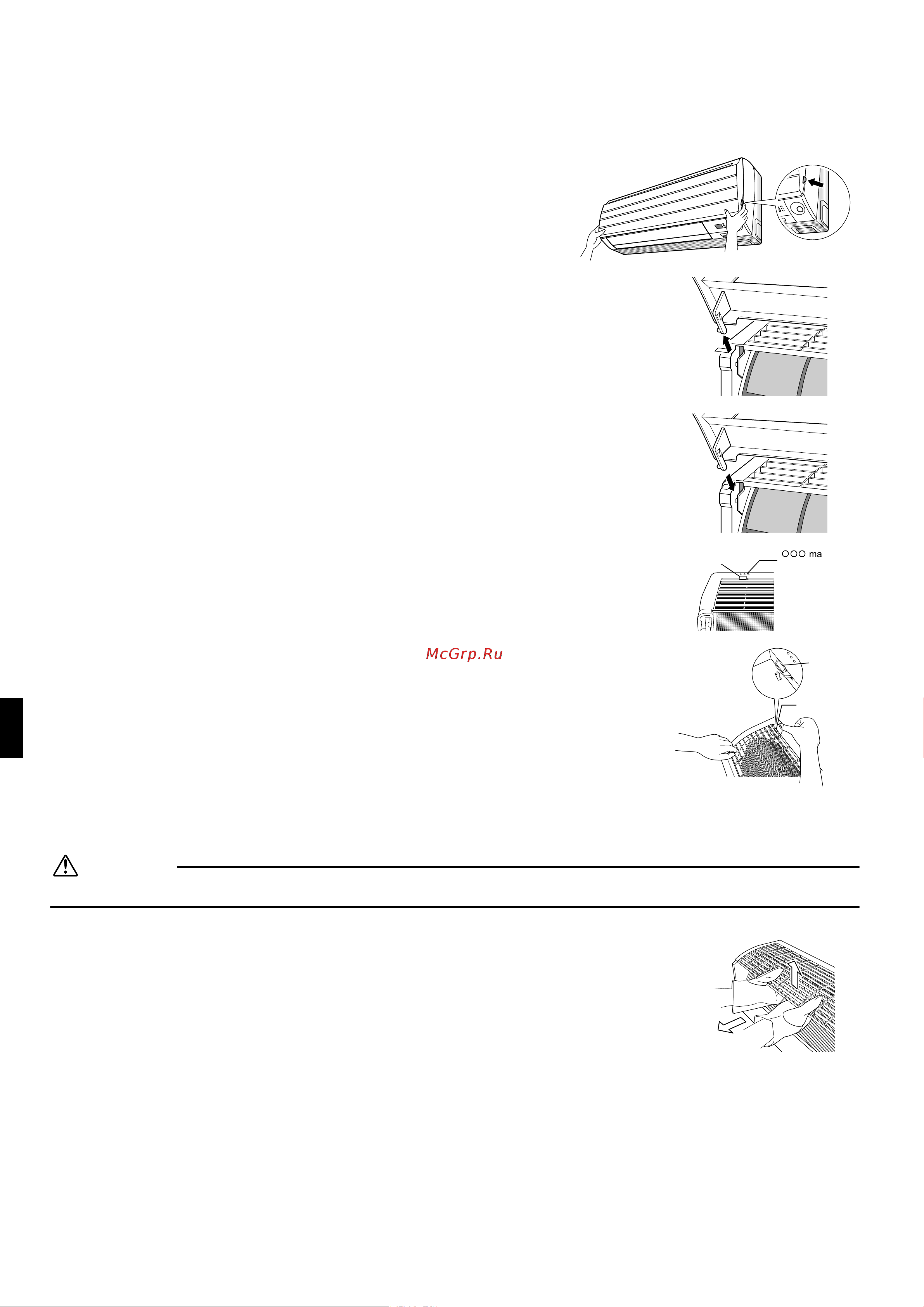

Installation Tips
1.
Removing and installing front panel.
• Removal method
Hook fingers on the panel protrusions on the left and right of the main
body, and open until the panel stops. Slide the front panel sideways to dis-
engage the rotating shaft. Then pull the front panel toward you to remove
it.
• Installation method
Align the tabs of the front panel with the grooves, and push all the way in. Then close
slowly. Push the center of the lower surface of the panel firmly to engage the tabs.
2.
Removing and installing front grille.
• Removal method
1) Remove front panel to remove the air filter.
2) Remove the front grille.
3) In front of the {{{ mark of the front grille, there are 3 upper hooks. Lightly pull the
front grille toward you with one hand, and push down on the hooks with the fingers
of your other hand.
When there is no work space because the unit is close to ceiling
CAUTION
Be sure to wear protection gloves.
Place both hands under the center of the front grille, and while pushing up, pull it toward you.
• Installation method
1) Install the front grille and firmly engage the upper hooks (3 locations).
2) Install 2screws of the front grille.
3) Install the air filter and then mount the front panel.
Push the
rotating shaft
of the front
panel into the
groove.
¡¡¡
mark area
(3 locations)
Upper hook
Lightly pull the front
grille toward you with
one hand, and push
down on the hooks with
the fingers of your other
hand. (3 locations)
Push
down.
Upper hook
Upper hook
1) Push up.
2) Pull toward you.
01_EN_3P207052-2A.fm Page 3 Monday, December 1, 2008 11:40 AM
