3.

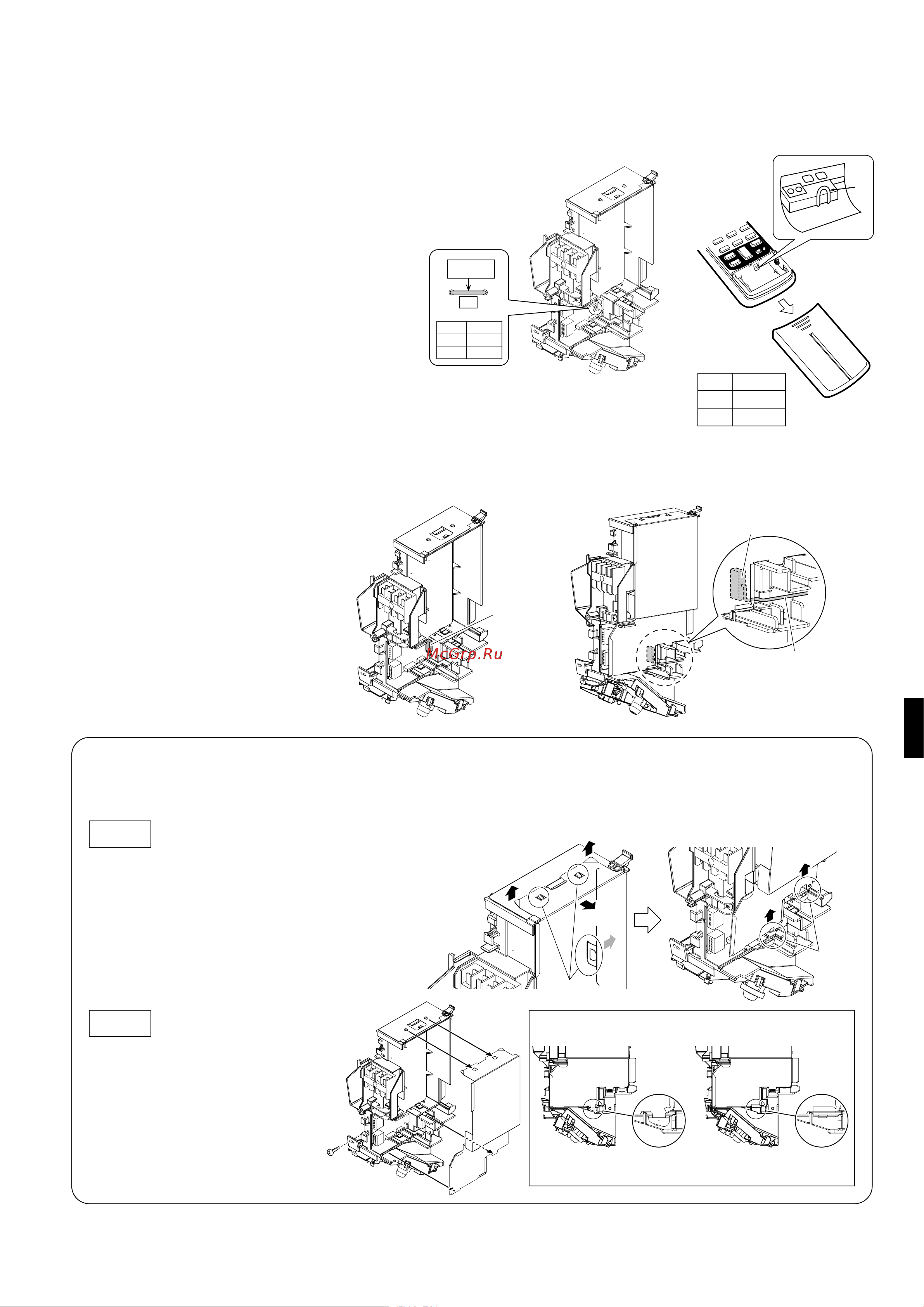

How to set the different addresses.
When 2 indoor units are installed in 1 room, the
2 wireless remote controllers can be set for
different addresses.
1) Remove the metal plate electrical wiring
cover.
(Refer to the Removal/attachment methods
of metal plate electrical wiring covers.)
2) Cut the address jumper (JA) on the printed
circuit board.
3) Cut the address jumper (J4) in the remote
controller.
4.
When connecting to an HA system.
(Wired remote controller, central remote controller etc.)
1) Remove the metal plate electrical
wiring cover.
(Refer to the Removal/
attachment methods of metal
plate electrical wiring covers.)
2) Attach the connection cord to the
S21 connector and pull the
harness out through the notched
part in the figure.
3) Replace the electrical wiring cover
as it was, and pull the harness
around, as shown in the figure.
J4
ADDRESS
EXIST
1
CUT 2
J4
ADDRESS
JA
ADDRESS
JA
EXIST
1
CUT 2
HA connector
(S21)
HA connector
(S21)
Lay the HA cord as
shown in the figure.
Screw
2) Remove the electrical
wiring box. (1 screw)
3) Raise the 2 upper parts of the
metal plate electrical wiring cover,
pull the parts frontward, and
remove the 3 tabs.
4) Slide the metal plate electrical wiring
cover upward and remove the 2 tabs on
the lower side.
Removal methods of metal plate electrical wiring covers
There are 2 types of metal plate electrical wiring cover, i.e., Type A or Type B.
Remove them as shown below.
1) Remove the front grille.
2) Remove the electrical wiring box. (1 screw)
3) Raise the 2 upper parts of the metal plate electrical
wiring cover, pull the parts frontward, and remove
the 3 tabs.
4) Slide the metal plate electrical wiring cover upward
and remove the 2 tabs on the lower side.
Ta b
Slide
Slide
Pull
Pull
Slide
Pull
Ta b
Type A
1) Steps 1) and 2) are the same
as those for Type A.
3) Pull the metal plate electrical
wiring cover frontward and
remove the 4 tabs.
Type B
<Difference between Type A and Type B>
Type A Type B
