Installation Tips

Attachment methods of metal plate electrical wiring covers

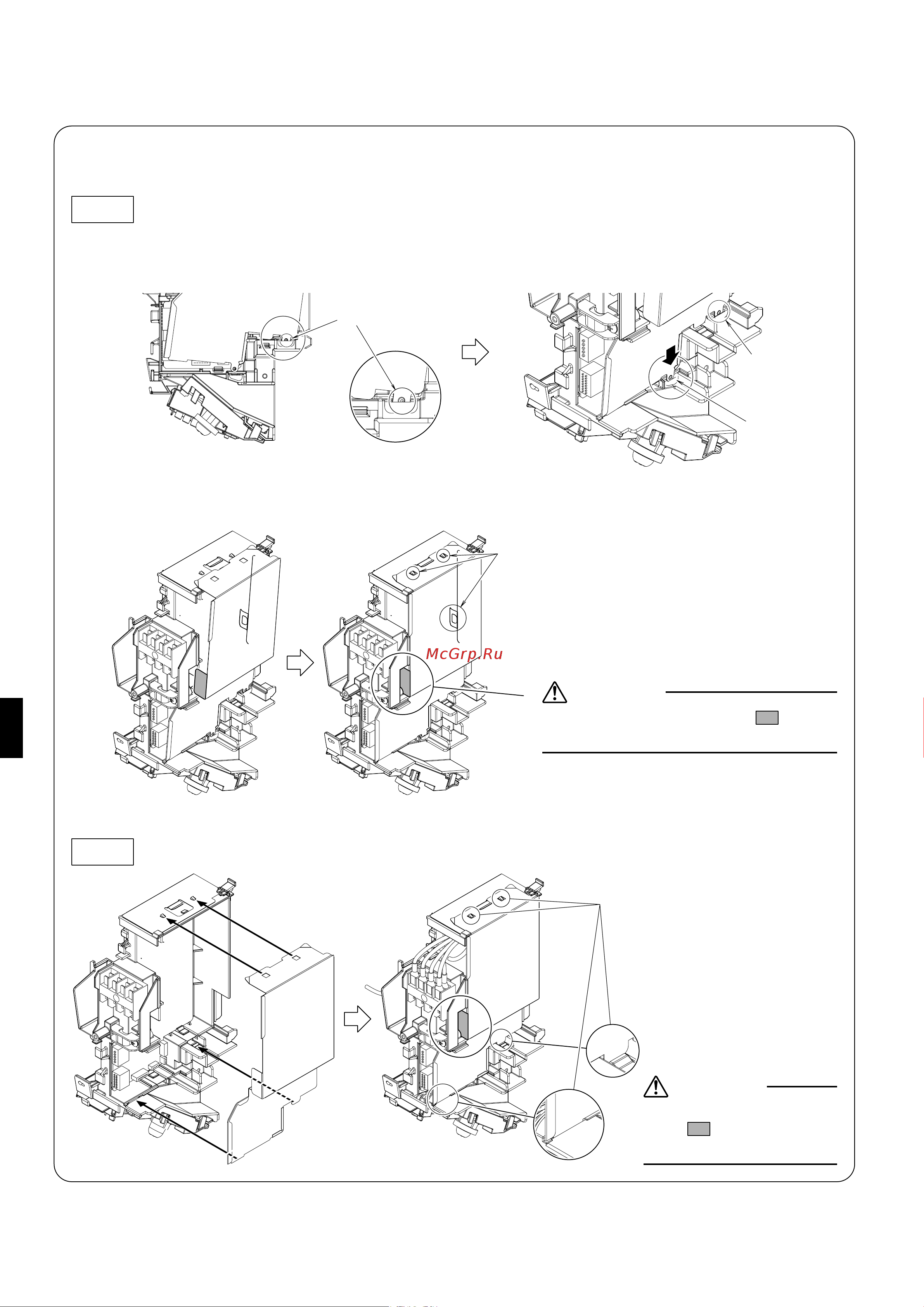

Attach the metal plate electrical wiring covers as shown below.

1) Lean the metal plate electrical wiring cover as shown in the figure and attach tab (1) on the lower side to the electrical

wiring box.

2) Attach tab (2) on the lower side of the metal plate electrical wiring cover.

Type A

Type B

3) Push in the upper part of the metal plate electrical wiring cover and attach the 3 tabs.

Tab (1)

Tab (2)

Tab (1)

Ta b

CAUTION

Make sure that the shaded part ( ) will

not go inside the electrical wiring box.

CAUTION

Make sure that the shaded

part ( ) will not go inside

the electrical wiring box.

4 tabs

Attach the 4 tabs securely

to the positions shown in

the figure.
