Instruction SiBE12-712
118 Operation Manual

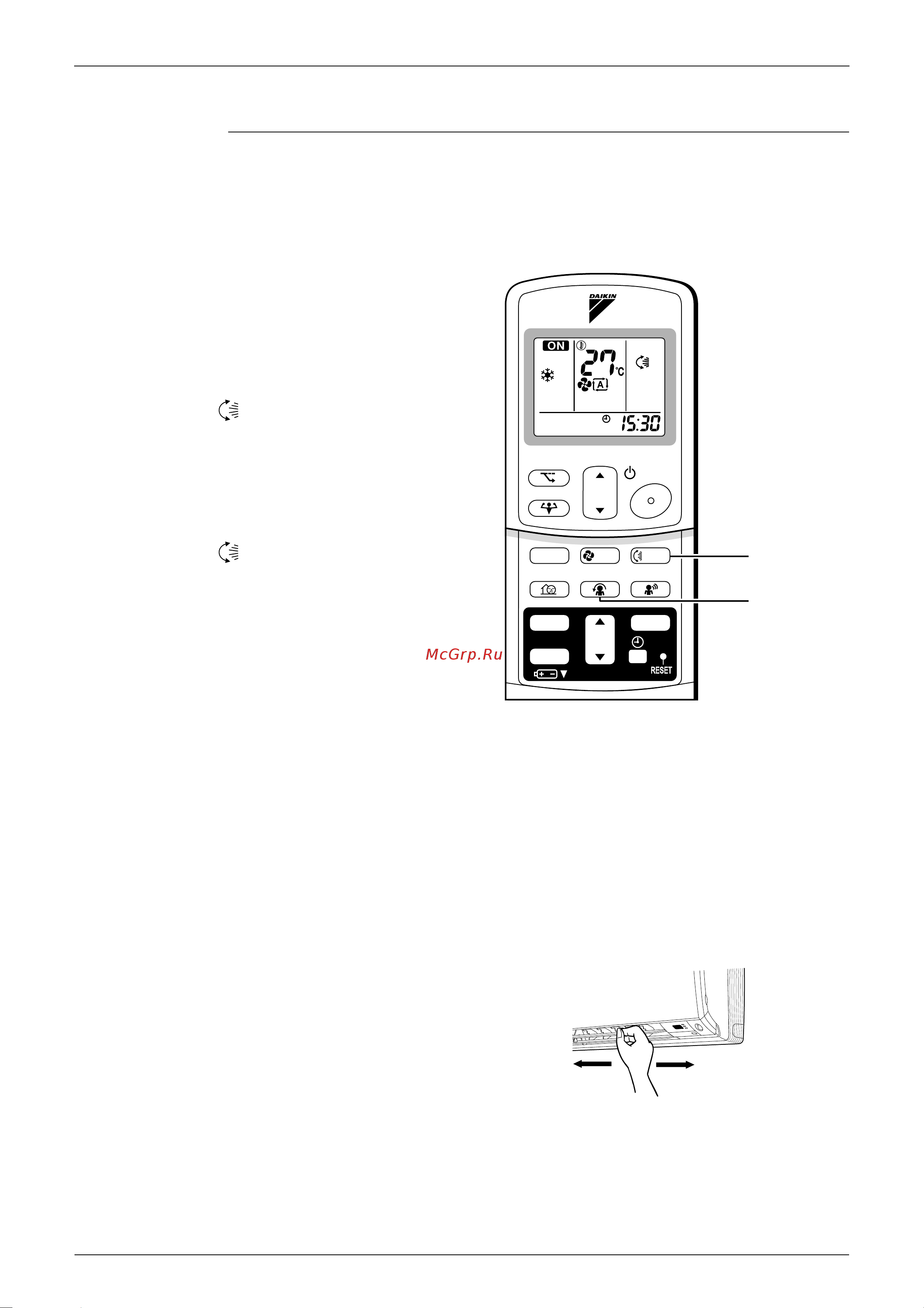

2.1.6 Adjusting the Air Flow Direction
FTK(X)S 20/25/35 D, ATKS 20/25/35 E, ATXS 20/25/35 E
Adjusting the Air Flow Direction
You can adjust the air flow direction to increase your comfort.
To adjust the horizontal
blades (flaps)
1. Press “SWING button”.
• “ ” is displayed on the LCD and the flaps
will begin to swing.
2. When the flaps have reached the
desired position, press “SWING
button” once more.
• The flap will stop moving.
• “ ” disappears from the LCD.
To adjust the vertical blades
(louvers)
Hold the knob and move the louvers.
(You will find a knob on the left-side and the right-side blades.)
• When the unit is installed in the corner of a room,
the direction of the louvers should be facing away
from the wall.
If they face the wall, the wall will block off the wind,
causing the cooling (or heating) efficiency to drop.
TEMP
ON/OFF
POWERFUL
MODE
FAN
SWING
QUIET
SENSOR
ECONO
COMFORT
TIMER
ON
CANCEL
OFF
1, 2
3, 4
