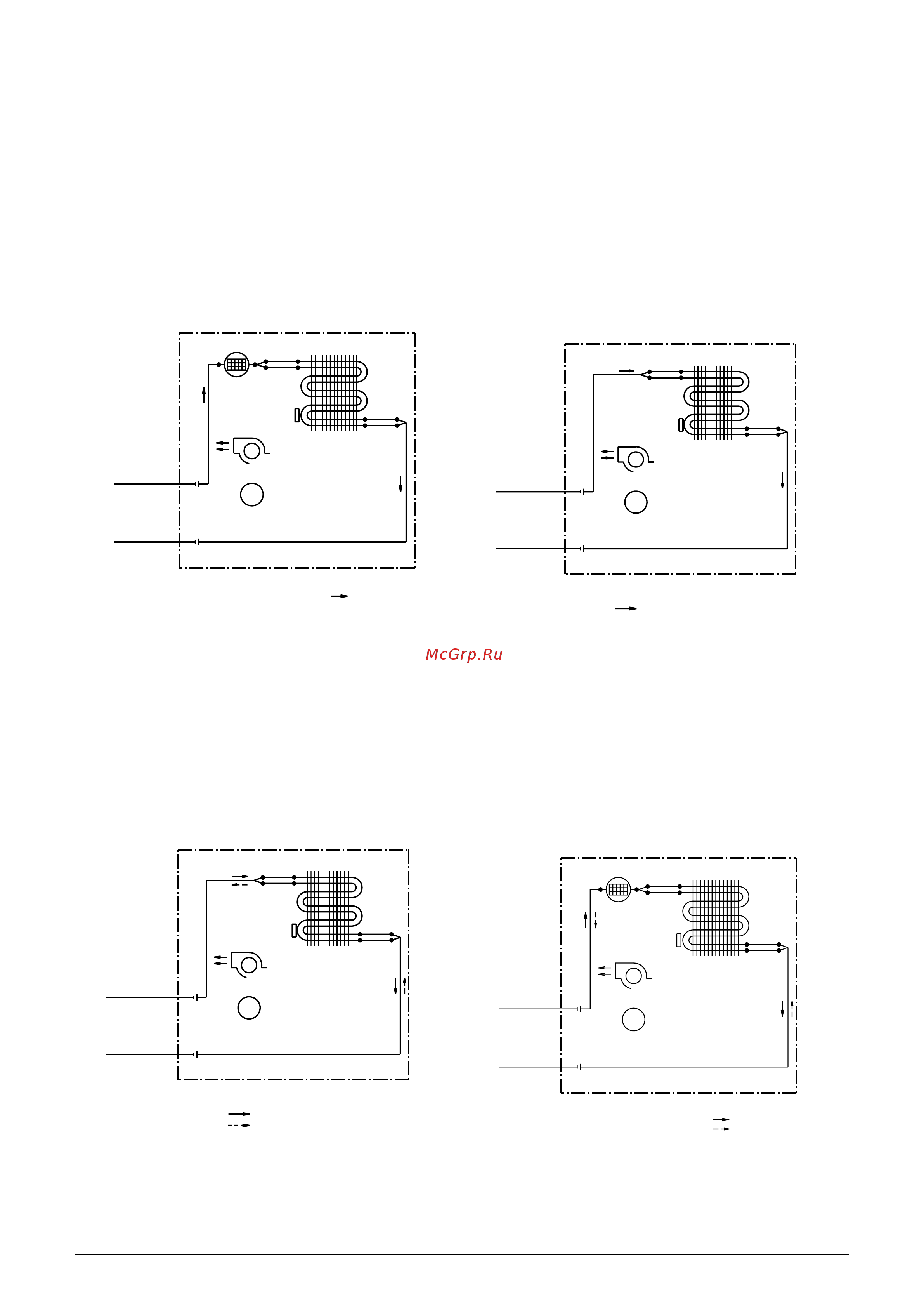

Piping Diagrams SiBE12-712
252 Appendix
1. Piping Diagrams
1.1 Indoor Units
1.1.1 Wall Mounted Type
FTKS20/25/35D3VMW(L),
ATKS20/25/35E2V1B
FTKS20/25/35CAVMB,
ATKS20/25/35DAVMB
FTXG25/35EV1BW(S),
ATXG25/35EV1B
FTXS20/25/35D3VMW(L),
ATXS20/25/35E2V1B
FIELD PIPING
FIELD PIPING
(9.5CuT)
(6.4CuT)
7.9CuT
MAFFLER ASSY
CROSS FLOW FAN
FAN MOTOR
THERMISTOR
ON HEAT EXCH.
INDOOR UNIT
M
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
COOLING
6.4CuT
6.4CuT
4D050757A
M
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
(
9.5CuT
)
7.9CuT
REFRIGERANT FLOW
FAN MOTOR
ON HEAT EXCH.
THERMISTOR
INDOOR UNIT
COOLING
7.0CuT
6.4CuT
9.5CuT
HEAT EXCHANGER
6.4CuT
6.4CuT
CROSS FLOW FAN
4D033698E
FIELD PIPING
FIELD PIPING
(9.5CuT)
(6.4CuT)
7.0CuT
CROSS FLOW FAN
FAN MOTOR
THERMISTOR
ON HEAT EXCH.
M
INDOOR UNIT
REFRIGERANT FLOW
HEATING
COOLING
7.0CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
7.0CuT
7.0CuT
4D045301B
FIELD PIPING
FIELD PIPING
(
9.5CuT
)
(
6.4CuT
)
7.9CuT
MAFFLER ASSY
CROSS FLOW FAN
FAN MOTOR
ON HEAT EXCH.
THERMISTOR
INDOOR UNIT
M
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
HEATING
COOLING
6.4CuT
6.4CuT
4D047912F
