Daikin RKS60F2V1B [24/31] Piping diagram
![Daikin RKS25F2V1B [24/31] Piping diagram](/views2/1776840/page24/bg18.png)
3
1
7
• Split Sky Air • Outdoor Units
24
• Outdoor Units • R-410A • RKS-F2V1B

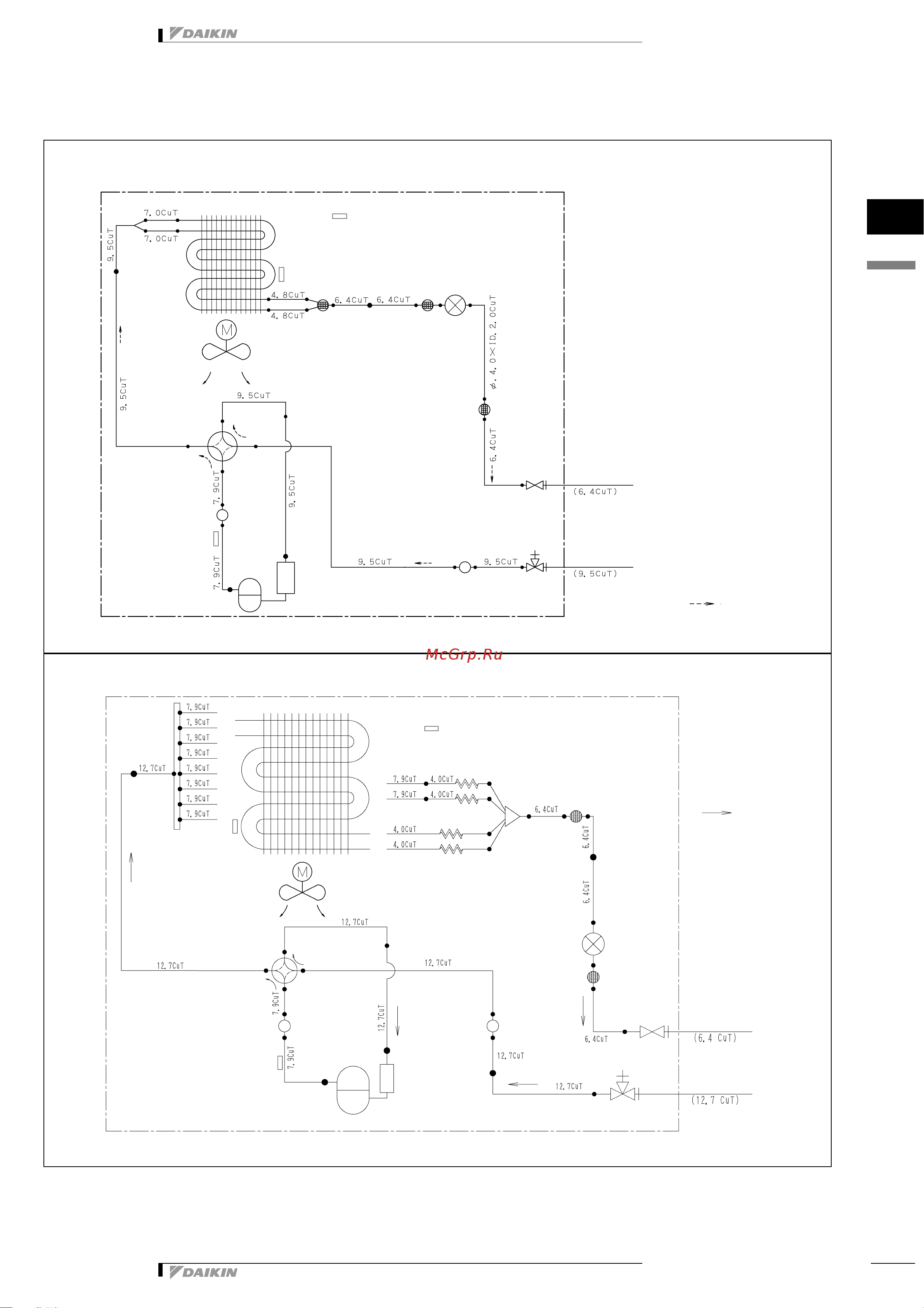

7 Piping diagram
3D047318D
RKS25-35F
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Liquid stop
valve
Field piping
Field piping
Gas stop
valve
Compressor
Refrigerant flow
Cooling
Discharge pipe
thermistor
Heat exchanger
thermistor
Muffler with
filter
Motor operated
valve
Muffler with
filter
Outdoor unit
Muffler
Muffler
Four way valve
normally: OFF
Accumulator
Muffler with
filter
3D051636D
RKS50-60F2V1B
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Capillary tube 1
Liquid stop
valve
Field piping
Field piping
Gas stop valve with
service port
Compressor
Capillary tube 3
Refrigerant flow
Cooling
Discharge pipe
thermistor
Heat exchanger
thermistor
Capillary tube 2
Capillary tube 4
Muffler with
filter
Motor operated valve
Muffler with filter
Outdoor unit
Muffler
Muffler
Four way valve
normally: OFF
