• Split Sky Air • Outdoor Units
26
• Outdoor Units • R-410A • RKS-F2V1B
8 Wiring diagram

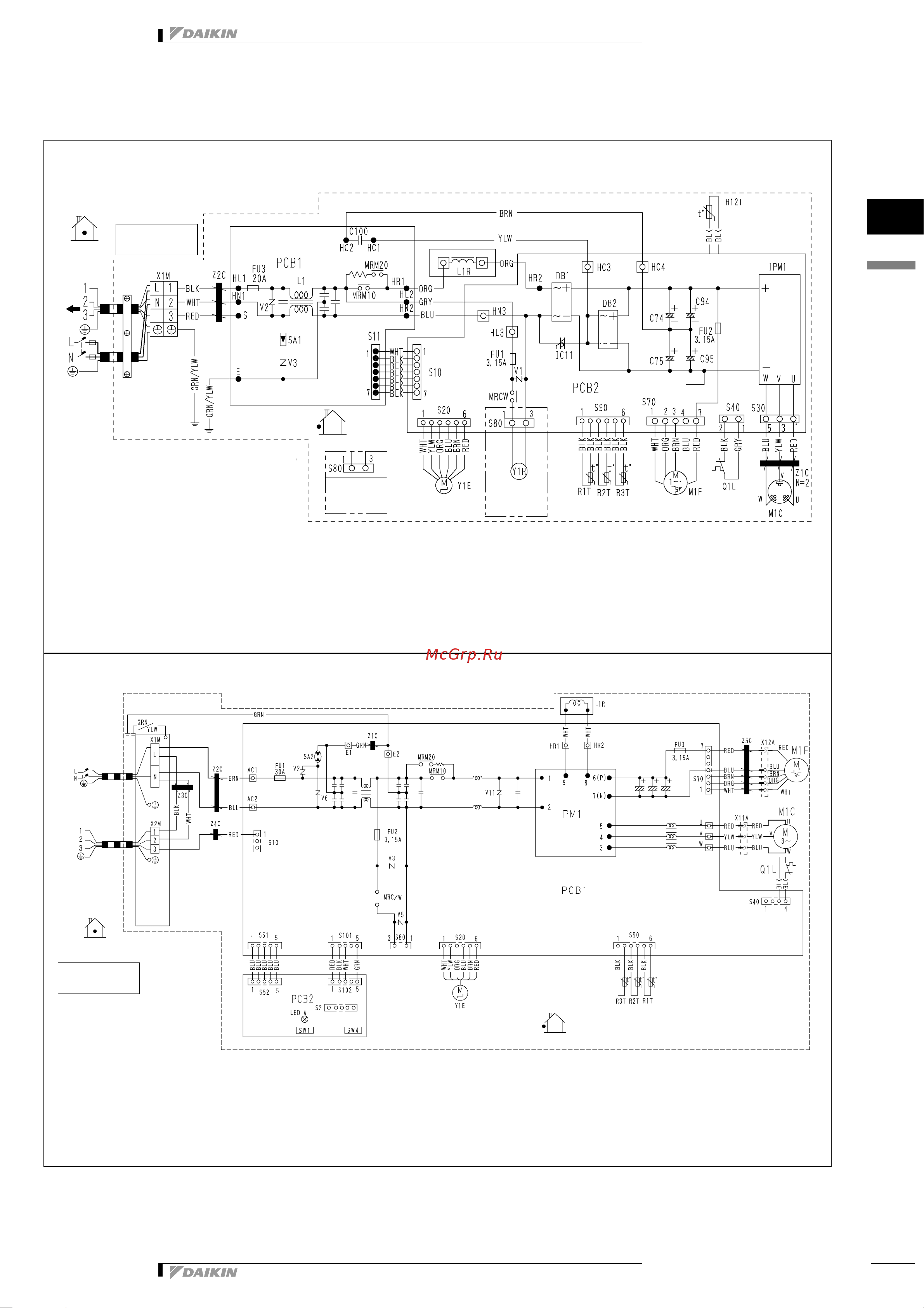

8 - 1 Wiring diagram
3D046707H
RKS25-35F2V1B
R
: Protective earth
C74,C75
C94,C95,C100 : Capacitor
DB1,DB2 : Diode bridge
FU1,FU2,FU3 : Fuse
IC11 : Triac
IPM1 : Intelligent power module
L : Live
L1 : Coil
L1R : Reactor
M1C : Compressor motor
M1F : Fan motor
MRCW,MRM10,MRM20
: Magnetic relay
N : Neutral
PCB1,PCB2 : Printed circuit board
Q1L : Overload protector
R1T,R2T,R3T,R12T : Thermistor
S10,S11,S20
S30,S40,S70
S80,S90,S91
HC3,HC4,HL3,HN3: Connector
g
Field wiring
Indoor
Outdoor
(outdoor)
(Condenser)
(discharge)
SA1 : Surge arrester
V1,V2,V3 : Varistor
X1M : Terminal strip
Y1E : Electronic expansion valve coil
Y1R : Reversing solenoide valve coil
Z1C,Z2C : Ferrite core
In case of cooling
only type
In case of heat
pump type
NOTE
1. Refer to the nameplate for the power requirements.
3D056145
RKS50F2V1B
R
: Protective earth
Z1C∼Z4C : Ferrite core
X1M,X2M : Terminal strip
Y1E : Electronic expansion valve coil
V2,V3,V5,V6,V11 : Varistor
SA2 : Surge arrester
F1U,F2U,FU3 : Fuse
AC1,AC2
U,V,W,X11A
E1,E2
HR1,HR2 : Connector
MRM10, MRM20,
MRC/W : Magnetic relay
R1T∼R3T : Thermistor
S2∼S102 : Connector
LEDA : Pilot lamp
L : Live
N : Neutral
S1W : Forced operation on/off switch (SW1)
S4W : Local setting SW (SW4)
g
Field wiring
Indoor
Power supply
Outdoor
(outdoor)
(Condenser)
(discharge)
M1C : Compressor motors
M1F : Fan motor
L1R : Reactor
Q1L : Overload protector
PM1 : Power module
PCB1, 2 : Printed circuit board
Sheet metal : Terminal strip fixed plate
To indoor unit
Sheet metal
