Daikin RKS60E2V1B [11/38] Dimensional drawing centre of gravity
![Daikin RKS60E2V1B [11/38] Dimensional drawing centre of gravity](/views2/1776866/page11/bgb.png)
• Outdoor Units • R-410A • RKS-E2V1B
1
5
• Split Sky Air • Outdoor Units11

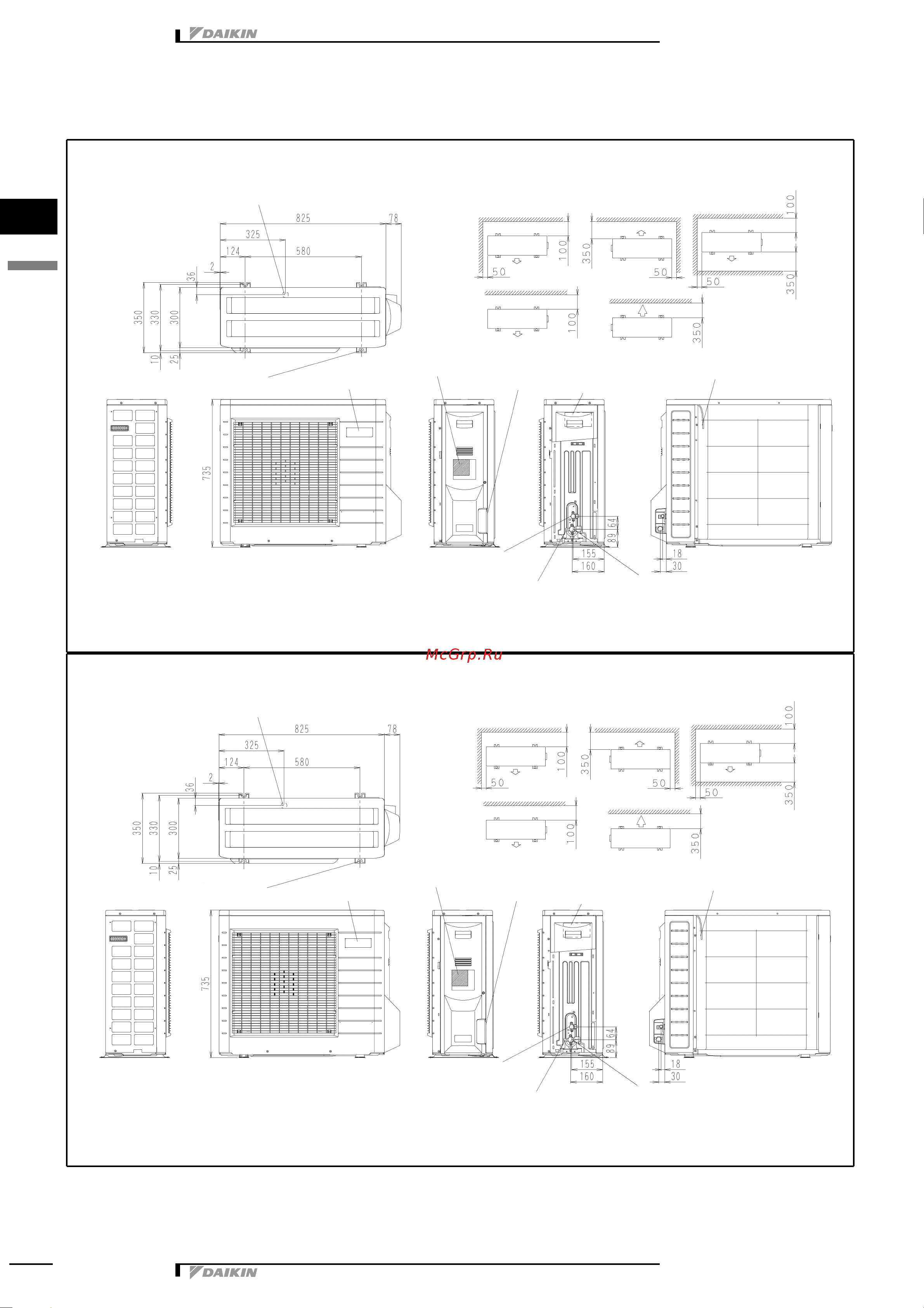

5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
3D051657B
RKS50,60E
unit (mm)
Minimum space for air passage
Wall height on air outlet side = less
than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
4 x holes for anchor bolts (M8 or M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(J 12.7 CuT)
Liquid stop valve
(J 6.4 CuT)
Service port
Outdoor air temperature
thermistor
Brand name label
In case of removing stop
valve cover
3D051658A
RKS71E
unit (mm)
Minimum space for air passage
Wall height on air outlet side = less
than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
4 x holes for anchor bolts (M8 or M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(J 15.9 CuT)
Liquid stop valve
(J 6.4 CuT)
Service port
Outdoor air temperature
thermistor
Brand name label
In case of removing stop
valve cover
