• Outdoor Units • R-410A • RKS-E2V1B
1
4
• Split Sky Air • Outdoor Units7

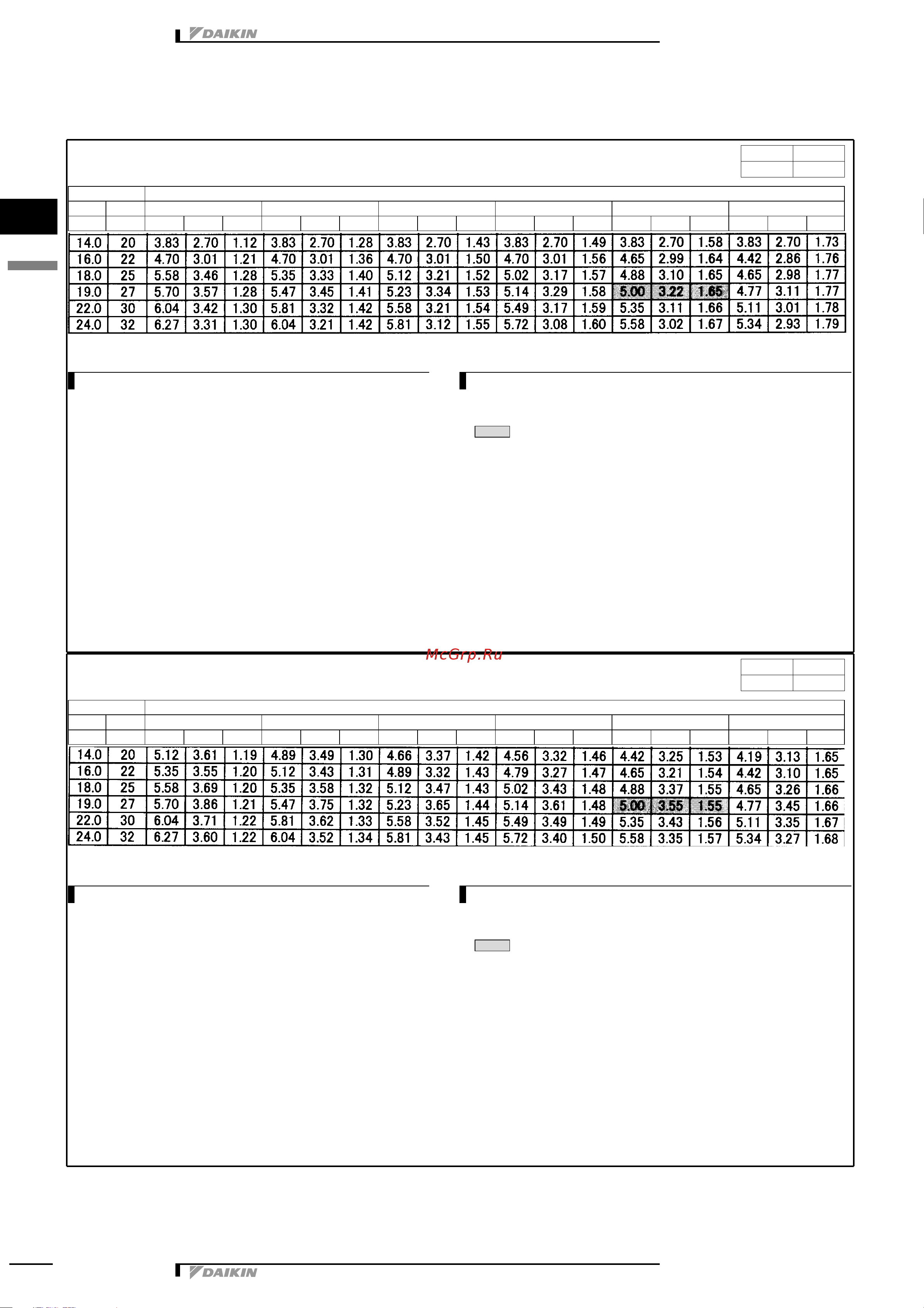

4 Capacity tables
4 - 1 Cooling capacity tables
FTKS50D+RKS50E
Cooling capacity 220-240V [50Hz]
AFR 11.4
BF 0.31
Indoor Outdoor temperature (°CDB)
EWB EDB 20 25 30 32 35 40
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3D051925
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°C)
EDB: Entering dry bulb temp. (°C)
TC: Total capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan
motor heat
2. shows nominal (rated) capacities and power input.
3. TC, PI and SHC must be calculated by interpolation using the figures in the
above tables. (Figures out of the tables should not be used for calculation.)
4. About SHC which are not mentioned on the table, please calculate them
with around values in direct proportion.
5. Capacities are based on following conditions:
Corresponding refrigerant piping length: 7.5 m
Level difference: 0 m
6. Air flow rate (AFR) and Bypass factor (BF) are taburated above.
FTKS50E+RKS50E
Cooling capacity 220-240V [50Hz]
AFR 14.7
BF 0.28
Indoor Outdoor temperature (°CDB)
EWB EDB 20 25 30 32 35 40
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3D051926
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°C)
EDB: Entering dry bulb temp. (°C)
TC: Total capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan
motor heat
2. shows nominal (rated) capacities and power input.
3. TC, PI and SHC must be calculated by interpolation using the figures in the
above tables. (Figures out of the tables should not be used for calculation.)
4. About SHC which are not mentioned on the table, please calculate them
with around values in direct proportion.
5. Capacities are based on following conditions:
Corresponding refrigerant piping length: 7.5 m
Level difference: 0 m
6. Air flow rate (AFR) and Bypass factor (BF) are taburated above.
