Daikin RKS60E2V1B [31/38] Capacity tables

• Split Sky Air • Outdoor Units 14

• Outdoor Units • R-410A • RXS-E2V1B

3 Capacity tables

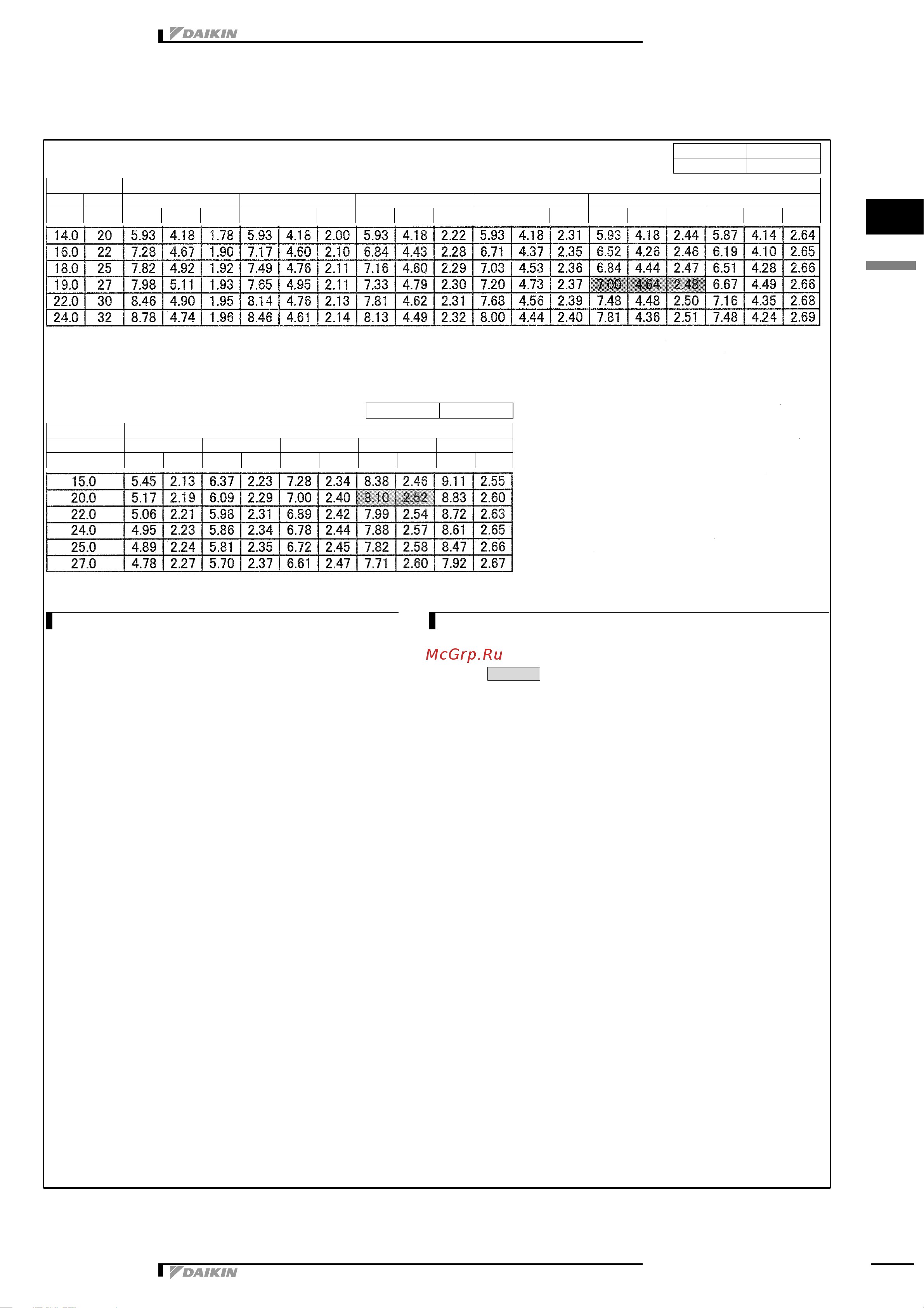

3 - 1 Cooling/Heating capacity tables

FTXS71E + RXS71E

Cooling 50Hz 220-240V

AFR 17.4

BF 0.30

Indoor

Outdoor temperature (°C)

EWB EDB 20 25 30 32 35 40

(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

Heating 50Hz 220-240V

AFR 19.7

Indoor

Outdoor temperature (°CWB)

EDB -10 -5 0 6 10

(°C) TC PI TC PI TC PI TC PI TC PI

3D052800

SYMBOLS

AFR : Air flow rate (m

/min)

BF : Bypass factor

EWB : Entering wet bulb temp. (°CWB)

EDB : Entering dry bulb temp. (°CDB)

TC : Total cooling capacity (kW)

SHC : Sensible heating capacity (kW)

PI : Power input (kW)

NOTES

1 Ratings shown are net capacities which include a deduction for

indoor fan motor heat

2 shows nominal (rated) capacities and power input.

3 TC, PI and SHC must be calculated by interpolation using the figures

in the above tables. (Figures out of the tables should not be used for

calculation.)

4 About SHC which are not mentioned on the table, please calculate

them with around values in direct proportion.

5 Capacities are based on following conditions:

Corresponding refrigerant piping length: 7.5 m

Level difference: 0 m

6 Air flow rate (AFR) and Bypass factor (BF) are taburated above.
