Daikin RXS60E3V1B [118/150] Remove the fan motor
![Daikin RKS50E3V1B [118/150] Remove the fan motor](/views2/1775096/page118/bg76.png)
Outdoor Unit SiBE07-618_D
108 Removal Procedure

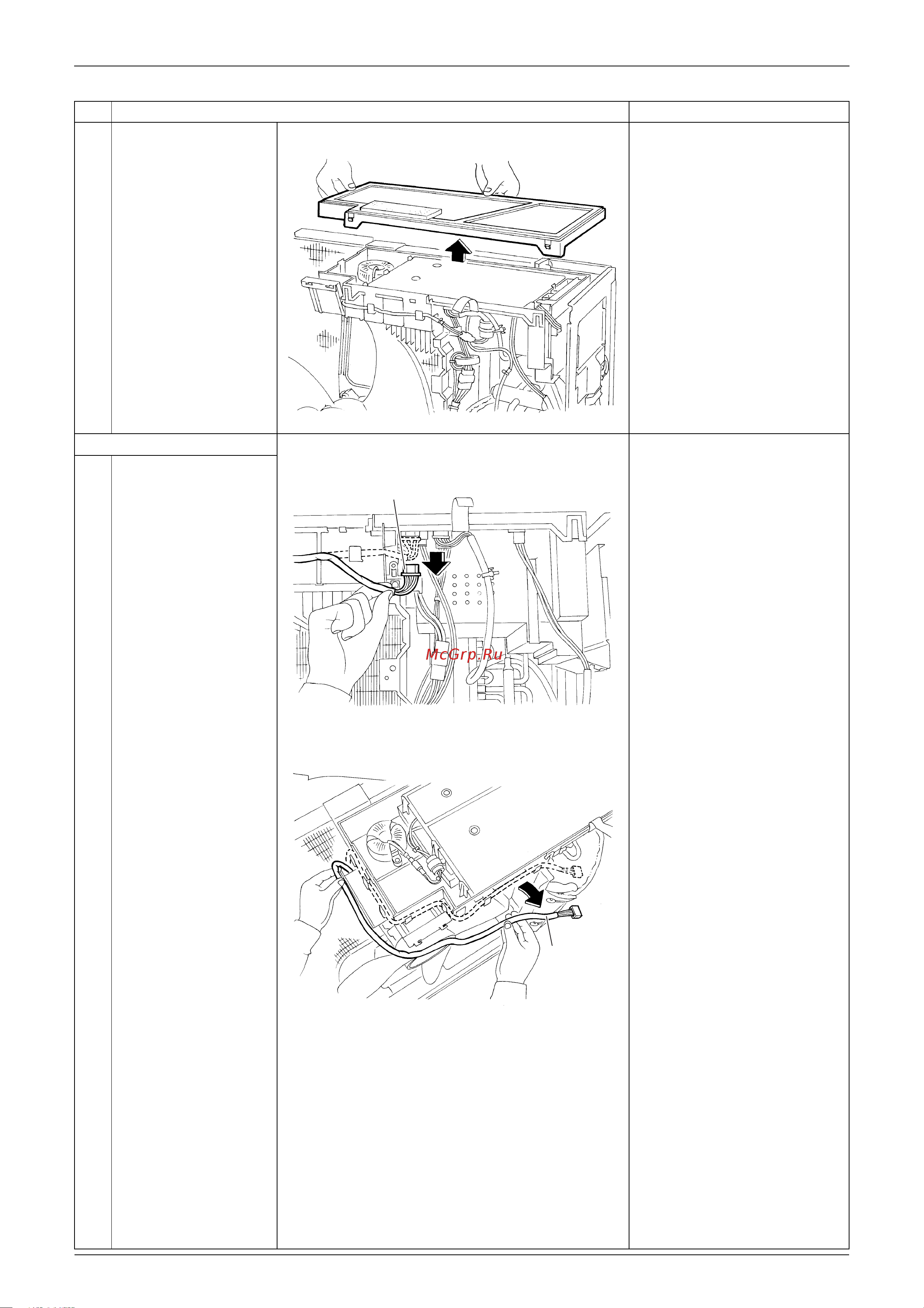

2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
2
Release the fan motor
lead wire from the 7
hooks.
Step
Procedure Points
(R5258)
[S70]
(R5259)
Fan motor
lead wire
(R5260)
