SiBE07-618_D Control Specification
Function and Control 33
3.3.4 3-minute Standby
Turning on the compressor is prohibited for 3 minutes after turning it off.
(Except when defrosting.)
3.3.5 Compressor Protection Function
When turning the compressor from OFF to ON, the upper limit of frequency is set as follows.
(The function is not activated when defrosting.)

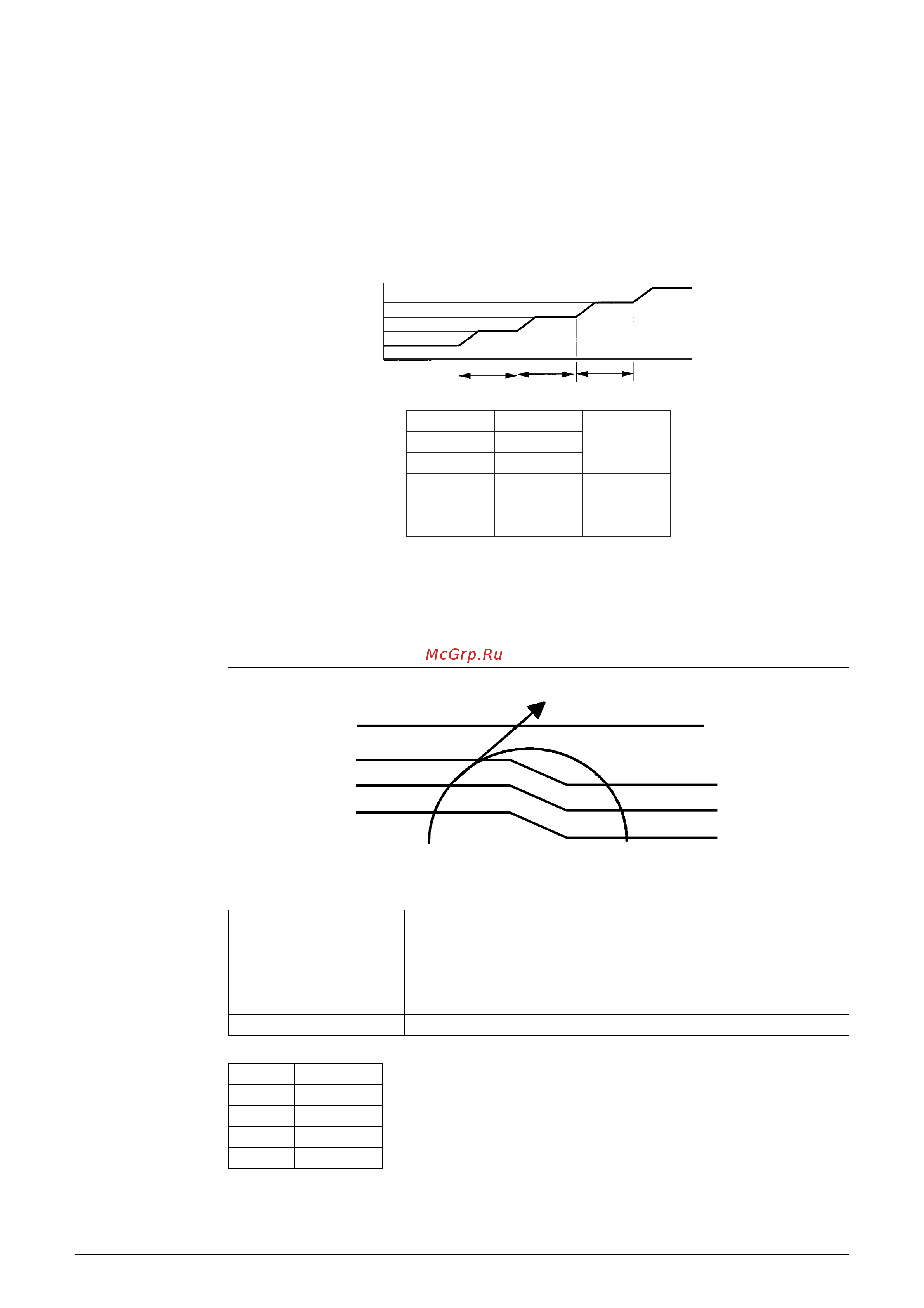

3.4 Discharge Pipe Temperature Control
Outline The discharge pipe temperature is used as the internal temperature of the compressor. If the
discharge pipe temperature rises above a certain level, the upper limit of frequency is set to
keep this temperature from going up further.
Detail
FCG3
(Hz)
Frequency
(Sec.)
Time
FCG2
FCG1
TCG1 TCG2 TCG3
(R10540)
FCG 1
FCG 2
FCG 3
TCG 1
TCG 2
TCG 3
55
70
85
120
200
470
Hz
seconds
Zone Control
Stop zone When the temperature reaches the stop zone, the compressor stops.
Drooping zone The timer starts, and the frequency is drooping.
Keep zone The upper limit of frequency is kept.
Up zone The upper limit of frequency is increased.
Reset zone The upper limit of frequency is canceled.
A (°C) 110
B (°C) 103
C (°C) 101.5
D (°C) 100
E (°C) 95
(R12014)
˚C
˚C
˚C
Discharge pipe
temperature
Stop zone
˚C
Drooping zone
Keep zone
Up zone
Reset zone
˚C
A
B
C
D
E
