Instruction Si12-710
94 Operation Manual
CDXS 25/35 E

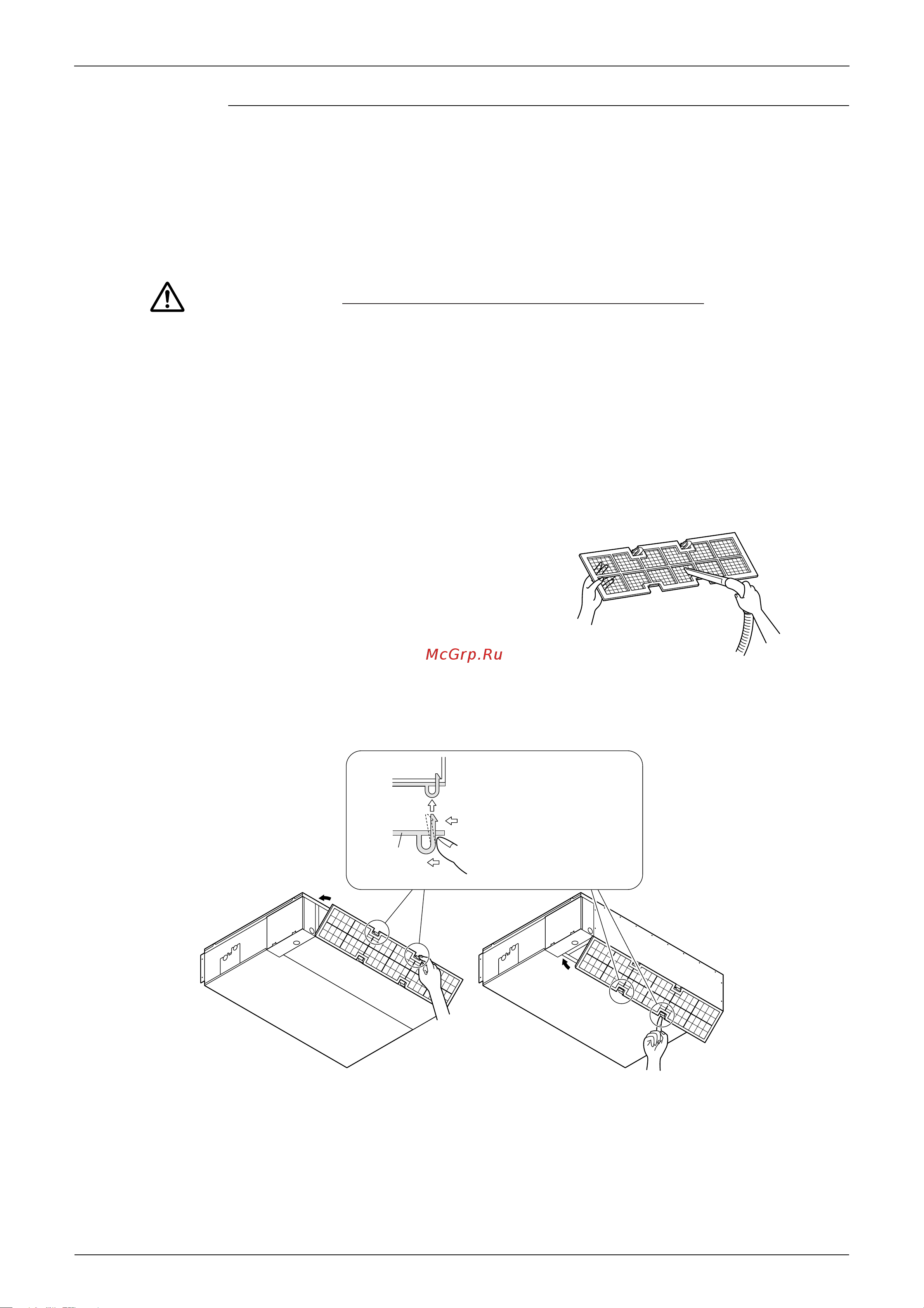

Care and Cleaning
CAUTION
Cleaning the air filter
1.Removing the air filter.
• Rear suction
Pull the bottom side of the air filter backwards, over the bends.
• Bottom suction
Pull the filter over the bends situated at the backside of the unit.
2.Cleaning the air filter.
Remove dust from the air filter using a vacuum cleaner and
gently rinse them in cool water. Do not use detergent or hot
water to avoid filter shrinking or deformation. After cleaning
dry them in the shade.
3.Replacing the air filter.
• Rear suction
Hook the filter behind the flap situated at the top of the unit
and push the other side gently over the bends.
• Bottom suction
Hook the filter behind the flap situated at the middle of the unit and push the other side gently
over the bends.
• Only a qualified service person is allowed to
perform maintenance.
• Before cleaning, be sure to stop the operation
and turn the breaker OFF.
In case of back side
In case of bottom side
Main unit
Filter
Attach the filter to the
main unit while
pushing down on the
bends.
Force
Force
