Ghibli Round 45 E 55 TOUCH [17/18] Wiring diagram
![Ghibli Round 45 E 55 TOUCH [17/18] Wiring diagram](/views2/1777795/page17/bg11.png)
EN
EN-14

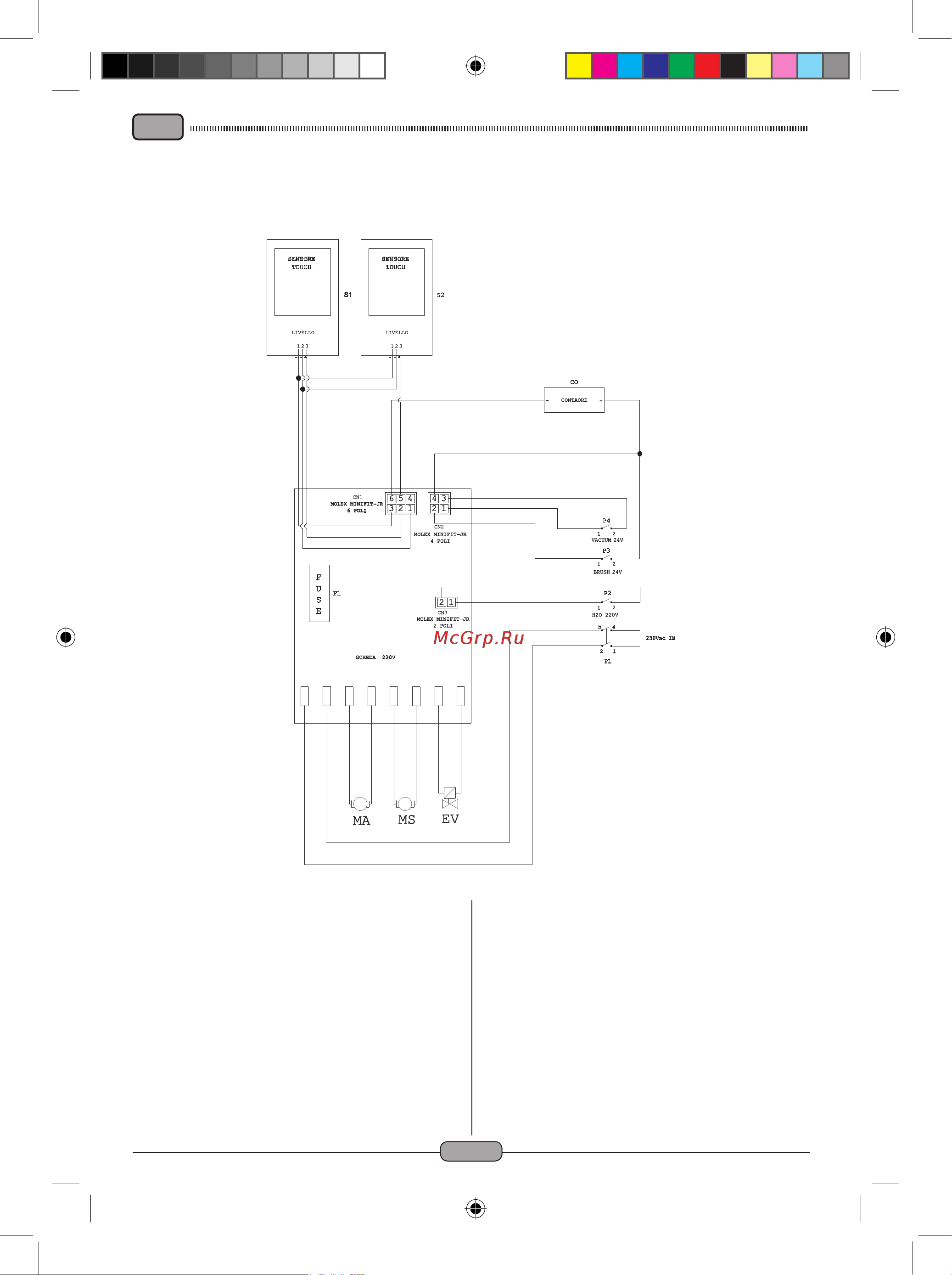

WIRING DIAGRAM
ROUND 45 E 55 TOUCH
CO ...........................................Hour counter
CN 1 .............sensor board 6-pole connector
CN 2 ..............circuit board 4-pole connector
CN 3 ........ EV circuit board 2-pole connector
F1 ......................................................... Fuse
MA ......................................... Vacuum motor
MS .............................................Brush motor
EV ................................................... Solenoid
P1 ....................................230V Bipolar switc
P2 .................................................EV Switch
P3 .............................................Brush switch
P4 ......................................... Vacuum switch
S1 .................... Recovery level touch sensor
S2 .......................................Magnetic sensor
