Outdoor Unit Si04-703A
176 Removal Procedure

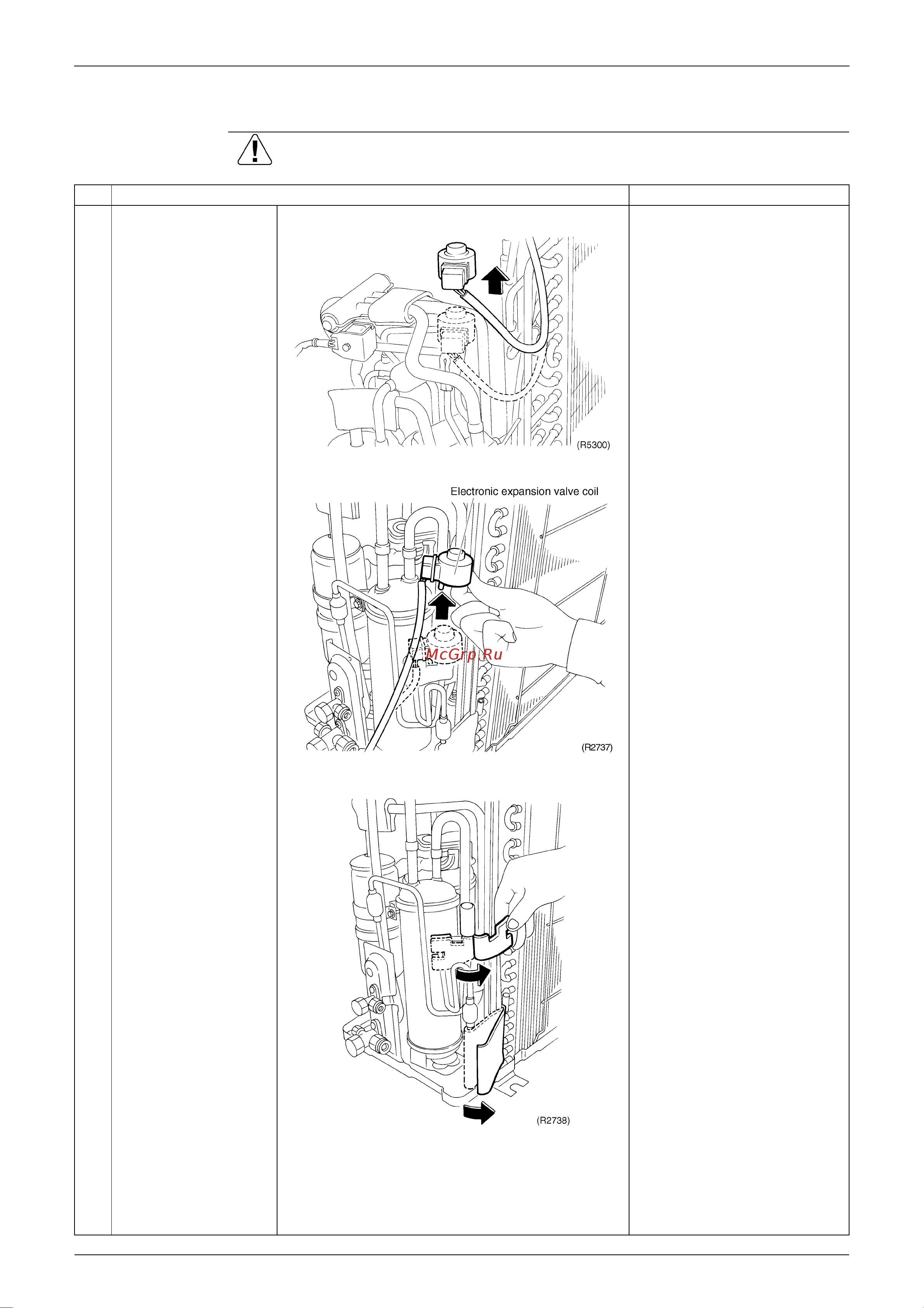

2.1.7 Removal of the Electronic Expansion Valve
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the electronic
expansion valve coil.
In case of 50/60 class heat
pump models.
In case of 50/60 class
cooling only models.
2
Remove the sheets of
putty.
The illustration is different
depending on the models.
