![Daikin FTKS60FVM [205/244] Lift the panel upward to undo the 2 hooks and remove it](/img/pdf.png)
Daikin FTKS60FVM [205/244] Lift the panel upward to undo the 2 hooks and remove it
![Daikin FTKS60FVM [205/244] Lift the panel upward to undo the 2 hooks and remove it](/views2/1778473/page205/bgcd.png)

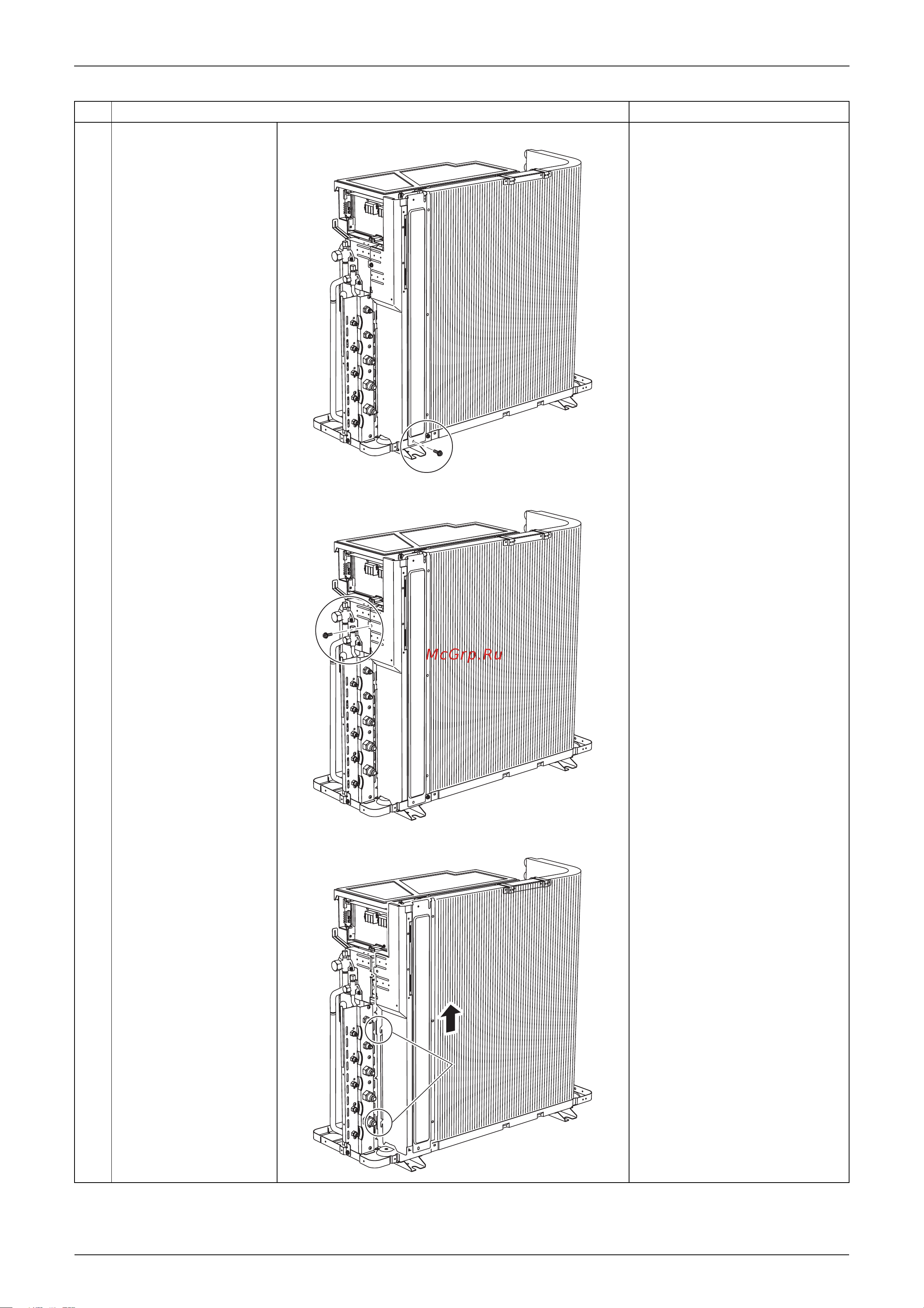

Outdoor Unit Si04-703A
194 Removal Procedure
7
Remove the fixing
screw from the bottom
frame.
8
Remove the fixing
screw from the shut-off
valve mounting plate.
9
Lift the panel upward to
undo the 2 hooks and
remove it.
Step Procedure Points
(R6406)(R7001)
(R7002)
HooksHooks
(R7003)
