Daikin CDXS25CVMB [10/23] Piping diagrams
![Daikin CDXS25CVMB [10/23] Piping diagrams](/views2/1778561/page10/bga.png)
4

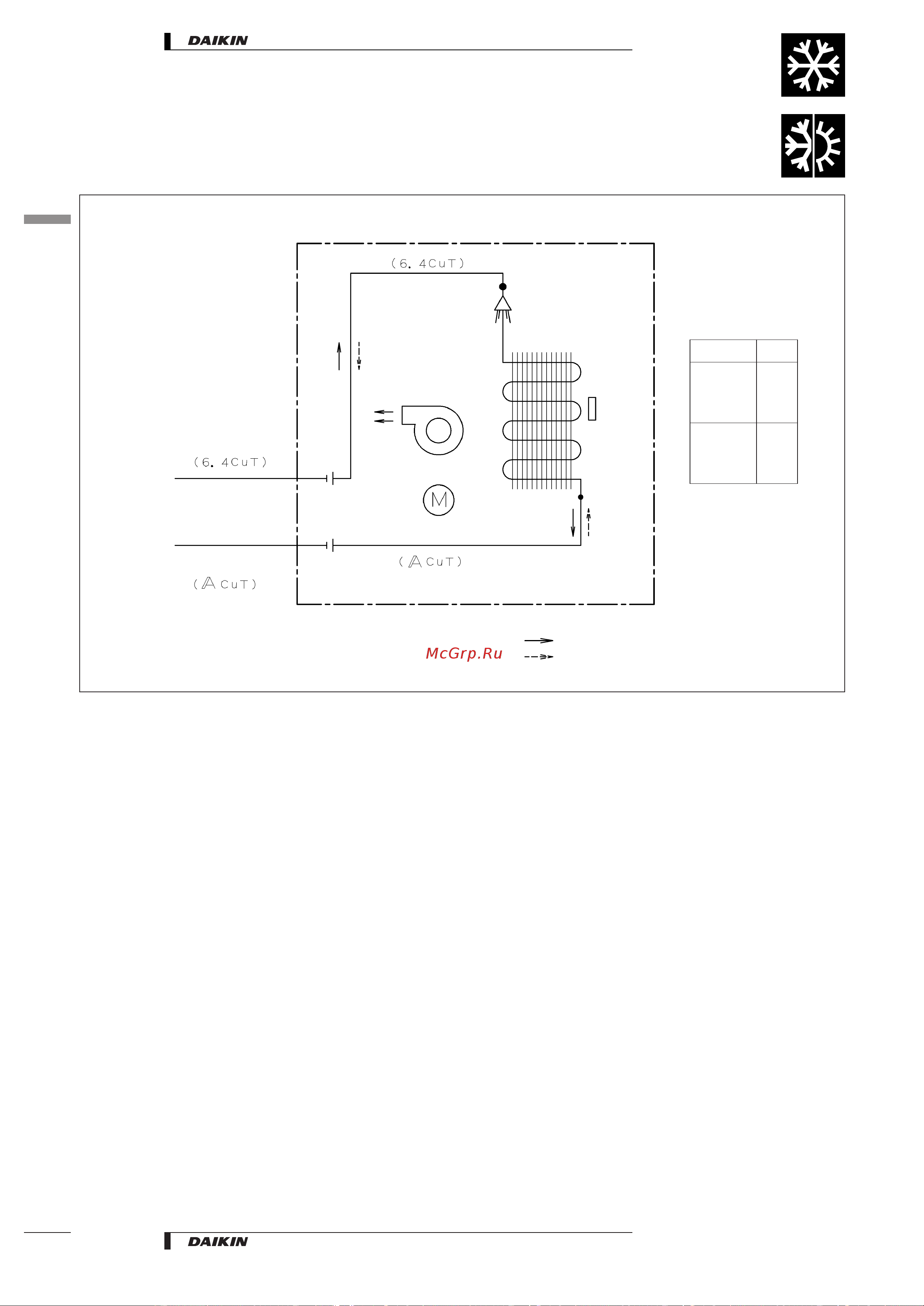

Piping diagrams
CDK/XS25-35-50-60C
Model
A
CDXS25CVMB
CDKS25CVMB
CDXS35CVMB
CDKS35CVMB
J 9.5
CDXS50CVMB
CDKS50CVMB
CDXS60CVMB
CDKS60CVMB
J 12.7
4D045449
Field piping (A CuT)
Field piping (6.4 CuT)
Heat exchanger
Fan motor
Sirocco fan
Refrigerant flow
Cooling
Heating
Indoor unit
Thermistor on
heat exchanger
•
Slim Concealed Ceiling, Inverter Controlled Unit •
R-410A • CDKS/CDXS25,35,50,60CVMB
1
4
8
• Split - Sky Air • Indoor Units
