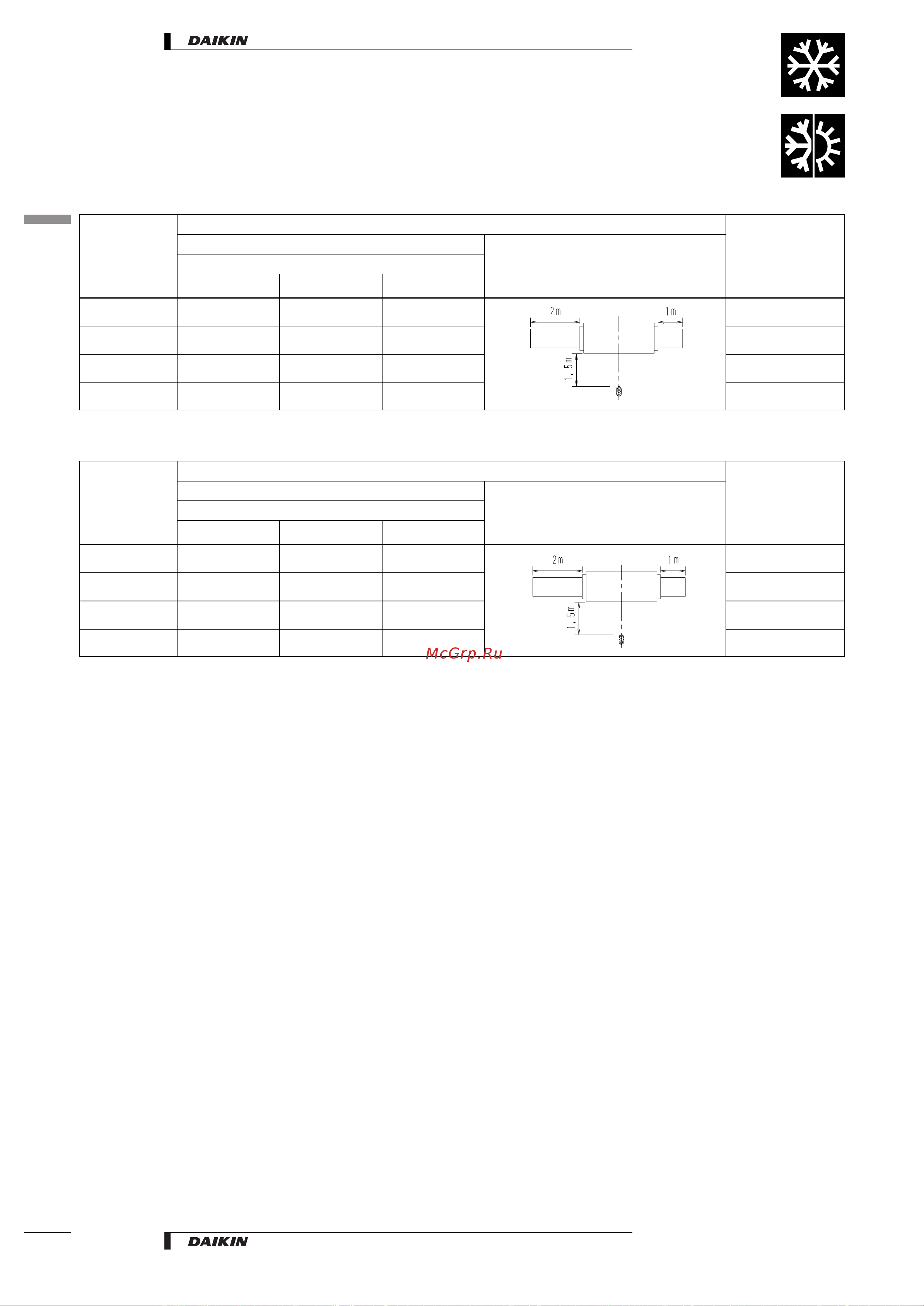

![Daikin CDXS25CVMB [12/23] Sound level](/views2/1778561/page12/bgc.png)
6
Sound level
6-1
Sound level data
Microphone
Cooling only
Model
Sound pressure level
Sound power level (H)
230V,50Hz
Measuring locationCooling
HLSL
CDKS25C 35 31 29 53
CDKS35C 35 31 29 53
CDKS50C 37 33 31 55
CDKS60C 38 34 32 56
Heat pump
Model
Sound pressure level
Sound power level (H)
(cooling/heating)
230V,50Hz
Measuring locationCooling/Heating
HLSL
CDXS25C 35/35 31/31 29/29 53/53
CDXS35C 35/35 31/31 29/29 53/53
CDXS50C 37/37 33/33 31/31 55/55
CDXS60C 38/38 34/34 32/32 56/56
Microphone
Duct
Duct
SuctionDischarge
Discharge
Duct Duct
Suction
•
Slim Concealed Ceiling, Inverter Controlled Unit •
R-410A • CDKS/CDXS25,35,50,60CVMB
1
6
6-1
10
• Split - Sky Air • Indoor Units
