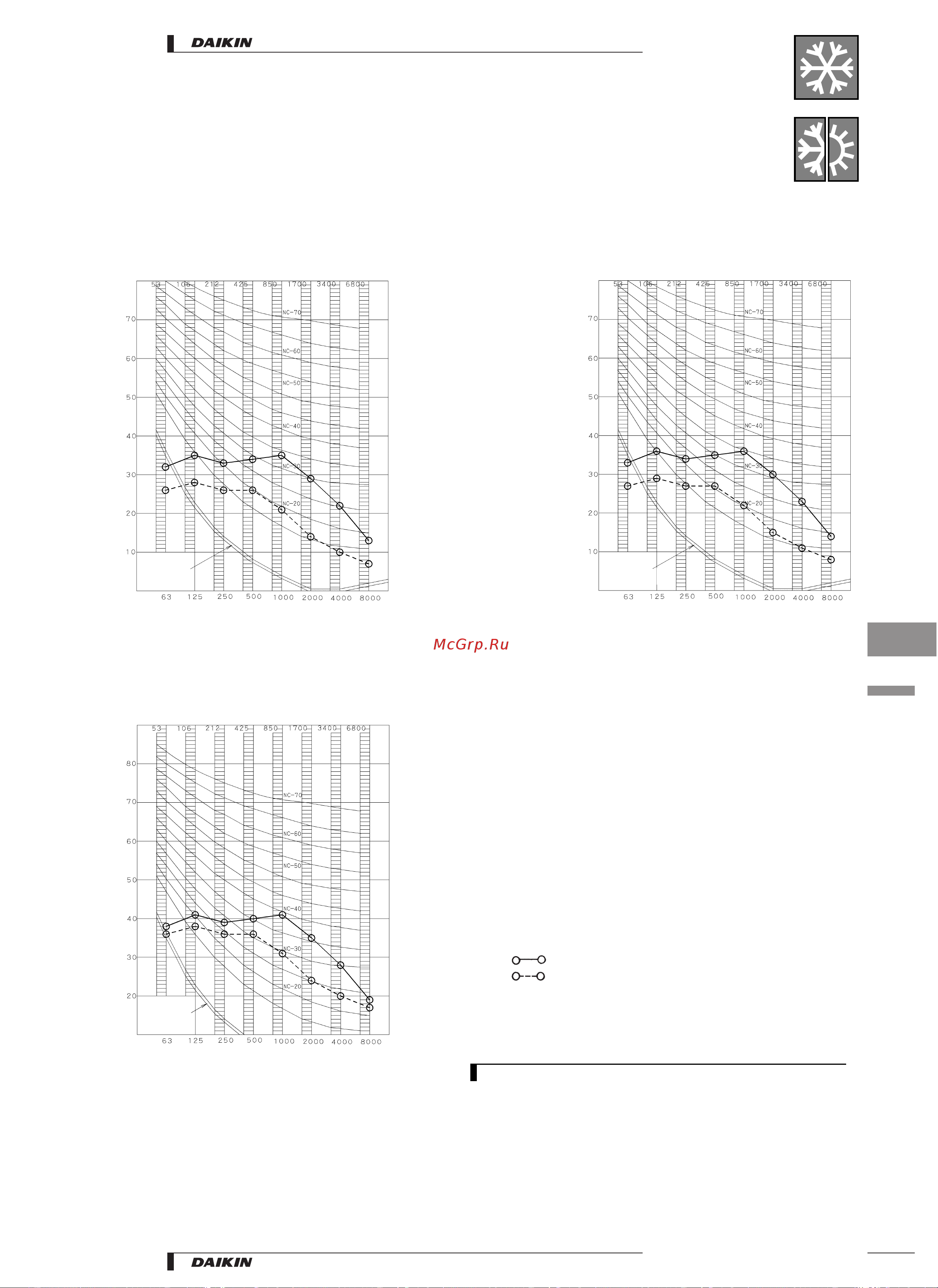

6
Sound level
6-2
Sound pressure spectrum
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz) Octave band center frequency (Hz)
FVKS25B FVKS35B
4D035265A4D035264A
approximate
threshold hearing
for continuous noise
approximate
threshold hearing for
continuous noise
FVKS50B
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate
threshold hearing
for continuous noise
4D035266A
Octave band center frequency (Hz)
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient conditions.
3 Reference acoustic pressure 0dB = 20Pa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)
Cooling only
•
Floor Standing, Inverter Controlled Unit • R-410A • FVK/XS25,35,50BVMB
