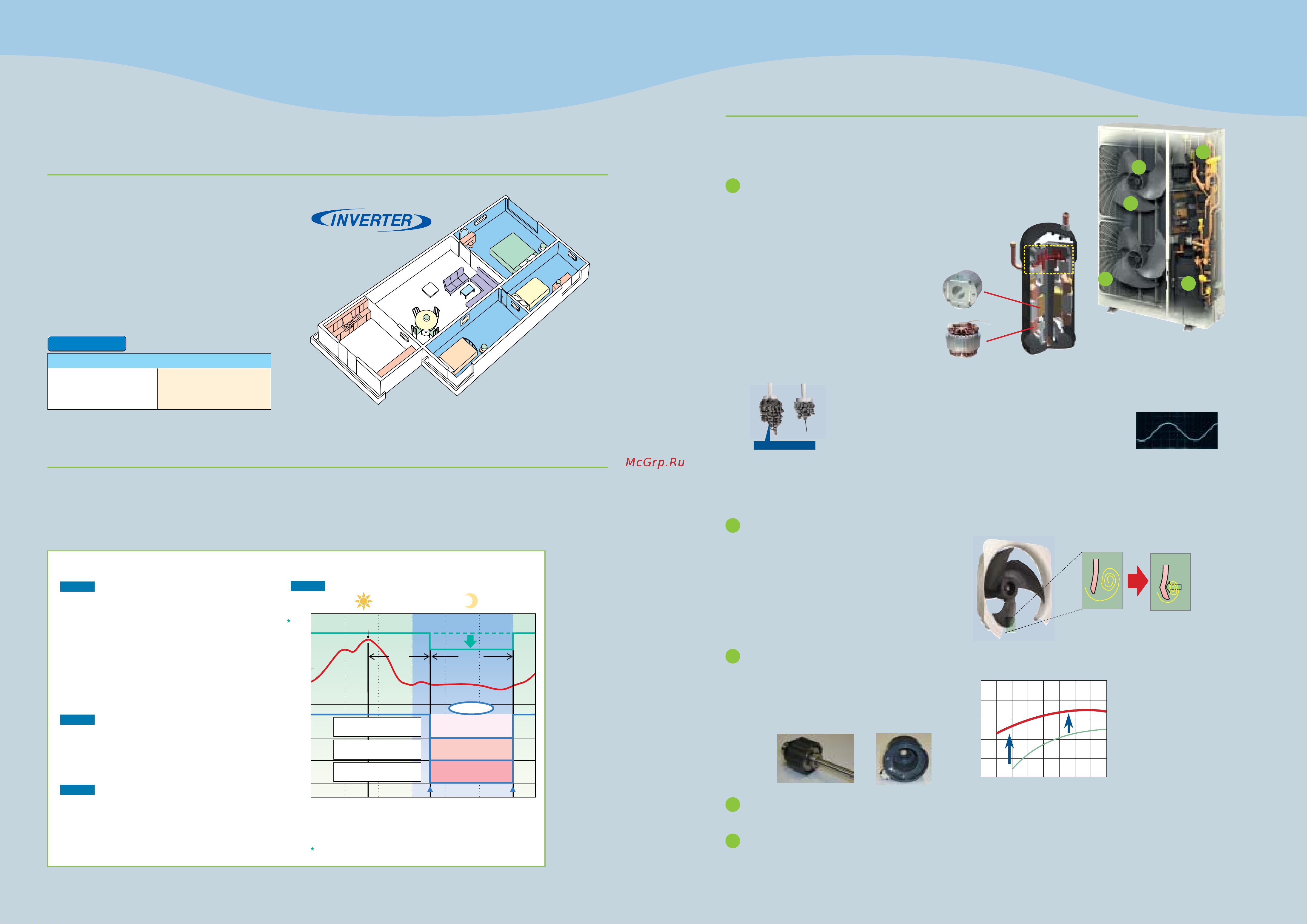

The Super Multi Plus E series outdoor units have been newly designed and use the latest
technologies to realise energy saving performance and quiet operation.
Energy efficiency and quiet operation
Energy efficiency and quiet operation
RMKS160E
Master bedroom 3.5 kW class
Bedroom (1) 2.5 kW class
Bedroom (2) 2.5 kW class
Power consumption 2,260 W
COP 3.63
High Energy Savings
With DC inverter power control the air
conditioner can operate at low capacity
most of the time. This is especially
important at night in a residential situation
when the whole family is at home. DC
inverter power control is able to achieve a
high COP even when multiple indoor units
operate simultaneously for long periods of
time.
During night time
Quiet operation features that achieve total comfort
Quietness is yet another important feature of Daikin’s Super Multi Plus E series. To
reduce noise and realise comfortable operation, latest technologies and features are
applied to the outdoor units, achieving the quiet operating sound level of 43 dB (A) in
night quiet mode.
Night quiet mode
Set on the outdoor PCB. Time of maximum
temperature is memorised. The low operating mode
will become active 8 hours*
1
after the peak
temperature in the daytime, and operation will return
to normal 10 hours*
2
after that. The operation sound
level for the night mode can be selected from 49 dB
(A) (Step 1), 46 dB (A) (Step 2) and 43 dB (A) (Step
3).
Automatic mode
Mode 1.
Automatic mode
Mode 1.
Starting time and ending time can be input. (External
control adaptor for outdoor unit, DTA104A61 or
DTA104A62, and a subsequently obtained timer are
necessary.)
Manual mode
Mode 2.
Combination of mode 1 and 2 can be used depending
on your needs.
Combined mode
Mode 3.
*1. Initial setting. Can be selected from 6, 8 and 10 hours.
*2. Initial setting. Can be selected from 8, 9 and 10 hours.
Notes: • This function is available in setting at site.
• The relationship of outdoor temperature (load) and time shown in the
graph is just an example.
Peak in the outdoor temperature
8 hrs 10 hrs
Operation sound dB (A)
49
8:00 12:00 16:00 20:00 0:00 4:00 8:00
50
100
52
0
Load %
Night modeNight mode endsendsNight modeNight mode startsstarts Night mode endsNight mode starts
Night Mode
46
43
(Initial setting)(Initial setting)
Step 1 max. - 3dB (A)
(11.2 kW)
Step 2 max. - 6dB (A)
(11.2 kW)
Step 3 max. - 9dB (A)
(11.2 kW)
Step 1: 49 dB (A)
Step 2: 46 dB (A)
Step 3: 43 dB (A)
Operation sound level selectable
from 3 steps for the night mode
The capacity reduction rate differs depending on the operation sound level
step selected.
Capacity %
These two new features work to significantly
reduce noise. Guides are added to the bell
mouth intake to reduce turbulence in the
airflow generated by fan suction. The new
Aero Spiral Fan features fan blades with bent
blade edges, further reducing turbulence.
Smooth Air Inlet Bell Mouth and Aero Spiral Fan
A larger sub-cooled area reduces refrigerant flow sound by making it easer to form
a liquid seal in front of the electrical valve.
SC heat exchanger
Super Aero Grille
Refined ventilation mechanism enables further reduction in required fan power.
Escaping eddies are sucked
in by the bent blade edges,
reducing overall turbulence.
Conventional
Newly developed
A collection of cutting-edge technologies
realises efficient and quiet operation.
Improving the high efficiency compressor
to achieve a high COP
2
5
Note: Data are based on
studies conducted under
controlled conditions at
a Daikin laboratory.
DC fan motor
Efficiency improved in all areas compared
to conventional AC motors, especially at
low speeds.
4
Sine wave DC inverter
>> Smooth sine wave DC inverter
Use of an optimised sine wave
smoothes motor rotation, further
improving operating efficiency.
Use of neodymium magnets in the motor
enables efficient generation of high torque,
reducing the size of the compressor.
>> Powerful magnets
Changes to the shape of the spiral and volume
ratio result in optimal refrigerant layout.
>> Optimal refrigerant configuration
The strength of the casing has been increased
by boosting the internal dome pressure.
>> Stronger materials
Neodymium magnets are
much more powerful than
the commonly used ferrite
magnets.
Ferrite magnet
Neodymium magnet
3
DC motor efficiency
(Comparison with a conventional AC motor)
200 300 400 500 600 700 800 900 1000
0
20
40
80
60
100
Efficiency (%)
Motor speed (
rpm
)
AC motor
AC motorAC motor
Approx.
40%
increase
Approx.
20%
increase
DC motorDC motorDC motorDC motorDC motor
DC fan motor structure
Neo aero spiral fan blade tips
RMKS112E
RMKS140E
RMKS160E
Reluctance
DC motor
1
Overheating losses are reduced by pressurising the area
around the motor, boosting energy saving performance in
conjunction with other features.
Reluctance DC Scroll Compressor
By introducing high pressure oil, the
reactive force from the fixed scroll is added
to the internal force, thereby reducing
thrust losses. This results in improved
efficiency and suppressed sound levels.
High thrust mechanism
3
4
1
5
2
