11
12

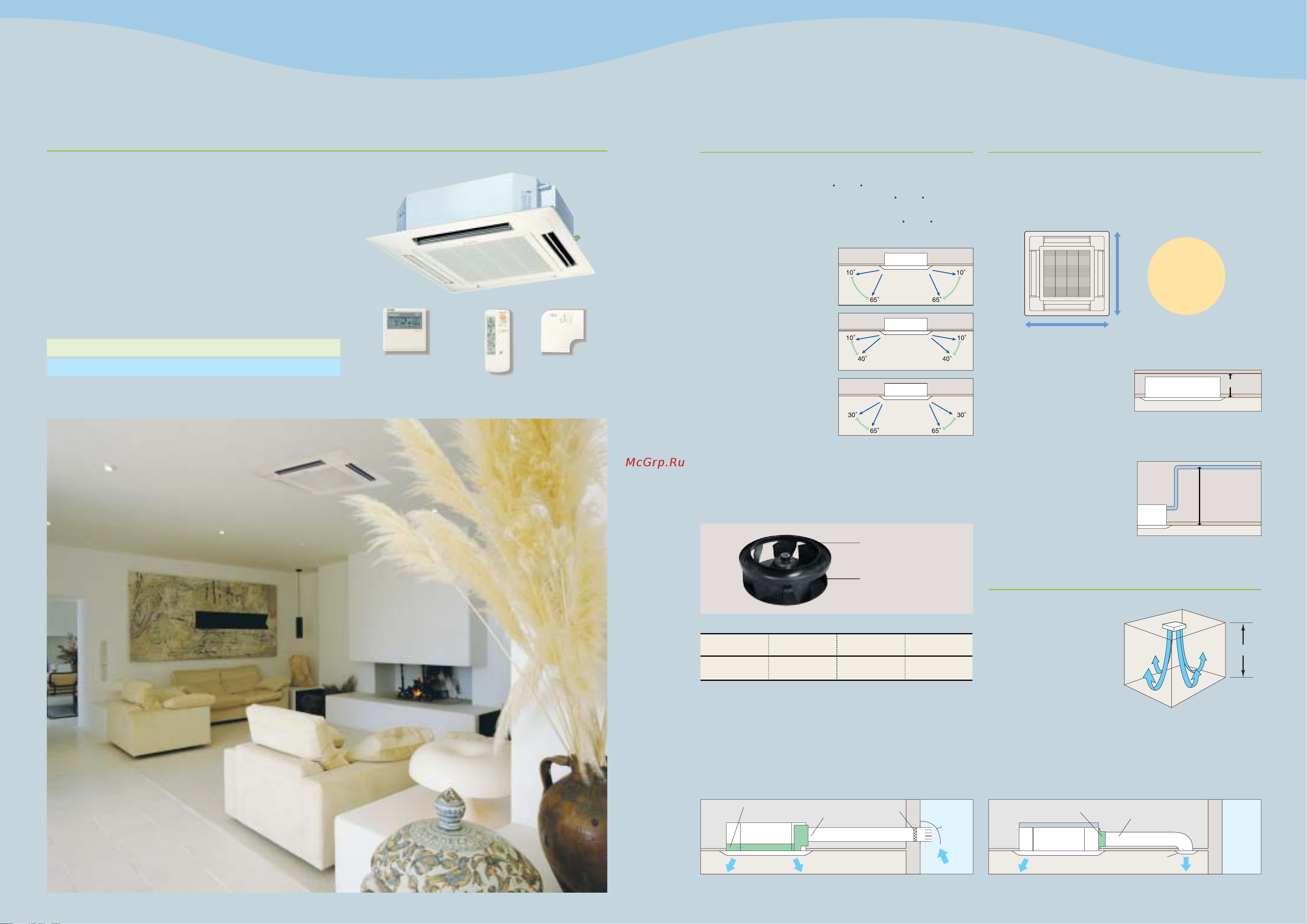

Ceiling-mounted cassette type
Ceiling-mounted cassette type
3.5 kW class
FCQ35BVE
5.0 kW class
FCQ50BVE
6.0 kW class
FCQ60BVE
7.1 kW class
FCQ71BVE
The ideal air conditioner for installation inside
narrow false ceilings—with only the decoration
panel visible after installation. A simple design
makes it comfortable to the public eye in shops and
small offices in tenant buildings, as well as right at
home in the living rooms with false ceilings found in
multi-storey apartment blocks.
Specially designed for false ceilings—for a smooth, modern interior finish
Comfort and quietness
Standard: a swing range of 10 to 65
Draft prevention: a limited swing range of 10 to 40 prevents
airflow from blowing directly onto people.
Soiling prevention: a limited swing range of 30 to 65
prevents ceilings from becoming dirty due to direct airflow.
Three convenient patterns for auto-swing operation
The turbofan was designed using advanced aviation
technology to reduce draft resistance inside the unit,
achieving quiet sound levels of 33/29 dB (A) to 35/30 dB (A).
Quiet operation
Allows fresh air to be circulated using only the fan for
improved room ventilation. This is useful in buildings where
ventilation fans cannot be installed.
Optional fresh air intake kit
A chamber can be connected to the air conditioner to provide
additional airflow for crowded spaces or areas sensitive to
outside temperatures.
Optional branch duct chamber
Design flexibility
All models feature a decoration panel with the same compact
size and simple design for easier planning of lighting systems
and harmonising of interior décor.
Compact decoration panel
Installation flexibility
These models have the power
to provide a comfortable
airflow even with a ceiling
height of up to 3.8 m.
High-ceiling applications
The indoor units weigh only
24 kg and require an
installation space with a
height of just 245 mm.
Light and compact main units
An improved system provides increased lift for the drainpipe
of up to 750 mm from the
ceiling. This is convenient for
multi-storied buildings, which
have a large amount of other
piping and wiring inside the
ceiling.
High-lift drainpipe
Standard
Draft prevention
Soiling prevention
950
mm
950
mm
Min. 245 mm
Same for
all models
750 mm
Max. 3.8 m
Intake duct
Fresh air intake kit
(Outdoor)
Hood
Air filter
Discharge duct
Branch duct chamber
Discharge panel
Note: The intake duct, hood, air filter, insect screen, fireproof damper, etc. should be
obtained locally if required.
Note: The discharge duct, discharge panel, etc. should be obtained locally if required.
Decoration panel is optional
Diffuser
3-dimensional blade
Option
Option
Signal receiver unit
Note: Remote controller
cables not included.
Cables should be
obtained locally.
Note: Wireless remote
controllers and signal
receiver units are sold
as a set.
FCQ35B
33/29 dB (A)
FCQ50B
33/29 dB (A)
FCQ60B
35/30 dB (A)
FCQ71B
35/30 dB (A)
(H/L)
