7 8

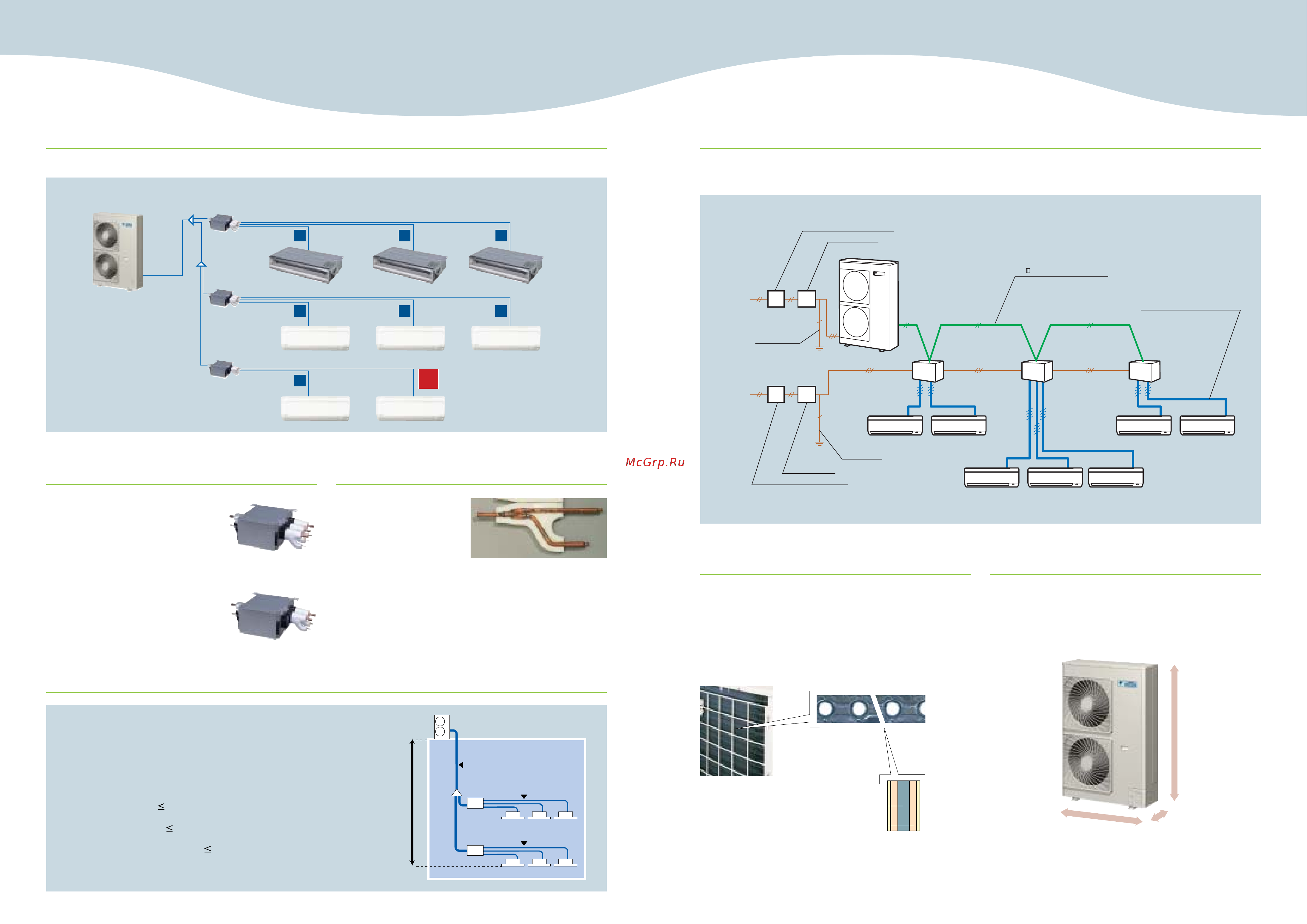

A BP unit is an innovative
development which allows Super
Multi Plus outdoor units to be
connected to a wide range of
different indoor unit types. A BP
unit has the ability to precisely
vary refrigerant volume to meet
the cooling requirements of
individual room spaces. The
improved BP unit is easier to
disassemble, making repairing
and recycling simpler.
Optional REFNET joint:
KHRP26A22T
3 ports BPMKS967B3B
2 ports BPMKS967B2B
The REFNET joint both
reduces the amount of
work involved in
installation and
increases the reliability
of the system.
Total main piping length
Total branch piping length
Total main and branch piping length
55 m
90 m
145 m
(55 + 90)
The outdoor unit and the BP units operate from separate single-phase power supplies, so no power supply wiring is needed
between them. The size of the wiring pipe from the outdoor unit to the BP units can be reduced, making installation easier.
BP unit REFNET joint
Simplified electrical wiring connection
The outdoor unit’s heat exchanger fins are processed using a
special anticorrosion treatment. The surface is covered with a
thin acrylic resin layer to enhance the fins’ resistance to acid
rain and salt corrosion. A hydrophilic film layer also prevents
rust caused by the run off of water droplets. Additional
durability is provided by a rustproof steel sheet on the bottom
of the unit.
Durable outdoor unit
A single high-capacity outdoor unit can drive up to 8 indoor
units, making it powerful enough to air-condition a whole
residence. This powerful unit can be easily installed on a
balcony with its slimline design, which measures (H) 1,345 x
(W) 900 x (D) 320 mm.
Space saving
A maximum total piping length of 145 m offers flexibility in the choice of
installation positions for the indoor units, and greatly simplifies system
planning.
The Super Multi Plus E Series is connectable to up to 8 indoor units. While the BP unit and the REFNET
joint make installation simple, long piping length and simplified wiring broaden design flexibility.
Thin refrigerant piping makes handling and connecting easier, resulting in significantly reduced installation time.
As many as 8 indoor units can be connected to a single outdoor unit
Long refrigerant piping
Piping length for RMKS160E
Note: Refrigerant charge is required. (See page 23)
units
8
>> 7 indoor units for a 14 kW installation >> 5 indoor units for a 11.2 kW installation
1
2
3
4
5
6
7
30 m
Max. height
difference
Main piping
BP unit
BP unit
Branch piping
Branch piping
BP unit
(2 ports)
Outdoor unit
Safety breaker
Power
supply
Power
supply
BP unit
(2 ports)
BP unit
(3 ports)
30 A
15 A
Transmission line (4 lines)
(
Indoor unit--BP / including earth wire
)
Earth wire
Earth wire
Earth leakage circuit breaker
Safety breaker
Earth leakage circuit breaker
For outdoor unit 15.5 kW installation
D transmission line (2 lines)
(Outdoor unit--BP, BP--BP)
900 mm
320 mm
1,345 mm
Design flexibility and easy installation
Design flexibility and easy installation
Heat exchanger fin
Hydrophilic film
Aluminium
Corrosion-resistant
acrylic resin
Cross section of
anticorrosion-treated fin
