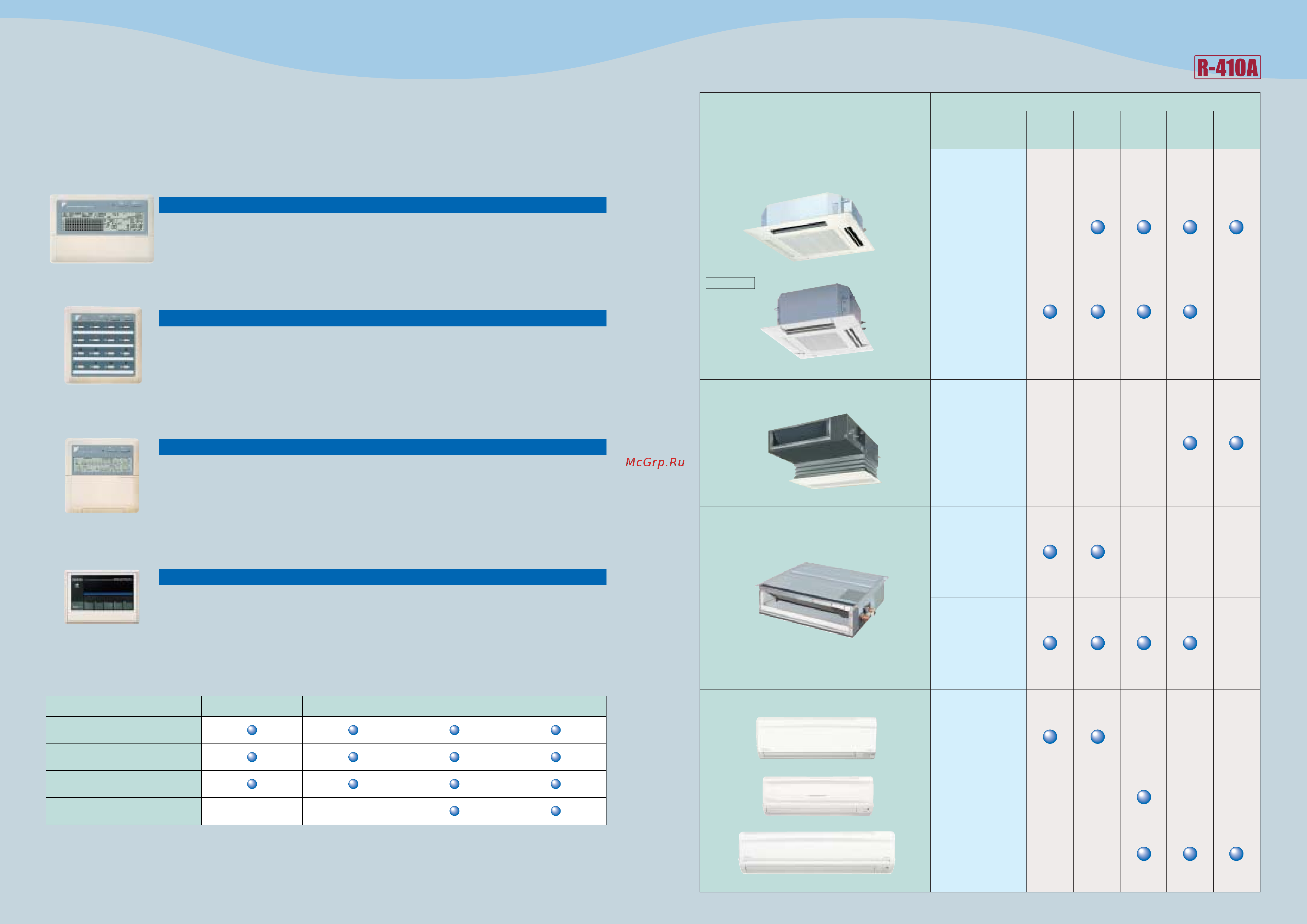

Centralised Control system
Centralised Control system
Indoor unit lineup
Indoor unit lineup
Both Super Multi Plus and VRV systems are compatible with the Building
Air-Conditioning Control System. This allows Super Multi Plus and VRV units to be
conveniently operated from the same common controller when the two systems are
installed together in a building.
Type
Ceiling-mounted cassette type
Duct-connected type
Ceiling-mounted built-in type
Wall-mounted type
Model name 25 35 50 60 71
Rated capacity (kW) 2.5 3.5 5.0 6.0 7.1
Cooling only
FCQ-BVE
FBQ-BV1
FTKS-DVM
FTKS-FVM
Compatible indoor units
FCQ, FFQ FDKSFBQ FTKS
Central remote controller*
1
Unified on/off controller*
1
Schedule timer*
1
5-room centralised controller*
2
FFQ-BV1B
FDKS-C(A)VMB
(900/1,100 mm width type)
FDKS-EAVMB
(700 mm width type)
FTKS-BVMA
600 x 600
Central remote controller
DCS302CA61
Unified on/off controller
DCS301BA61
Schedule timer
DST301BA61
5-room centralised controller
KRC72
• Max. 64 groups controllable
• Zone control
• Malfunction code display
64 groups (zones) of indoor units can be controlled individually same as
LCD remote controller.
• Max. 16 groups controllable
• Operating status indication
• Centralised control indication
16 groups of indoor units can be operated simultaneously/individually.
• Max. 128 indoor units controllable
• The start and stop time for twice a day can be set for the week in a unit of one minute.
128 indoor units can be operated on a 7-day programmed schedule.
• Max. 5 indoor units controllable
• Contribute to save energy by eliminating turn-off of lamps.
5 indoor units can be controlled. This is a low cost system which can only
control about on/off.
Central remote controller (option)
Unified on/off controller (option)
Schedule timer (option)
5-room centralised controller (option)
Notes: *1. An interface adaptor (KRP928B2S or DTA112B51) is also required for each indoor unit.
*2. A wiring adaptor (KRP413A1S) is also required for each indoor unit.
