English 13
Dear Customer,
Please read and comply with
these instructions prior to the
initial operation of your appli-
ance. Retain these operating instructions
for future reference or for subsequent pos-
sessors.
Operating elements 13
Safety instructions 13
Use as intended 14
Environmental protection 14
Start up 14
Operation 14
Maintenance and care 14
Consumables 17
Faults 17
Specifications 18
EC Declaration of Conformity 19
Warranty 19
Spare parts 19

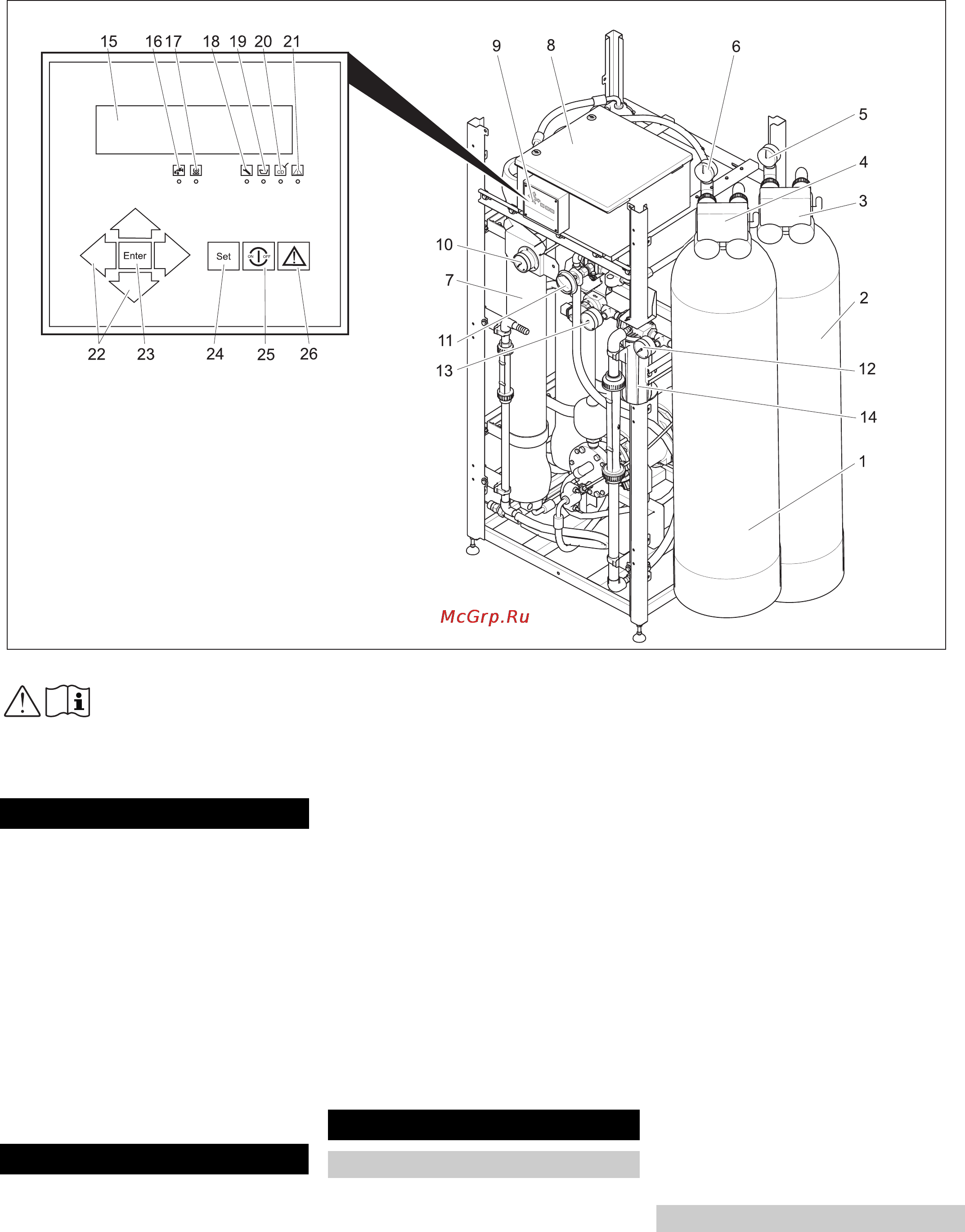

1 Media filter
2 Active carbon filter
3 Control active carbon filter
4 Control for media filter
5 Manometer for input pressure of active
carbon filter
6 Manometer for input pressure for media
filter
7 RO filter unit
8 Control board
9 Operating field
10 Manometre for pump pressure
11 Pressure regulation valve
12 Manometer for inlet pressure of fine fil-
ter
13 Manometer for output pressure of fine
filter
14 Fine filter
15 Display
16 LED "inlet valve active"
17 LED "HP pump active"
18 LED "Maintenance"
19 LED "Chemical dosing active"
20 LED "CD" (conductivity too high)
21 LED "Interruption"
22 Navigation keys
23 ENTER key
24 SET key
25 ON/OFF key
26 QUIT key
– Drinking water quality can only be en-
sured if the plant is monitored at regular
intervals. Please conduct the checks
given in this operating instructions man-
ual according to the schedule.
– Please get the drinking water quality
checked at regular intervals.
– Follow the drinking water regulations.
– Please wear safety gloves and safety
goggles while handling acid-resistant
chemicals.
– Store the chemicals in a cool and dry
place and at temperatures above 5°C.
– Store chemicals away from the reaqch
of children.
– Ensure proper ventilation in the room
while handling chemicals.
– There must be a washing room close-
by.
– Keep an eye-washing liquid bottle
handy.
– Please follow the safety instructions on
the EC data sheet and the accident
sheet of the concerned chemicals.
– The electrical connections must be
done by an electrician according to IEC
60364-1.
– Never touch damaged or ripped mains
cables. If required, pull out the plug
from the socket immediately.
– Never operate the unit with damaged
cable.
The following symbols are used in this op-
erating manual:
Danger
