Daikin FTXS20D3VMW [7/24] Wiring diagram
![Daikin FTXS20D3VMW [7/24] Wiring diagram](/views2/1780135/page7/bg7.png)
• Indoor Units • R-410A • FTKS-D3VMW_D2V1W
1
5
• Split Sky Air • Indoor Units7

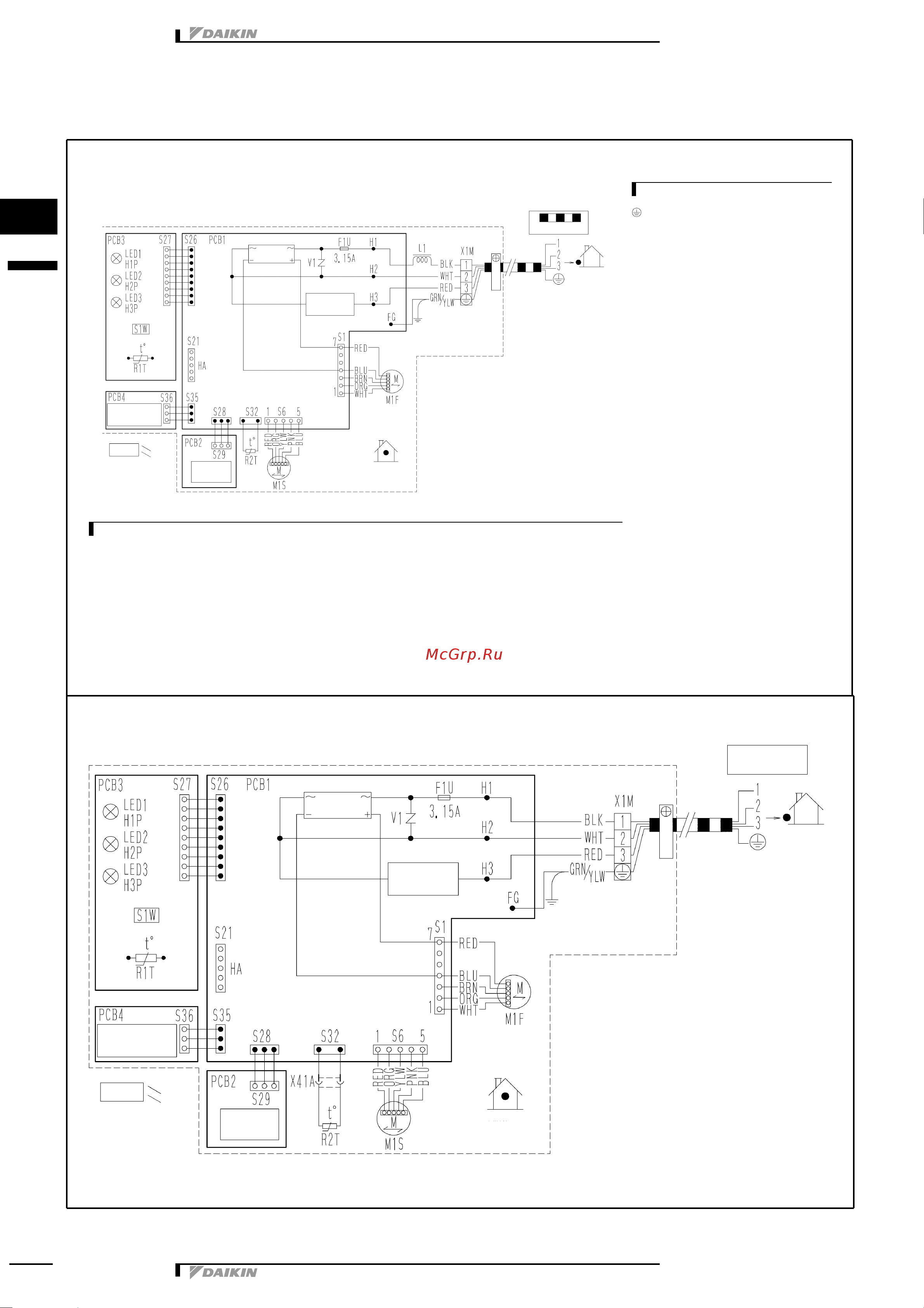

5 Wiring diagram
5 - 1 Wiring diagram
FTK/XS20,25,35DW/L
3D047523
Rectifier
Wireless
remote
controller
indoor
outdoor
Transmission
circuit
Field wiring
Signal receiver
Intelligent eye sensor
LEGEND
Protective earth
FG Frame ground
F1U Fuse
H1P~H3P Pilot lamp
L1 Coil
M1F Fan motor
M1S Swing motor
PCB1~PCB4 Printed circuit board
R1T, R2T Thermistor
S1~S38 Connector
S1W Operation switch
X1M Terminal strip
NOTES
1 Size: length 70 x width 120.
2 Refer to purchasing specification AS303002, unless otherwise specified.
3 This drawing was drawn on CAD system.
4 Caution: Note that operation will restart automatically if the main power supply is turned off and then back on again.
3D051652
FTK/XS50D
g
Field wiring
Outdoor
Indoor
Infrared remote
control
R
: Protective earth
FG : Frame ground
F1U : Fuse
H1P∼H3P : Pilot lamp
M1F : Fan motor
M1S : Swing motor
PCB1∼PCB4 : Printed circuit board
R1T,R2T : Thermistor
S1∼S38, X41A : Connector
S1W : Operation switch
X1M : Terminal strip
Signal
receiver
CAUTION
Note that operation will restart
automatically if the main power
supply is turned off and then back
on again.
Intelligent eye
sensor
Rectifier
Transmission
circuit
