3
1
6
• Split Sky Air • Indoor Units 8
• Indoor Units • R-410A • FTKS-D3VMW_D2V1W

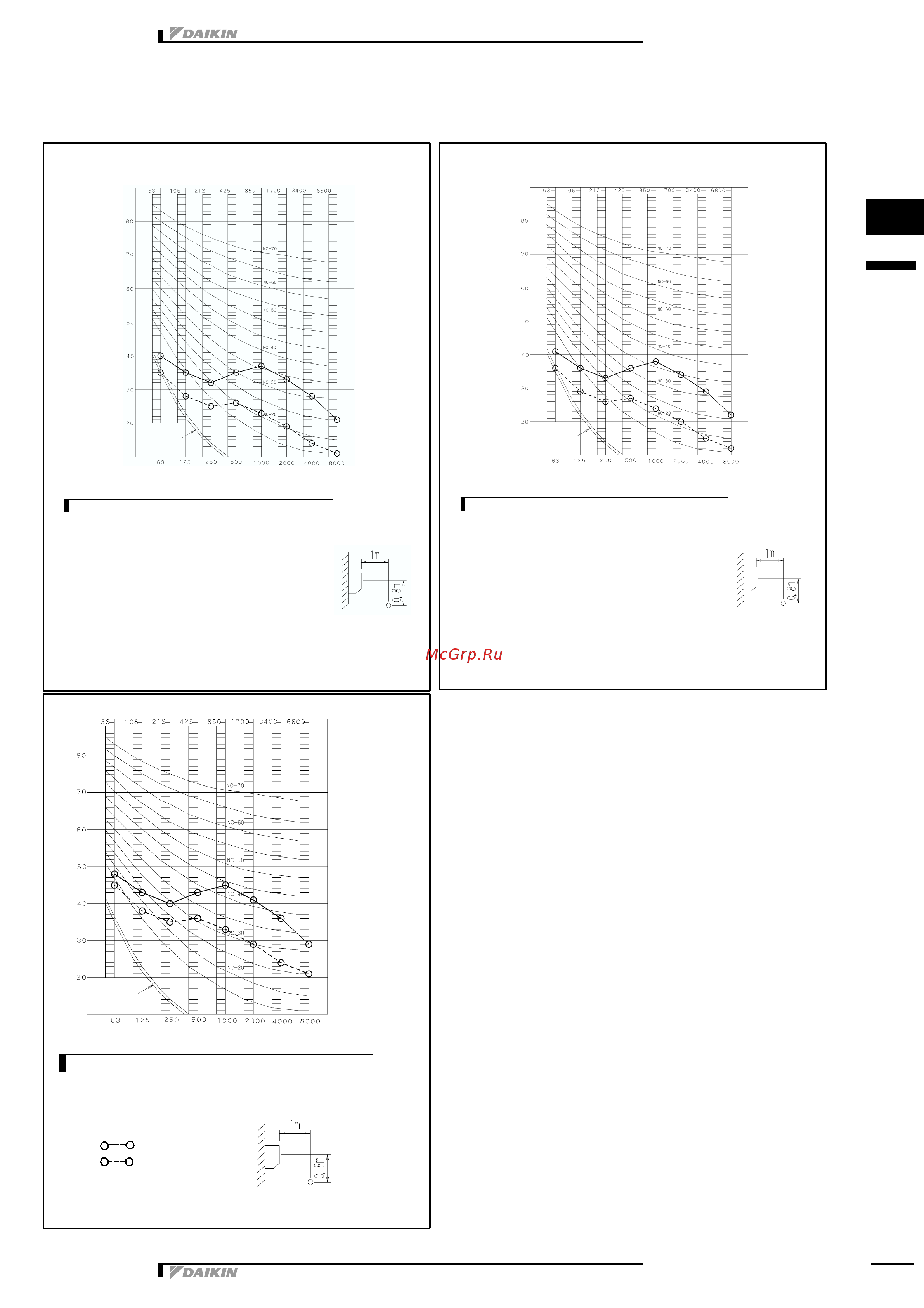

6 Sound data
6 - 1 Sound pressure spectrum
FTKS20,25DW/L
4D048244
Approximate
threshold hearing
for continuous
noise
Octave band center frequency
Octave band sound pressure level (0dB = 0.0002µ bar)
NOTES
1 Measurement was taken in an anechoic room.
2 The operation noise measuring method is in accordance with
JISC9612.
3 Operating conditions:
Power source = 230 V, 50 Hz
o------o H (A = 38) and o- - - -o L (A = 25)
4 Operation noise differs with operation and ambient
conditions.
Location of
microphone
FTKS35DW/L
4D048245A
Approximate
threshold hearing
for continuous
noise
Octave band center frequency
Octave band sound pressure level (0dB = 0.0002µbar)
NOTES
1 Measurement was taken in an anechoic room.
2 The operation noise measuring method is in accordance with
JISC9612.
3 Operating conditions:
Power source = 230/220 V, 50/60 Hz
o------o H (A = 39) and o- - - -o L (A = 26)
4 Operation noise differs with operation and ambient
conditions.
Location of
microphone
4D051221
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FTKS50D
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone
