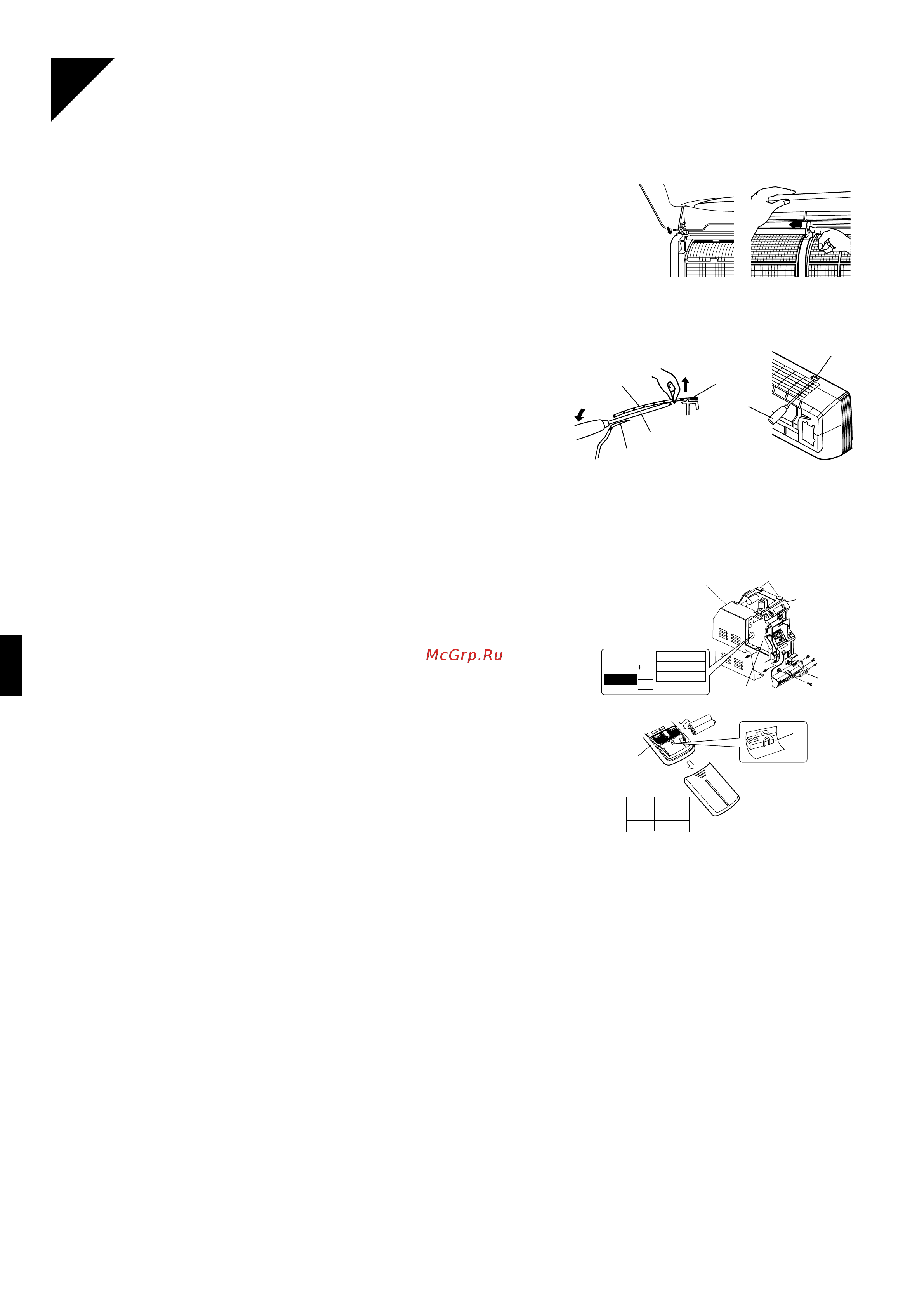

3 ■English
Installation Tips
2.
How to attach the front grille.
1) Set the 3 keys of the front grille into the slots and push them in all the way.
2) Supporting the front grille with one hand, fit the lock by sliding up the knob with
the other hand.
3) Close the front grille slowly in this state.
(Push the grille at the 3 points, two at both sides and in the middle.)
3.
How to remove the front panel.
1) Open the front grille.
2) Remove the screws (2 pcs) on the front panel.
3) Pull the lower part of the front panel toward you, then remove the front
panel completely.
(There are 2 hooks on the upper part.)
If it is difficult to remove, open the front grille and raise the top grid, using
a screwdriver, to unhook the hooks.
4.
How to attach the front panel.
1) Attach the front panel to the front grille, and lock the upper hooks (2 points) securely.
2) Tighten the screws (2 pcs) on the front panel.
3) Close the front grille.
5.
How to set te different addresses.
1) When two indoor units are installed in one room, the two wireless remote
controllers can be set for different addresses.
6.
PCB in the indoor unit.
1) Remove the front panel.
2) Remove the sensor parts cover (2-screws), then remove the electric parts
box (1-screw).
3) Slide the metalic cover to remove it. (4-claws on the electric parts box).
4) Cut the jumper JA on PCB.
7.
Wireless remote controller.
1) Cut the jumper J4.
Slide up the knob.
Fit the key
into the slot.
Filter guide
Screwdriver
Upper grille
Raise and
remove
Hook
Screwdriver
Upper hook
Metallic cover
Claws (4 point)
Electric
parts
box
Sensor
parts
cover
PCB
JA
JB
JC
1
2
ADDRESS : JA
EXIST
CUT
ADDRESS
J4
ADDRESS
EXIST 1
CUT 2
J4
Wireless
remote
controller
01_EN_2P098777-1.fm Page 3 Friday, October 18, 2002 1:26 PM
