■English 4
Indoor Unit

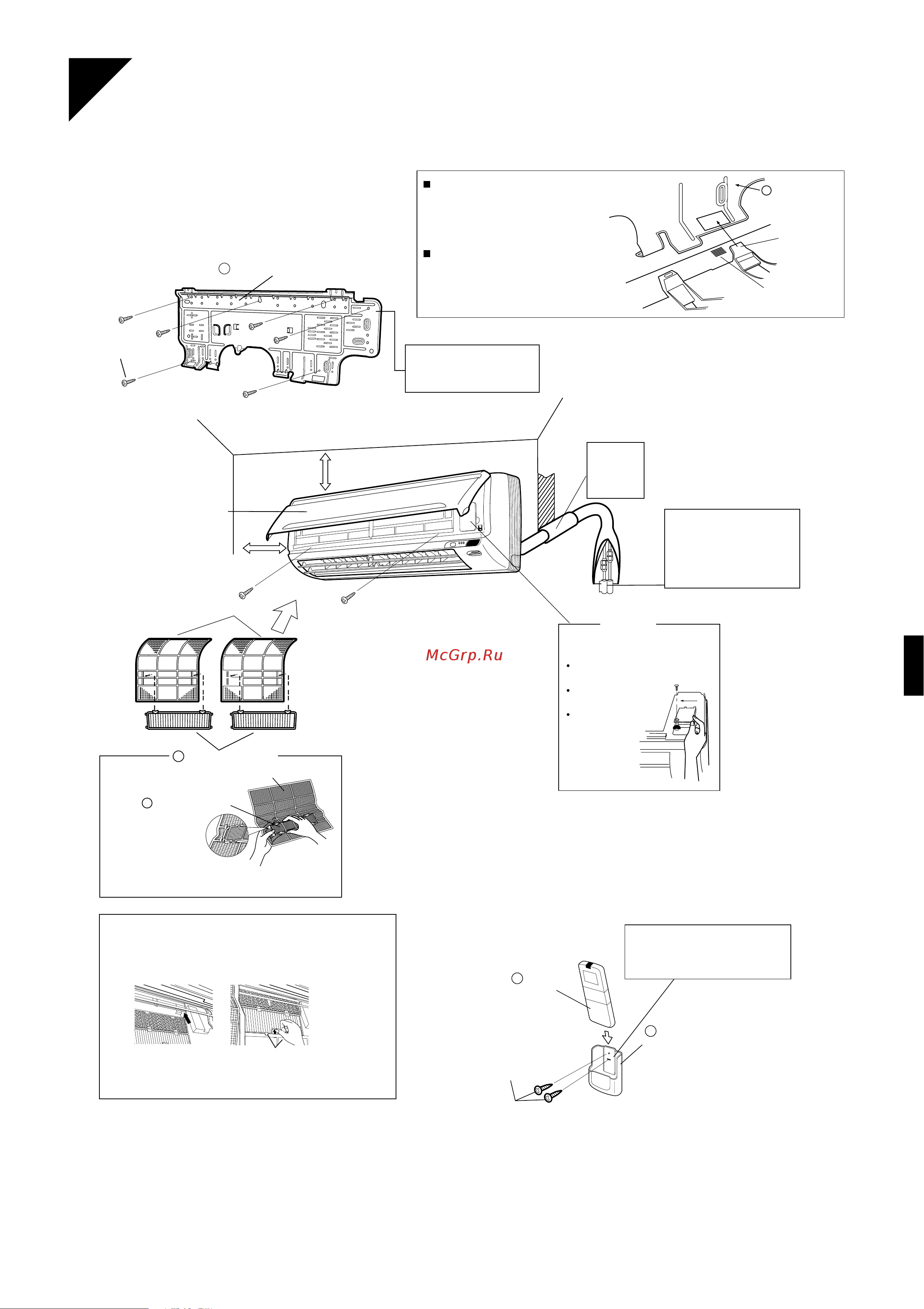

Installation Drawings
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that no
gap is left in the insulation
pipe’s cut line.
Caulk
pipe hole
gap
with putty.
30 mm or more from ceiling
Front grille
50 mm or more from walls
(on both sides)
M4 × 25L
The mounting plate
should be installed on a
wall which can support the
weight of the indoor unit.
A Mounting plate
A Mounting
plate
Clip
Mark (rear side)
Bottom frame
Front panel
How to attach the indoor unit.
Hook the claws of the bottom frame
to the mounting plate.
If the claws are difficult to hook,
remove the front panel.
How to remove the indoor unit.
Push up the marked area (at the
lower part of the front panel) to
release the claws. If it is difficult to
release, remove the front panel.
This service lid is an
open/close type.
Remove the screws on
the service lid.
Slide the service lid
leftward.
Rotate the service
lid upward.
Service lid
Two claws
Turn the photocatalytic deodorizing filter (gray) so that it is
facing up, then attach it by running it along the indoor
unit’s guide, push slightly on the grips, align the two claws
with the guide holes, and insert the claws on the grips.
Install air puriying
filter on air filter
Air filters
B
Air purifying filters
Air filter
B
Air purifying filter
(FTX25/35, FTK25/35
ATX25/35, ATK25/35)
(FTXS25/35, FTKS25/35
ATXS25/35, ATKS25/35)
D
(M3 × 20L)
E
Remote
controller
holder
Wireless
remote
controller
Before screwing the remote
control holder to the wall, make
sure that control signals are
properly received by indoor unit.
Appearance of the indoor unit may
differ from some models.
01_EN_2P098777-1.fm Page 4 Friday, October 18, 2002 1:26 PM
