5 ■English

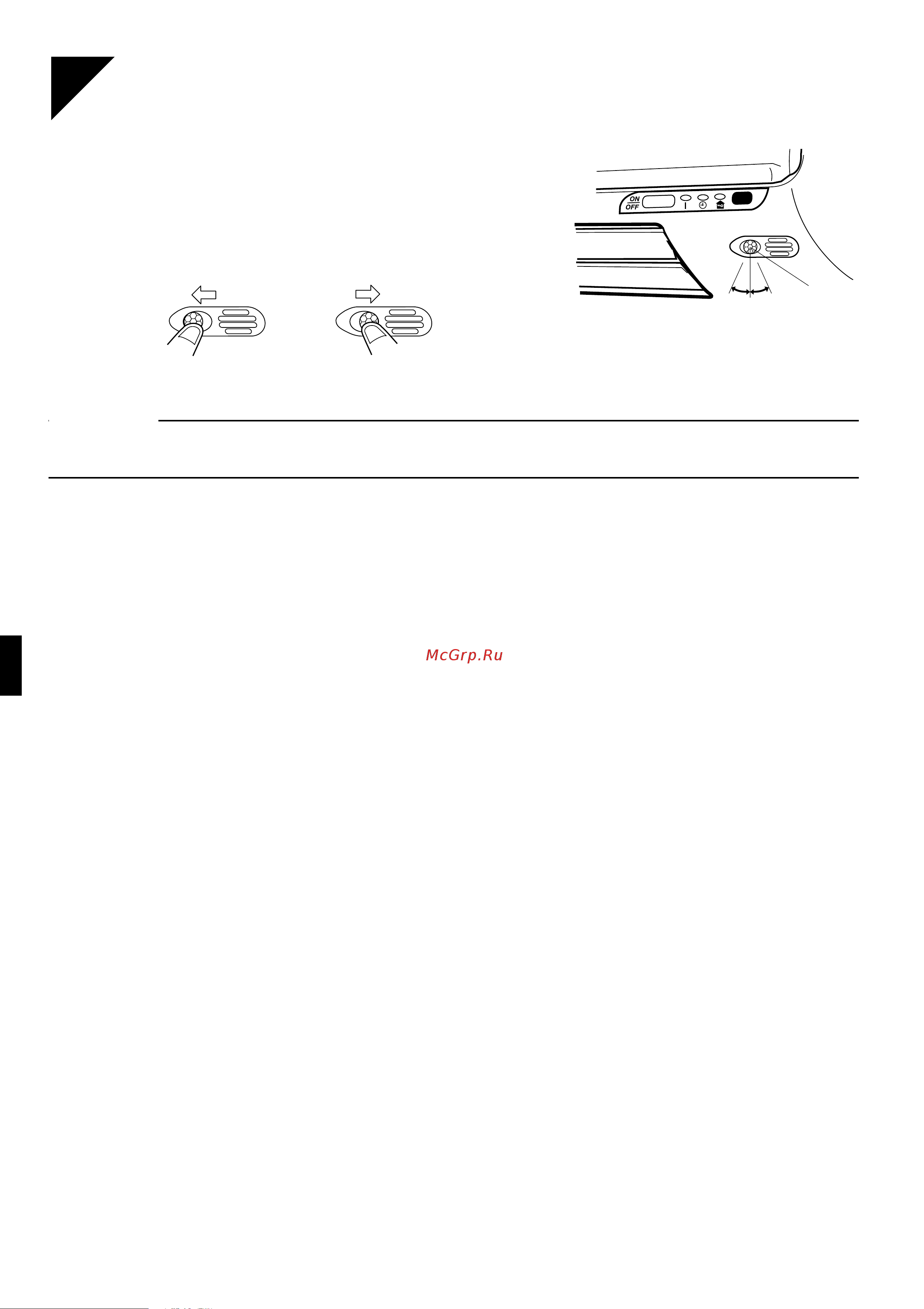

Intelligent-Eye Sensor
1.
Adjusting the angle.
1) Once installation of the indoor unit is complete, adjust the angle of the
Intelligent-eye sensor to ensure the detection area properly covers the
room. (Adjustable angle: 15
°
to right and left of centre)
2) Gently push and slide the sensor to adjust the angle. Aim so that the sen-
sor is pointing to the centre of the room, or to the part of the room that is
most frequently used.
3) After adjusting the angle, gently wipe the sensor with a clean cloth, being careful not to scratch the sensor.
■
■■
■
Caution
1) Do not hit or violently push the Intelligent-eye sensor. This can lead to damage and malfunction.
2) Do not place large objects near the sensor. Also keep heating units or humidifiers outside the sensor’s detection area.
Intelligent-eye
sensor
15˚15˚
Moving the sensor to the left Moving the sensor to the right
01_EN_2P098777-1.fm Page 5 Friday, October 18, 2002 1:26 PM
