![Daikin FTXS42J2V1B [244/302] Power supply waveform check](/img/pdf.png)
Daikin FTXS42J2V1B [244/302] Power supply waveform check
![Daikin FFQ50B9V1B [244/302] Power supply waveform check](/views2/1781055/page244/bgf4.png)
Check SiBE121135_A
233 Service Diagnosis
8.5 Power Supply Waveform Check
Check No.11 Measure the power supply waveform between No. 1 and No. 2 on the terminal board, and check
the waveform disturbance.

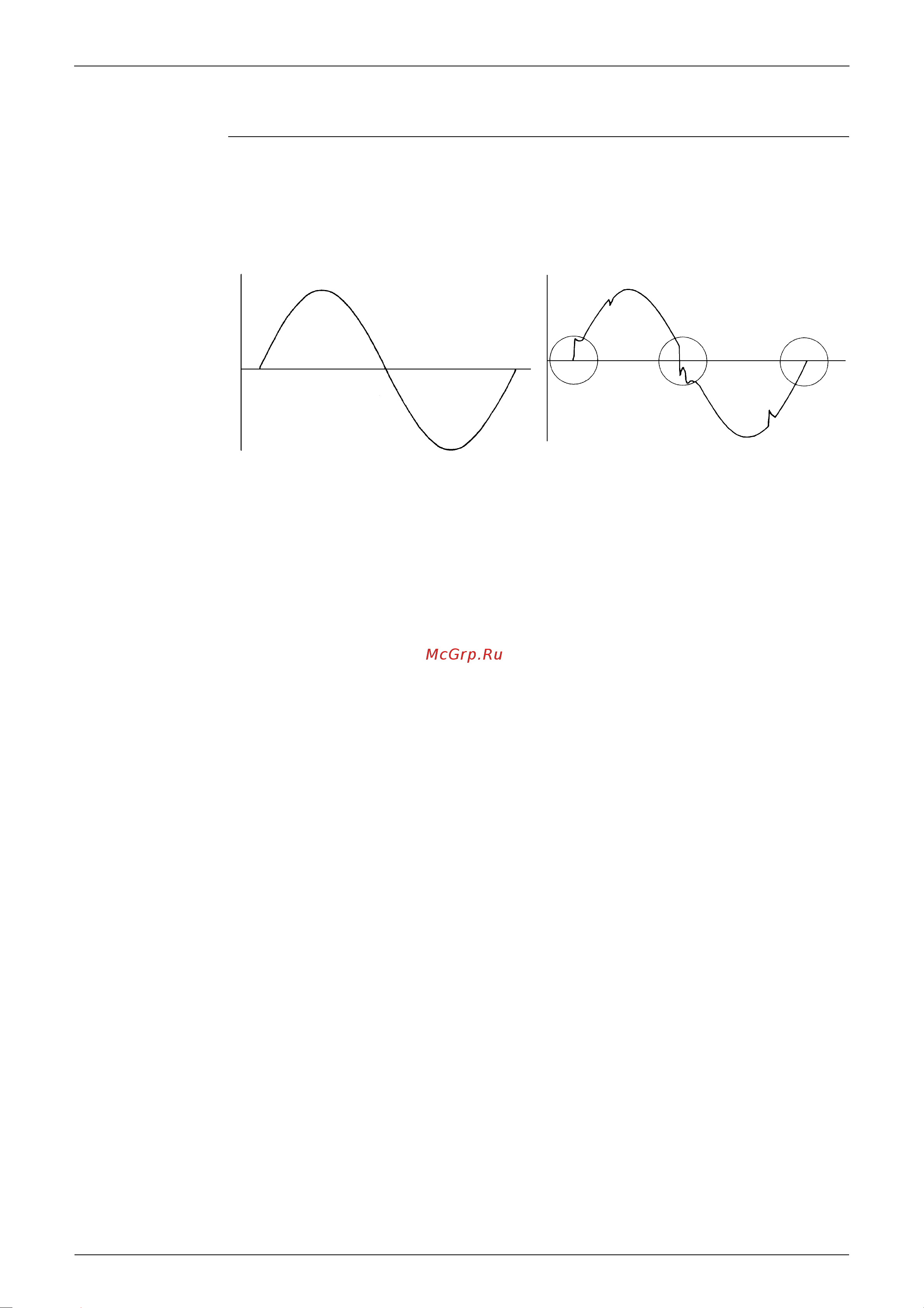

Check to see if the power supply waveform is a sine wave (Fig.1).
Check to see if there is waveform disturbance near the zero cross (sections circled in Fig.2)
[Fig.1] [Fig.2]
(R1736)
(R1444)
