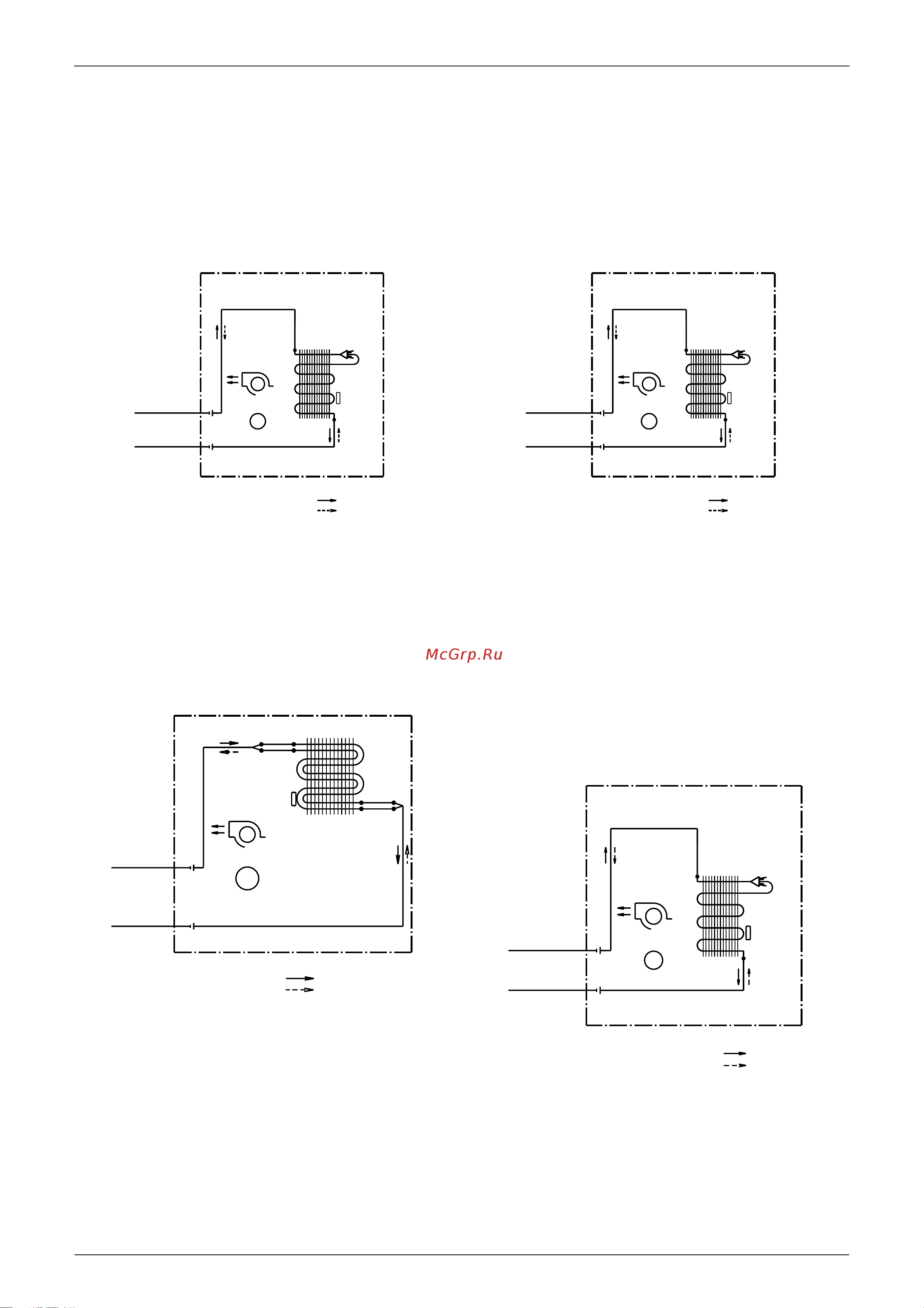

Piping Diagrams SiBE121135_A
269 Appendix
1.2 Indoor Unit
1.2.1 Wall Mounted Type
FTXG25/35JV1BW(A) FTXG50JV1BW(A)
FTXS20/25K2V1B, CTXS15/35K2V1B FTXS35/42K2V1B, FTXS25/35/42J2V1B
ATXS20/25/35/42G2V1B
INDOOR UNIT
6.4CuT
HEAT EXCHANGER
CROSS FLOW FAN
FIELD PIPING
6.4CuT
M
FAN MOTOR
FIELD PIPING
9.5CuT
9.5CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
4D065855B
INDOOR UNIT
6.4CuT
HEAT EXCHANGER
CROSS FLOW FAN
FIELD PIPING
6.4CuT
M
FAN MOTOR
FIELD PIPING
12.7CuT
9.5CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
4D065856C
INDOOR UNIT
HEAT EXCHANGER
7.0CuT
4.8CuT
7.0CuT
7.0CuT
7.0CuT
CROSS FLOW FAN
M
FAN MOTOR
9.5CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
9.5CuT
)
4D058926Q
INDOOR UNIT
6.4CuT
HEAT EXCHANGER
CROSS FLOW FAN
M
FAN MOTOR
9.5CuT
REFRIGERANT FLOW
COOLING
HEATING
FIELD PIPING
6.4CuT
FIELD PIPING
9.5CuT
THERMISTOR
ON HEAT EXCH.
4D058897K
