Fagor 6FI-4GLSX [10/52] Connecting the hob to the mains

OPERATION

Then:

– open the gas flow with a knob and light the adjusted burner,

– set the knob in the simmering position . and then, without changing that position,

remove it from the tap's mandrel

 turn the adjusting screw "A" (Fig. 13) and observe the flame; set such a height of a flame

so as it will not be extinguished by a small draught and while quickly turning the knob

from full flame position to the economical flame position and vice versa

 a knob is properly adjusted when the flame cone is green-blue and its height is about 2-

4mm;

 if there are significant pressure changes in the gas supply system (flame height changes

in a full flow setting), the economical flame should be set with the low gas pressure in

such a way that it will not be extinguished during normal operation

 after adjustment, put on the knob and turn off the flame.

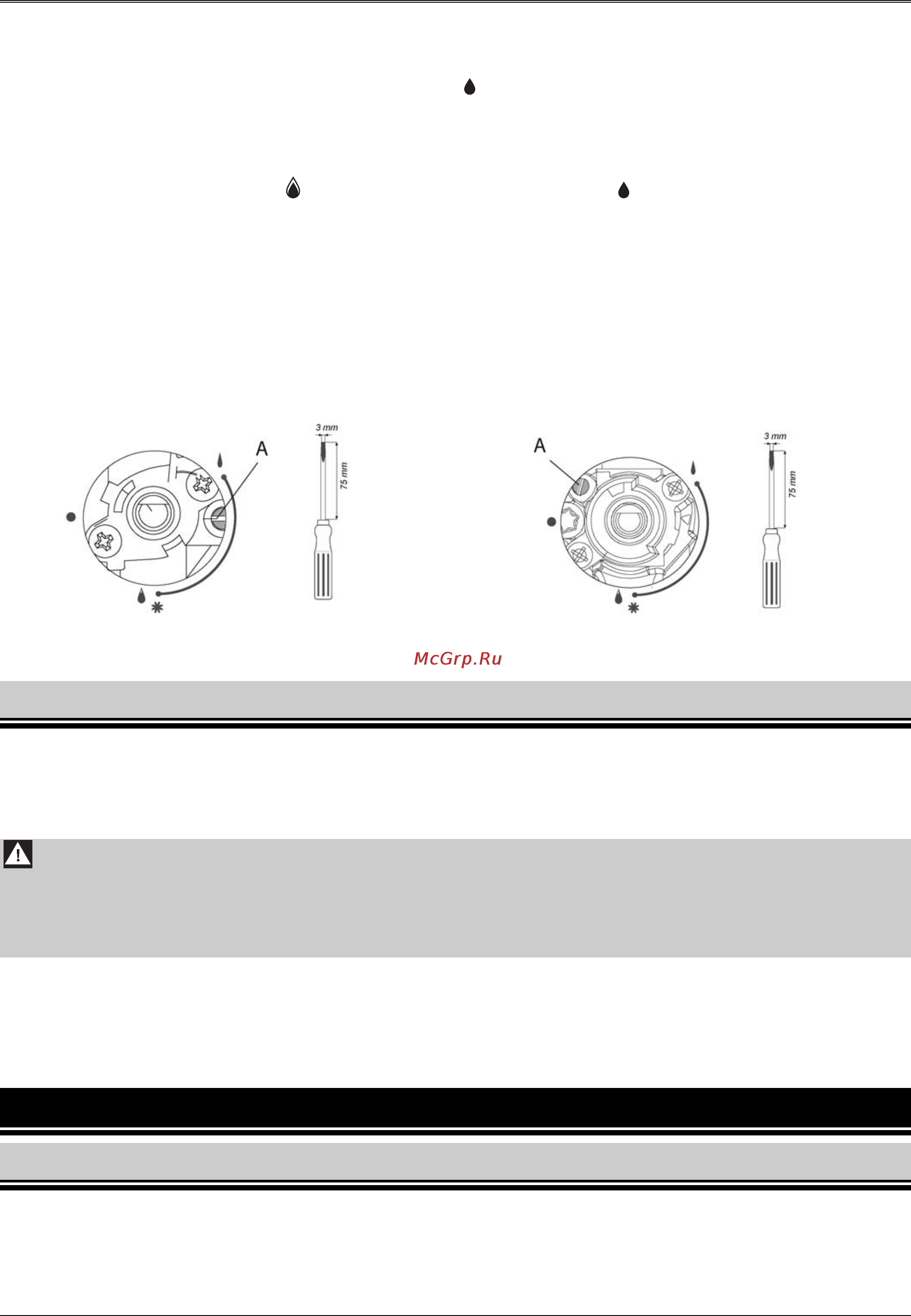

Knob without protection Knob with protection

Fig.13

2.7 CONNECTING THE HOB TO THE MAINS

The hob is equipped with a cord without a plug. Before connecting the hob to the mains make sure that:

 mains voltage complies with data found on the rating plate,

 power of the electric system is sufficient when compared with the power consumption of the

hob.

Attention !

1. The plug should be installed by a qualified authorised fitter.

2. The hob socket must be easily accessible for the user.

3. Ensure that the supply cord does not come into contact with hot parts of the hob.

The hob should be connected to the socket with a properly connected protecting terminal. Connecting

the hob to the socket without a protecting contact creates a risk of electric shock in case of a failure of

the electric system.

If the supply cord is damaged, it must be replaced. Contact the manufacturer, a service workshop or a

qualified person to avoid danger.

3 OPERATION

3.1 GAS BURNERS

 Never take off the grates or place pots and pans directly on burners.

 Prevent pots and pans boiling over and flooding burners.

 Before opening a gas system or gas bottle valve make sure that all control knobs are closed.
