OPERATION

 For the proper operation ensure that burners and igniters are clean and dry.

 If the hob is equipped with a flame failure protection after igniting the burner keep the control

knob fully pushed for a while to activate the protection.

 Do not overload the grates.

 Never touch hot burners, graters, pots and pans.

 To obtain proper and economical burners operation make sure that:

 flame height is adequate,

 pots and pans are properly selected.

Burner without

flame failure

protection

Burner with

flame failure

protection

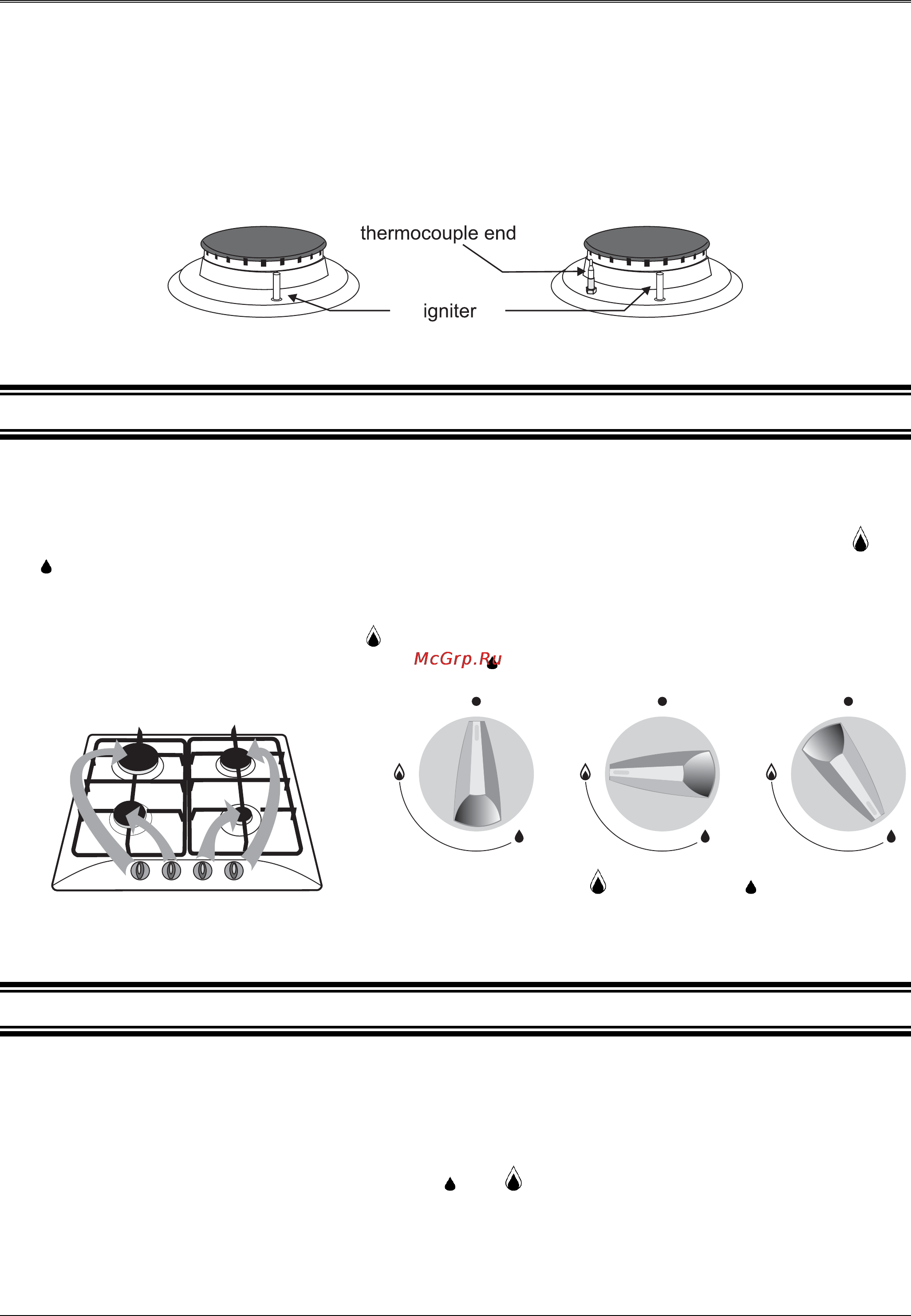

Fig. 14

3.1.1 FLAME ADJUSTING

 Gas flow in individual burners is opened and closed using control knobs.

 Before igniting the burner make sure that the corresponding control knob is to be operated.

 Corresponding burners and control knobs are shown in Fig. 15.

 Flame height depends on the control knob position (Fig. 16). Adjust the flame only between and

 Flame should not spread beyond the bottom of the vessel but spread on 2/3 of the vessel’s bottom.

This will ensure gas efficiency and the flame will not singe pots and pans.

 When the control knob is in position the flame is high. High flame should be used until a liquid

starts boiling and then turn down the flame to small

(economical) for further cooking.

0 – burner turned off;

– high flame; – small flame

(economical)

Fig. 15 Fig. 16

3.1.2 IGNITING BURNERS

Hobs: 6FID-31MLX; 6FID-4GLX; 6FID-4GLB

 push the knob of a burner until it stops, then turn it anticlockwise and push down until the burner

ignites

 after ignition release the knob

 adjust to the desired flame height between

and

Hobs: 6FI-4GLSX; 6FID-4GLSX; 6FI-4GLSTX;6FID-31MLSX

 push the knob of a burner until it stops, then turn it anticlockwise and push down until the burner

ignites, do not release the knob for another 5 seconds in order to activate flame failure

protection
