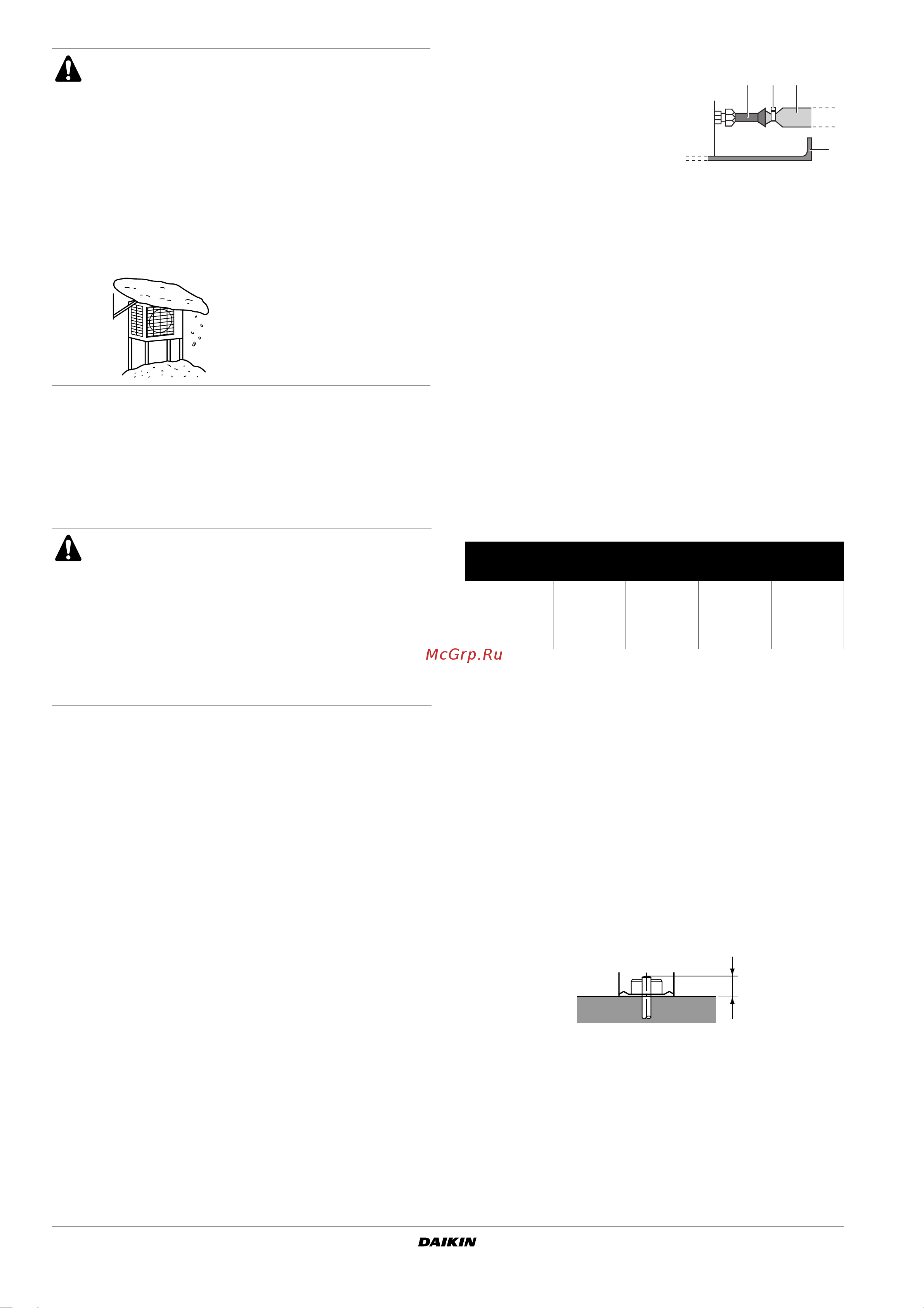

Installation manual
3
4AMX80E7V3B
R410A Split series
4PW38479-1
INDOOR/OUTDOOR UNIT INSTALLATION
DRAWINGS (See figure 1)
For installation of the indoor units, refer to the installation manual
which is provided with the units. The diagram shows a wall-mounted
indoor unit.
■ If the location does not have good drainage, place the unit on a
level mounting base (or a plastic pedestal). Install the outdoor
unit in a level position. Failure to do so may result in water
leakage or accumulation.
■ Also insulate the connection on the outdoor unit.
Use tape or insulating material on all connections to prevent air
from getting in between the copper piping and the insulation
tube. Be sure to do this if the outdoor unit is installed as shown
in the figure.
INSTALLATION
■ Install the unit horizontally.
■ The unit may be installed directly on a concrete verandah or a
solid place if drainage is good.
■ If the vibration may possibly be transmitted to the building, use a
vibration-proof rubber (field supply).
Connections (connection port)
Install the indoor unit according to the table below, which shows the
relationship between the class of indoor unit and the corresponding
port.
The total indoor unit class that can be connected to this unit:
Up to
14.5 kW
Refer to "How to use reducers" on page 7 for information on reducer
numbers and their shapes.
PRECAUTIONS ON INSTALLATION
■ Check the strength and level of the installation ground so that
the unit will not cause any operating vibration or noise after
installation.
■ Fix the unit securely by means of foundation bolts in accordance
with the foundation drawing. Prepare 4 sets of M8 or M10
foundation bolts, nuts and washers each (field supply).
■ It is best to screw in the foundation bolts until their length
remains 20 mm above the foundation surface.
CAUTION
When operating the air conditioner in a low outdoor
ambient temperature, be sure to follow the instructions
described below.
■ To prevent exposure to wind, install the outdoor unit
with its suction side facing the wall.
■ Never install the outdoor unit at a site where the
suction side may be exposed directly to wind.
■ To prevent exposure to wind, install a baffle plate on
the air discharge side of the outdoor unit.
■ In heavy snowfall areas, select an installation site
where the snow will not affect the unit.
Construct a large canopy.
Construct a pedestal.
Install the unit high enough off the
ground to prevent burying in snow.
CAUTION
■ Do not connect the embedded branch piping to
outdoor unit when only carrying out piping work
without connecting the indoor unit (in order to add
another indoor unit later).
Make sure no dirt or moisture gets into either side of
the embedded branch piping.
See "Refrigerant piping work" on page 6 for details.
■ It is not allowed to connect 1 indoor unit only.
Be sure to connect at least 2 indoor units.
1 Caulk pipe hole gap with putty.
2 Cut thermal insulation pipe to an appropriate length and wrap it
with tape, making sure that no gap is left in the insulation pipe's
cut line.
3 Wrap the insulation pipe with finishing tape from bottom to top.
4 Allow 30 cm of work space below the ceiling surface.
5 25 cm from wall. Allow space for piping and electrical servicing.
6 If there is danger of the unit falling or overturning, fix the unit with
foundation bolts, or with wire or other means.
7 Connection of the outdoor unit
8 Service cover
Port
Model A B C D
4AMX80 20
25
35
20
(1)
25
(1)
35
(1)
50
(1) Use no. 2 and 4 reducers to connect pipes.
20
(2)
25
(2)
35
(2)
50
(3)
(2) Use no. 5 and 6 reducers to connect pipes.
(3) Use no. 1 and 3 reducers to connect pipes.
20
(2)
25
(2)
35
(2)
50
(3)
123
4
1 Insulation tape
2 Clamping material
3 Insulation tube
4 Service lid
20
