Daikin RHBH16CB [100/112] Technical data

14 Technical data

Installer reference guide

100

RRLQ004~008CA + RHBH/X04+08CB

ROTEX HPSU low temperature Bi‑bloc

4P384979-1B – 2016.02

14.7 Operation range

14.7.1 Drain pan necessity

4D078990

1. Refer to psychometric chart for more information.

2. If condensation is expected, installation of EKHBDPCA2 - drainpan kit must be considered.

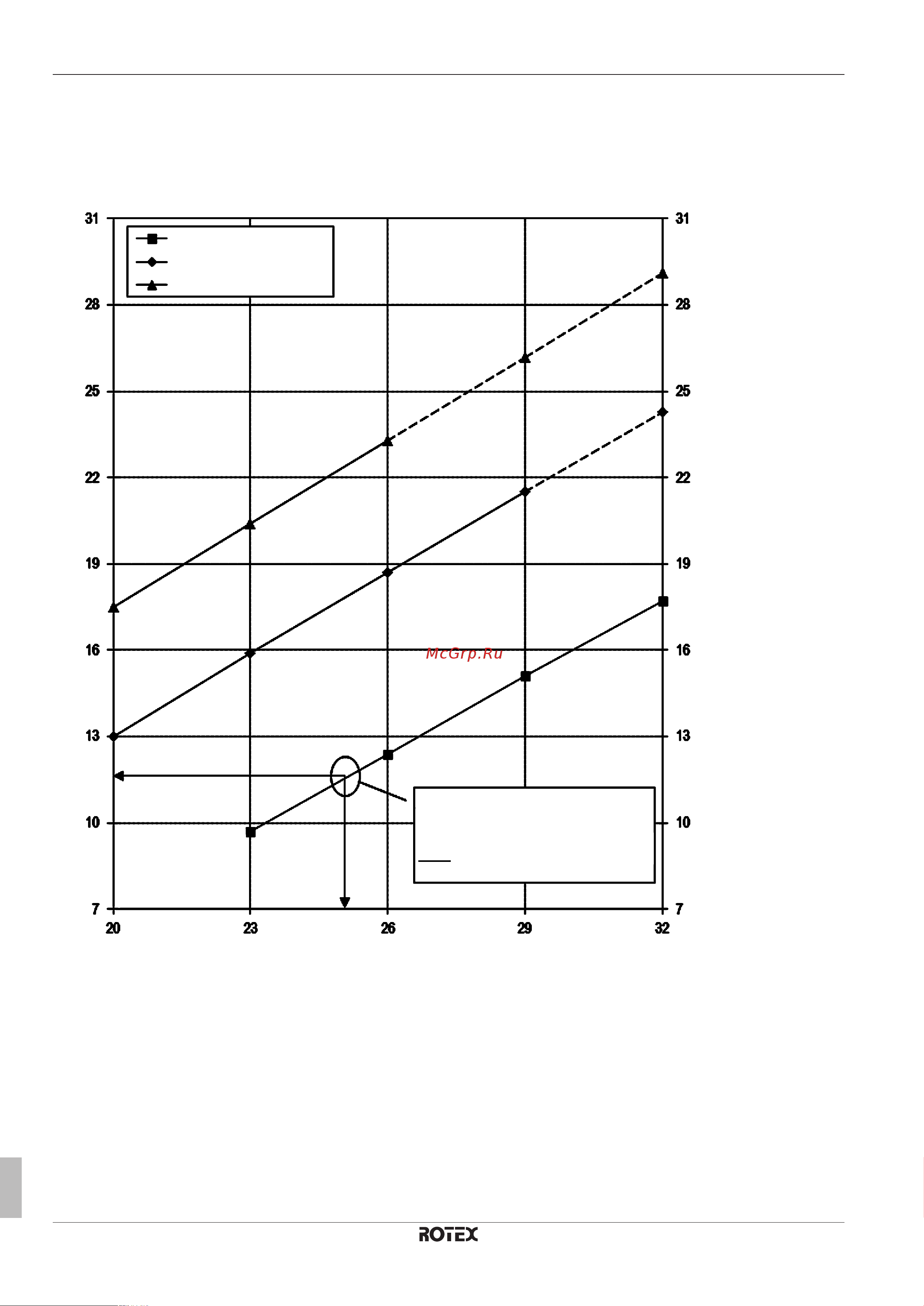

Entering water temperature limit to prevent condensation

Entering water temperature [°C]

Dry bulb temperature [°C]

Relative humidity 40%

Relative humidity 60%

Relative humidity 80%

Example:

With ambient temperature of 25°C

and relative humidity of 40%.

If entering water temperature is

below 12°C, condensation on water

piping will happen.
