14 Technical data
Installer reference guide
89
RRLQ004~008CA + RHBH/X04+08CB
ROTEX HPSU low temperature Bi‑bloc
4P384979-1B – 2016.02

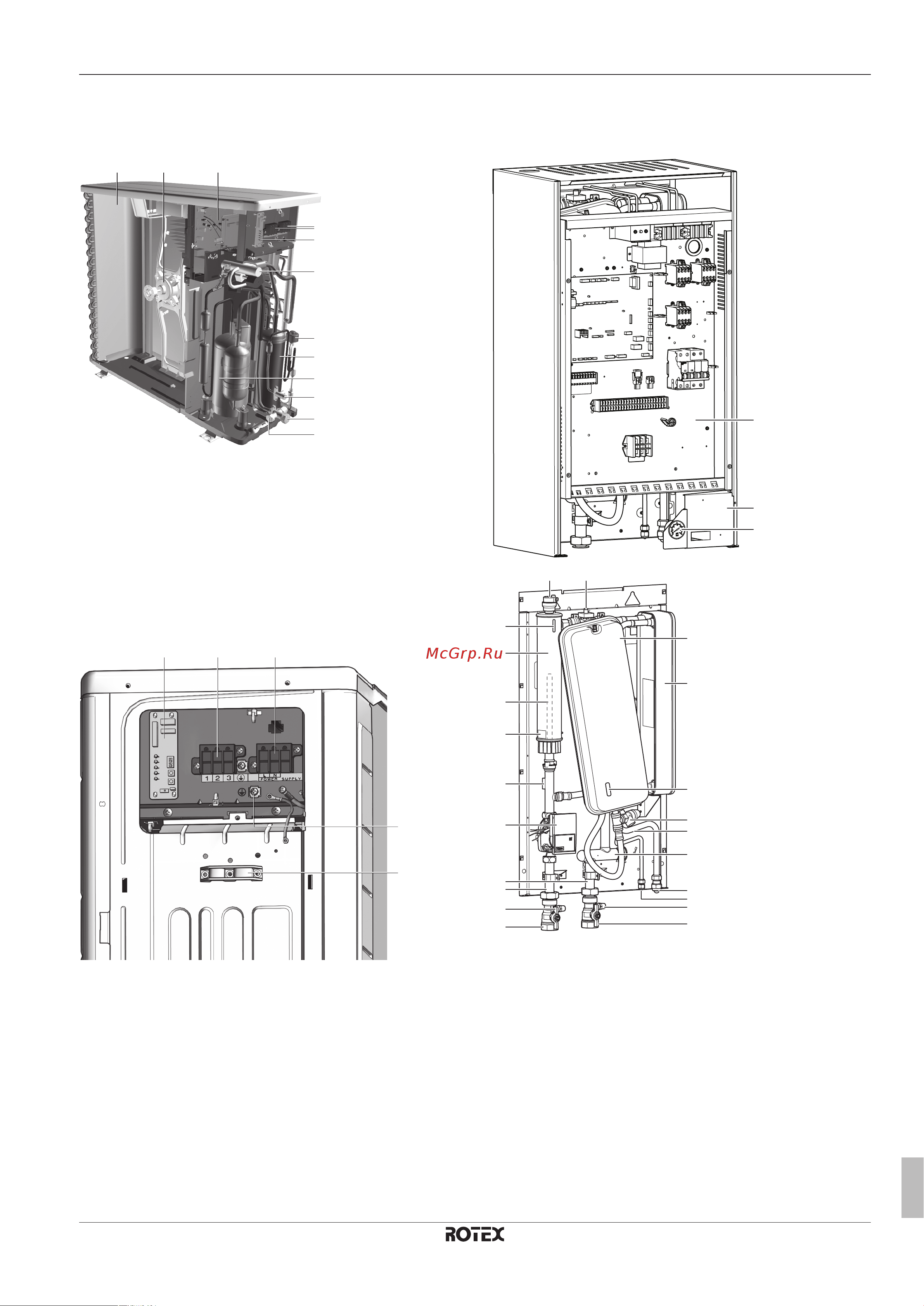

14.4 Components
14.4.1 Components: Outdoor unit
b
c
d
e
f
j
h
i
g
al k
a Switch box main PCB (inverter and control PCB)
b Terminal communication and power supply
c Service PCB
d 4-way valve
e Electronic expansion valve (main)
f Accumulator
g Compressor
h Liquid stop valve
i Gas stop valve
j Service port
k Fan motor
l Heat exchanger
14.4.2 Components: Switch box (outdoor unit)
a c
d
e
b
a Service PCB
b Terminal communication cable
c Terminal power supply cable
d Earth connection
e Wire clamp
14.4.3 Components: Indoor unit
a
b
c
e
q
s
t
r
q
h
m
p
n
o
fd
g
q
j
q
i
k
n
o
l
a Switch box
Contains the main electronic and electrical parts of the indoor unit.
b User interface (optional)
c Manometer
Allows readout of the water pressure in the water circuit.
d Air purge valve
Remaining air in the water circuit will be automatically removed via
the air purge valve.
e Expansion vessel (10l)
f Flow sensor
Gives feedback to the interface about the actual flow. Based on this
information (and other), the interface adjusts the pump speed.
g Heat exchanger
h Water pump
Circulates the water in the water circuit.
i Water filter
Removes dirt from the water to prevent damage to the pump or
blockage of the heat exchanger.
