14 Technical data
Installer reference guide
94
RRLQ004~008CA + RHBH/X04+08CB
ROTEX HPSU low temperature Bi‑bloc
4P384979-1B – 2016.02
Only for RRLQ006CAV3+RRLQ008CAV3
3TW60816-2

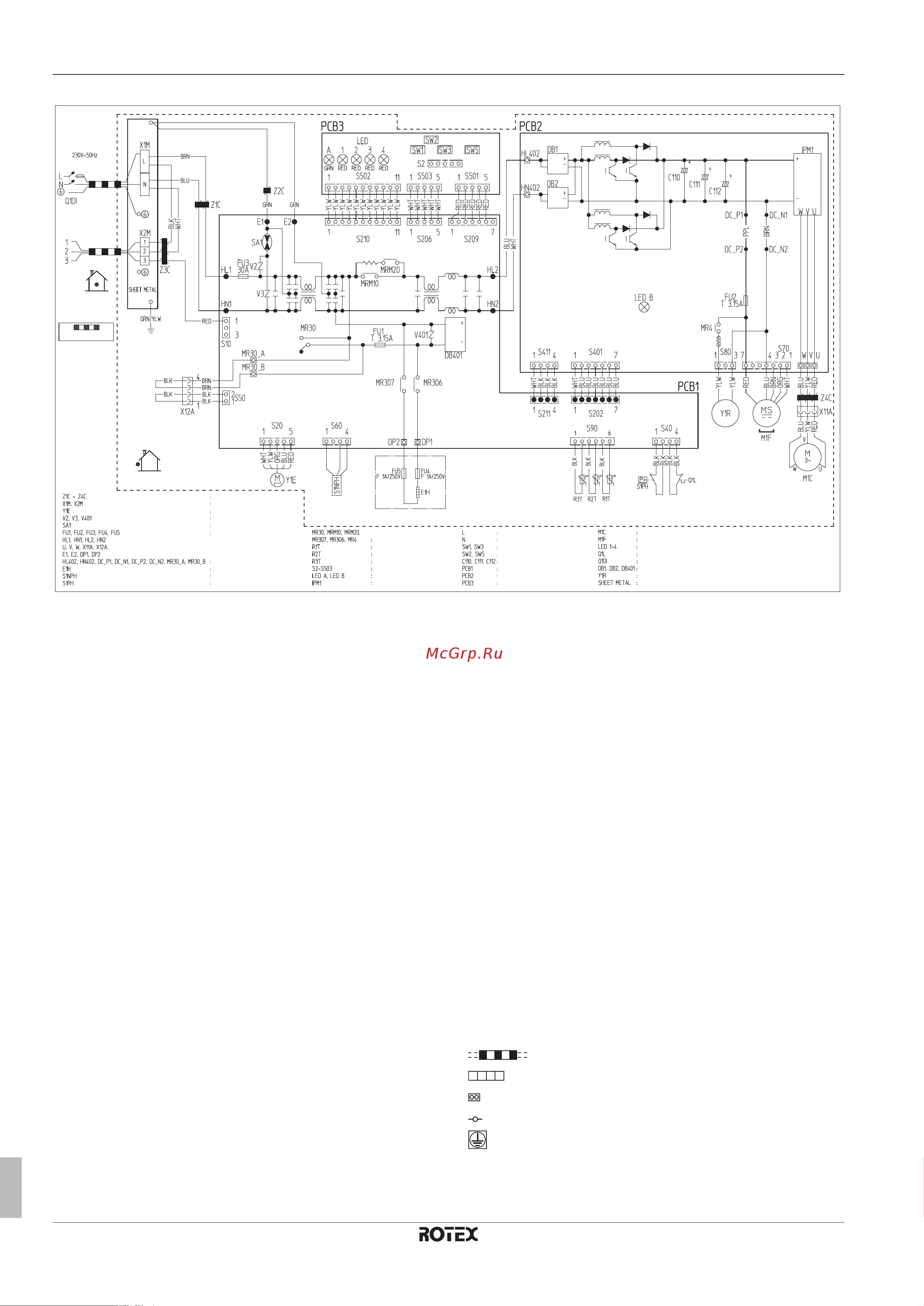

WIRING DIAGRAM
outdoor
POWER SUPPLY
TO INDOOR UNIT
FIELD WIRING
indoor
PRESSURE
SENSOR
OPTION DRAIN PAN
KIT HEATER
(HEAT
EXCHANGER)
(AIR) (DISCHARGE)
FERRITE CORE
TERMINAL STRIP
ELECTRONIC EXPANSION VALVE COIL
VARISTOR
SURGE ARRESTOR
FUSE
CONNECTOR
DRAIN PAN HEATER
PRESSURE SENSOR
PRESSURE SWITCH (HIGH)
MAGNETIC RELAY
THERMISTOR (DISCHARGE)
THERMISTOR (HEAT EXCHANGER)
THERMISTOR (AIR)
CONNECTOR
PILOT LAMP
INTERIGENT POWER MODULE
LIVE
NEUTRAL
PUSH BUTTOONS
DIP SWITCHES
CAPACITOR
PRINTED CIRCUIT BOARD (INVERTER)
PRINTED CIRCUIT BOARD (SERVICE)
PRINTED CIRCUIT BOARD (MAIN)
COMPRESSOR MOTOR
FAN MOTOR
INDICATION LAMPS
OVERLOAD PROTECTOR
EARTH LEAKAGE CIRCUIT BREAKER
REVERSING SOLENOID VALVE COIL
TERMINAL STRIP FIXED PLATE
RECTIFIER BRIDGE
NOTES:
REFER TO PURCHASING SPECIFICATION AS303002, UNLESS OTHERWISE SPECIFIED
SIZE: LENGTH 140 x WIDTH 230.
THIS DRAWING WAS DRAWN ON CAD SYSTEM
C110~C112 Capacitor
DB1, DB2, DB401 Rectifier bridge
DC_N1, DC_N2 Connector
DC_P1, DC_P2 Connector
DC_P1, DC_P2 Connector
DP1, DP2 Connector
E1, E2 Connector
E1H Drain pan heater
FU1~FU5 Fuse
HL1, HL2, HL402 Connector
HN1, HN2, HN402 Connector
IPM1 Interigent power module
L Live
LED 1~LED 4 Indication lamps
LED A, LED B Pilot lamp
M1C Compressor motor
M1F Compressor fan
MR30, MRM306,
MRM307, MR4
Magnetic relay
MRM10, MRM20 Magnetic relay
MR30_A~MR30_B Connector
N Neutral
PCB1 Printed circuit board (main)
PCB2 Printed circuit board (inverter)
PCB3 Printed circuit board (service)
Q1DI Earth leakage circuit breaker
Q1L Overload protector
R1T Thermistor (discharge)
R2T Thermistor (heat exchanger)
R3T Thermistor (air)
S1NPH Pressure sensor
S1PH High pressure switch
S2~S503 Connector
SA1 Surge arrestor
SHEET METAL Sheet metal
SW1, SW3 Push buttons
SW2, SW5 DIP switch
U Connector
V Connector
V2, V3, V401 Varistor
W Connector
X11A, X12A Connector
X1M, X2M Terminal strip
Y1E Electronic expansion valve
Y1R Reversing solenoid valve coil
Z1C~Z4C Ferrite core
Field wiring
Terminal strip
Connector
Terminal
Protective earth
BLK Black
BLU Blue
