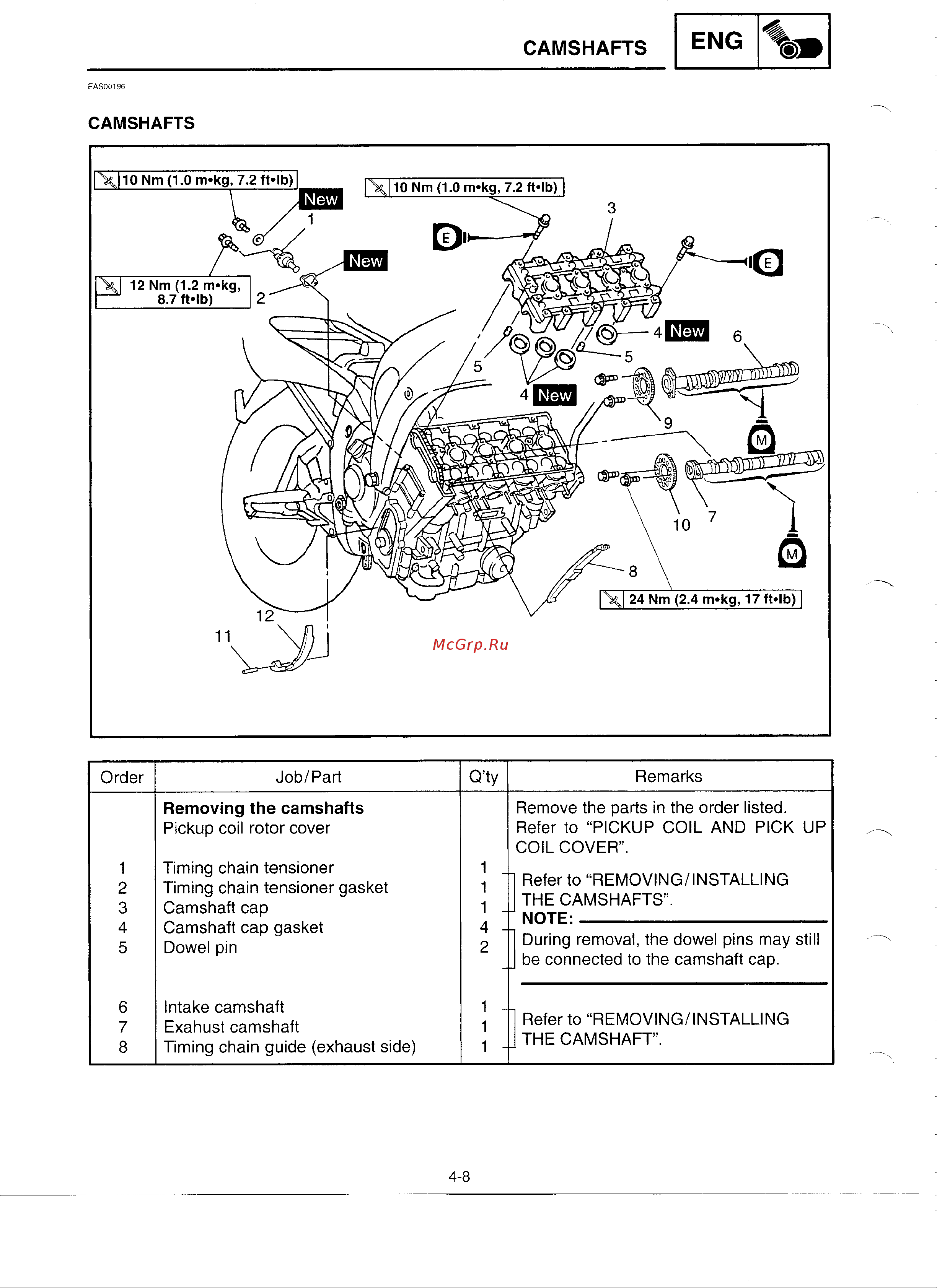

CAMSHAFTS ENG EAS00196 CAMSHAFTS Order Job Part Q ty Remarks Remove the parts in the order listed Refer to PICKUP COIL AND PICK UP COIL COVER Removing the camshafts Pickup coil rotor cover 1 2 3 4 5 Timing chain tensioner Timing chain tensioner gasket Camshaft cap Camshaft cap gasket Dowel pin 1 1 Refer to REMOVING INSTALLING 1 _ THE CAMSHAFTS NOTE4During removal the dowel pins may still 2 be connected to the camshaft cap 6 7 8 Intake camshaft Exahust camshaft Timing chain guide exhaust side 1Refer to REMOVING INSTALLING 1 J THE CAMSHAFT 1 4 8
